HBM MGCplus - Calibrating the Characteristic Curve of the Transducer

Measuring
Potentiometric transducers
MGCplus A0534-30.0 HBM: public 189

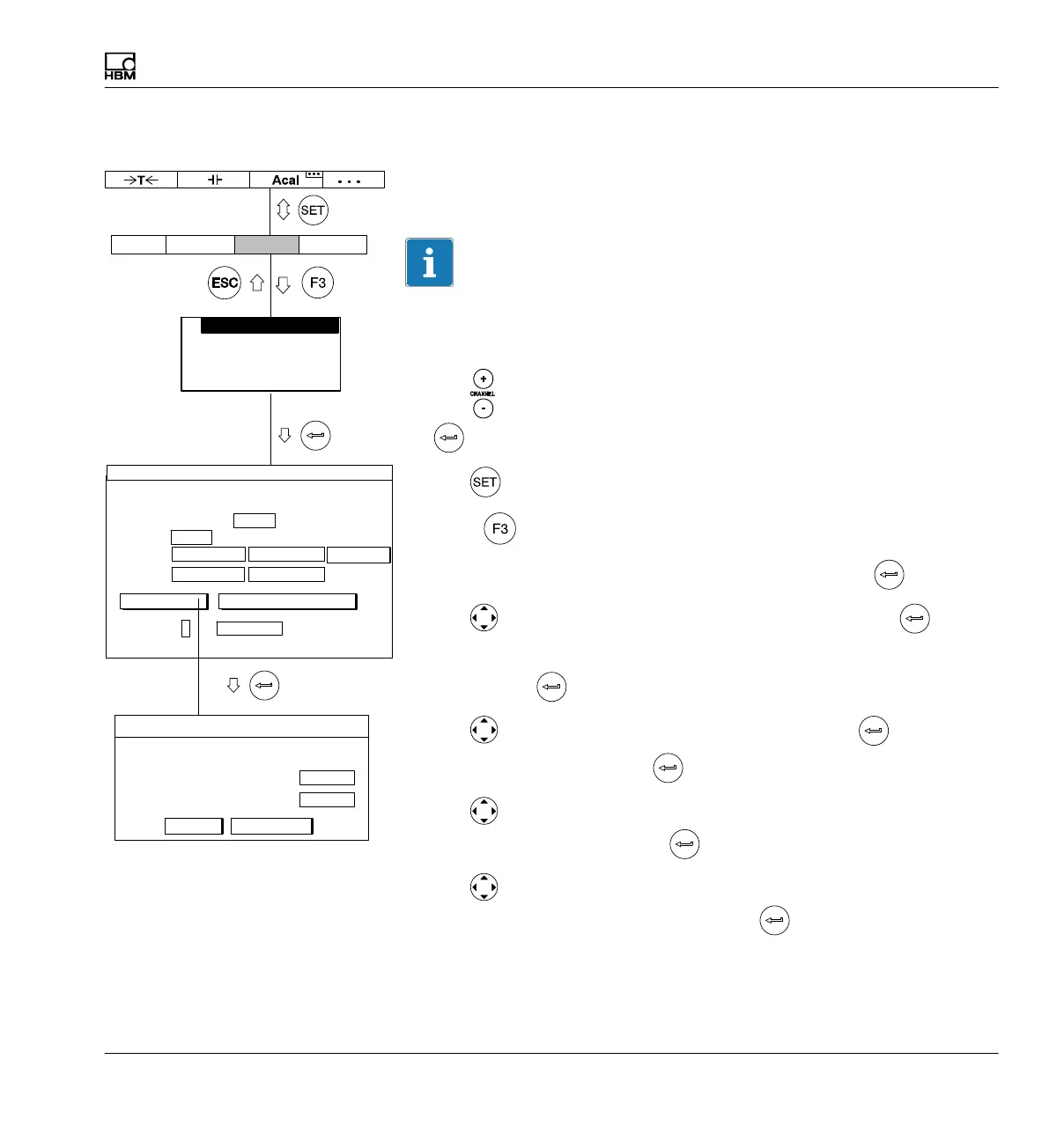

7.6.1.1 Calibrating the characteristic curve of the transducer
Transfer of the signals supplied by the transducer at a defined
deflection.
Information
If the zero point and nominal (rated) value are not changed (for example in a
recalibration), you can skip steps 1-10.
1. Use
or a direct entry to choose the desired channel (for example 3.2
).
2. Use
to switch to Setup mode.
3. Press
.
4. In the pull-up menu select Transducer and confirm with
.
5. Use
to switch to the Current feed selection field, press and
select 2.5V.
6. Confirm with
.
7. Use
to switch to the Unit selection field and press . Select mm
as the unit and confirm with
.
8. Use
to switch to the Zero point edit field and enter the value 0 in
the left edit field. Confirm with
.
9. Use
to switch to the Nominal (rated) value edit field and enter the
value 10 in the left edit field. Confirm with
.
AmplifierSystem Display Options
Transducer
Signal conditioning
Display
Analog outputs
Switch
mm
0.0000Point 1:
mV/V
0.0021
Shunt off
CancelOK
measure
7.0000Point 2 699.23
measure
Characteristic curve points
Unit:
1000.000 ...
Type Half bridge circuit or high level
Current feed
Unit: mV/V
Zero pt.:
Nom. val.:
Gage factor:
TRANSDUCER CHANNEL1
mm 
0.0000 ... 0.0000 ...
10.0000 ...
calibrate...calibrate... Adjust amplifier
0.0000 ...
2.5V
measure
