HBM MGCplus - Direct Entry of Transducer Characteristics

Measuring
Potentiometric transducers
MGCplus A0534-30.0 HBM: public 187

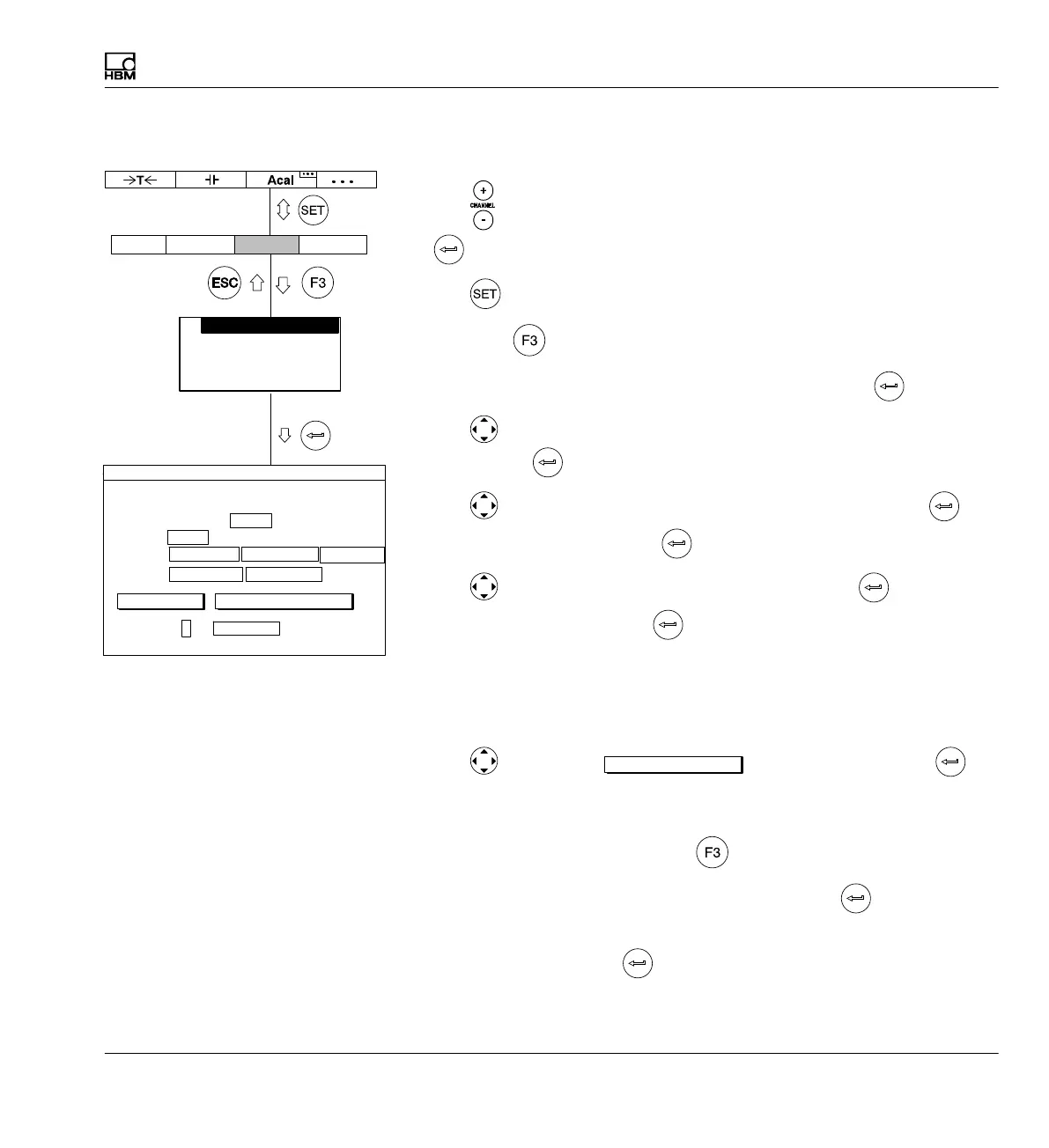

7.6.1 Direct entry of transducer characteristics
1. Use
or a direct entry to choose the desired channel (for example 3.2
).
2. Use
to switch to Setup mode.
3. Press the
function key.
4. In the pull-up menu select Transducer and confirm with
.
5. Use
to select transducer type Half bridge circuit high level and
confirm with
.
6. Use
to switch to the Current feed selection field and press .
Select 2.5V and confirm with
.
7. Use
to switch to the Unit selection field and press . Select mm
as the unit and confirm with
.
8. In both the Zero point edit fields enter the value 0.
9. In the left edit field Nominal (rated) value enter the value 10.
10. In the right edit field Nominal (rated) value enter the value 1000.
11. Use to select the
Adjust amplifier
button and confirm with . If
you do not want to make any more changes to the display or output
characteristics, you can now continue with step 16.
12. Go back to the pull-up menu with
.
13. In the pull-up menu select Display and confirm with
.
14. In the Decimal places edit field enter the desired number of decimal
places and confirm with
.
AmplifierSystem Display Options
Transducer
Signal conditioning
Display
Analog outputs
Switch
1000.000 ...
Type Full bridge circuit or high level
Current feed
Unit: mV/V
Zero pt.:
Nom. val.:
Gage factor:
TRANSDUCER CHANNEL1
mm 
0.0000 ... 0.0000 ...
10.0000 ...
calibrate...calibrate... Adjust amplifier
0.0000 ...
2.5V
measure
