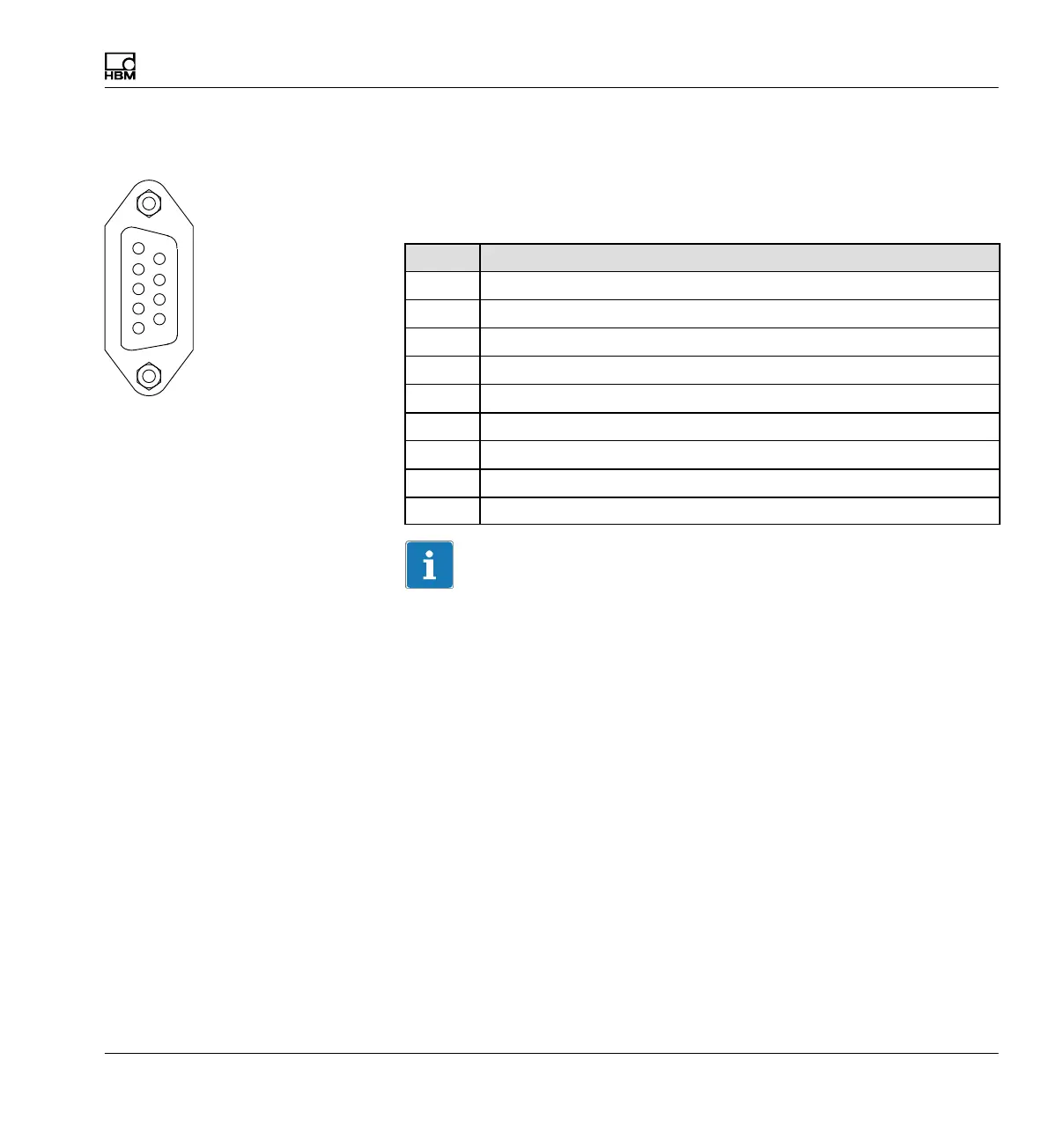

4.5.3.3 AP77
The pin assignment of the 9‐pin Sub‐D socket complies with Profibus stan
dards IEC 61158/61784.
Pin Function
1 -
2 -
3 RS485-B
4 RS485-RTS
5 GND
6 VCC
7 -
8 RS485-A
9 GND
Information
Further information can be found in the ML77B operating manual.
