Connection
Inputs and outputs, remote controls
92 A0534-30.0 HBM: public MGCplus

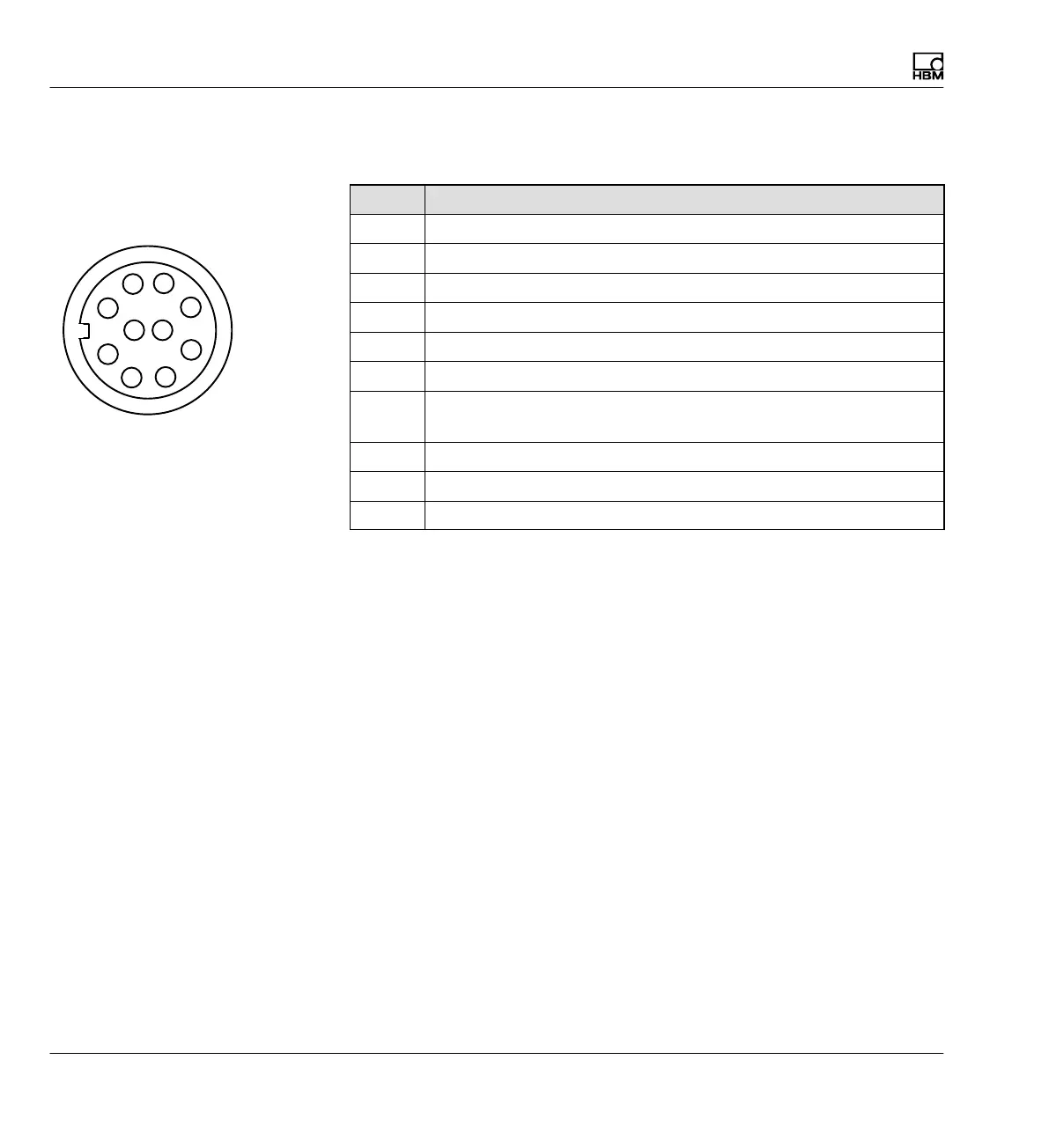

4.5.3.2 AP460i connector pin assignment
Pin Function
1 Frequency signal 1, input a
2 Frequency signal 1, input b
3 Frequency signal 2, input a
4 Frequency signal 2, input b
5 Zero index, input a
6 Zero index, input b
7 Transducer supply (0V, 5V, 8V or 16V, depending on the jumper
position
8 Transducer detection (TEDS)
9 Supply ground
10 Signal ground
Connection
Symmetrical input signals (RS 422): Input a/input b
Asymmetrical input signal, bipolar: Input a (signal ground on input b)
Asymmetrical input signal, unipolar: Input a (signal ground on pin 10, input b
must remain open)
1
2
3
4
5
67
8
910
Lemo
)
socket
(Top view)
