Connection
Connecting the MGCplus in a tabletop housing/rack frame
32 A0534-30.0 HBM: public MGCplus
4.1.2 Synchronization of multiple CP52 devices
4.1.2.1 Synchronization of multiple CP52 devices via a
synchronization jack
Connected devices are automatically detected and synchronized when syn
chronization jacks are occupied. Connect the master device with the first
slave device (Sync In, X1) via the output jack (Sync Out, X2). If there are
additional slave devices, connect the input jack (Sync In, X1) in turn with the
output jack (Sync Out, X2) of the previous slave device (Sync Out, X2).
LED Sync Out Status
Green Device is ready for operation and the time signal is
present on the Sync output.
Yellow There is no valid time signal present on the Sync out
put.
LED Sync In Status
Green The device is in slave mode, correctly synchronized
and ready for operation.
Yellow The device is in slave mode but is not synchronized.

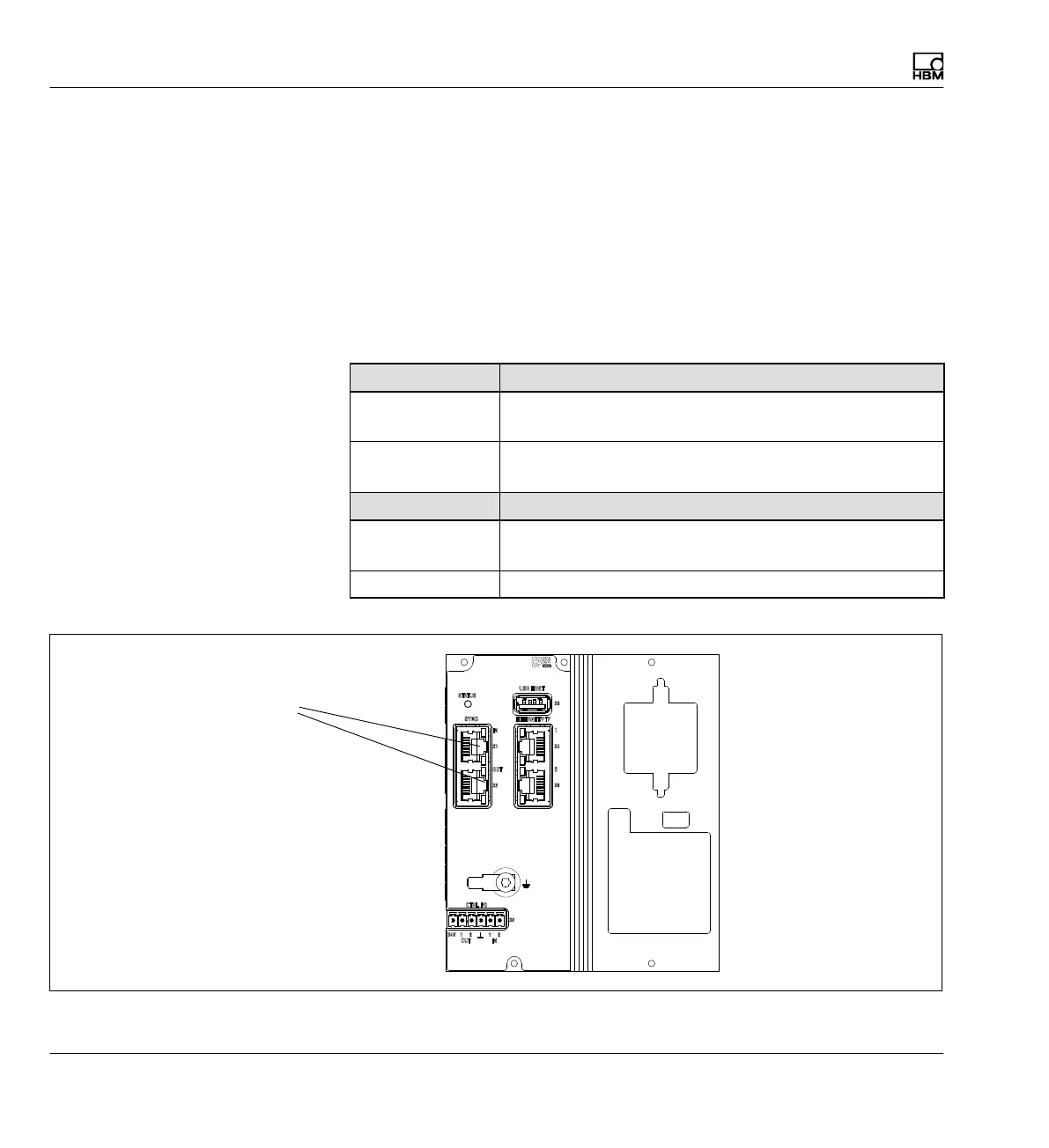

Synchronization sockets
