15. In the Step selection field select the desired step and confirm with .
Information
The step refers to the last decimal place of the display value.
Example:
Entry 10.0 Nm
 Step 1 means display jumps every 0.1 N@m
 Step 5 means display jumps every 0.5 N@m
Entry 10.000 Nm
 Step 1 means display jumps every 0.001 N@m
 Step 5 means display jumps every 0.005 N@m

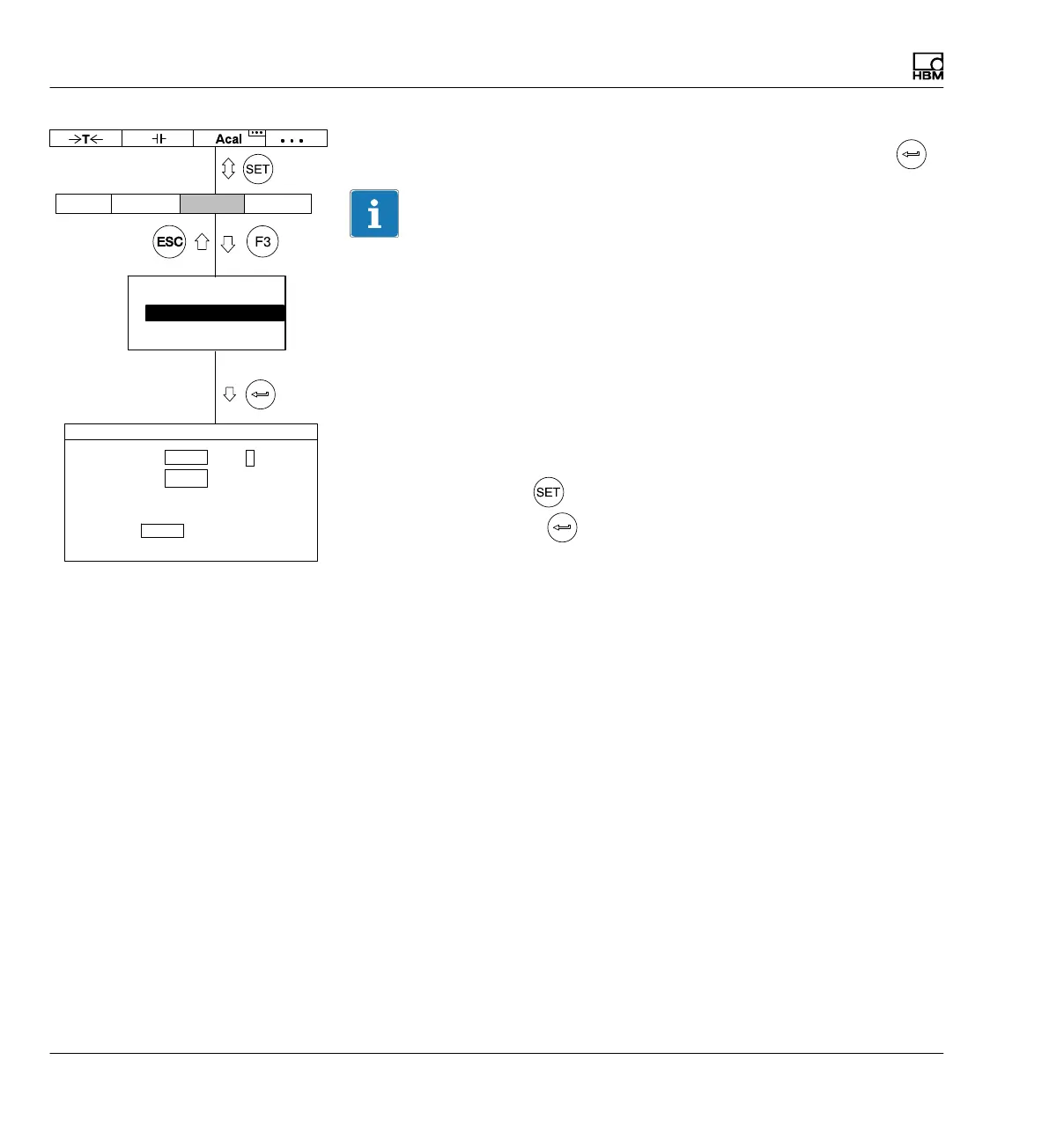

16. Use the Switch key
to go to measuring mode and confirm the con
firmation prompt with
.
Unit Abs
Decimal places
Display range from
to
Step
DISPLAY CHANNEL1
100 
10.000 V
−10.000 V
3 ...
V 
3
AmplifierSystem Display Options
Transducer
Signal conditioning
Display
Analog outputs
Switch
