Current-fed piezoelectric transducer
MGCplus A0534-30.0 HBM: public 181

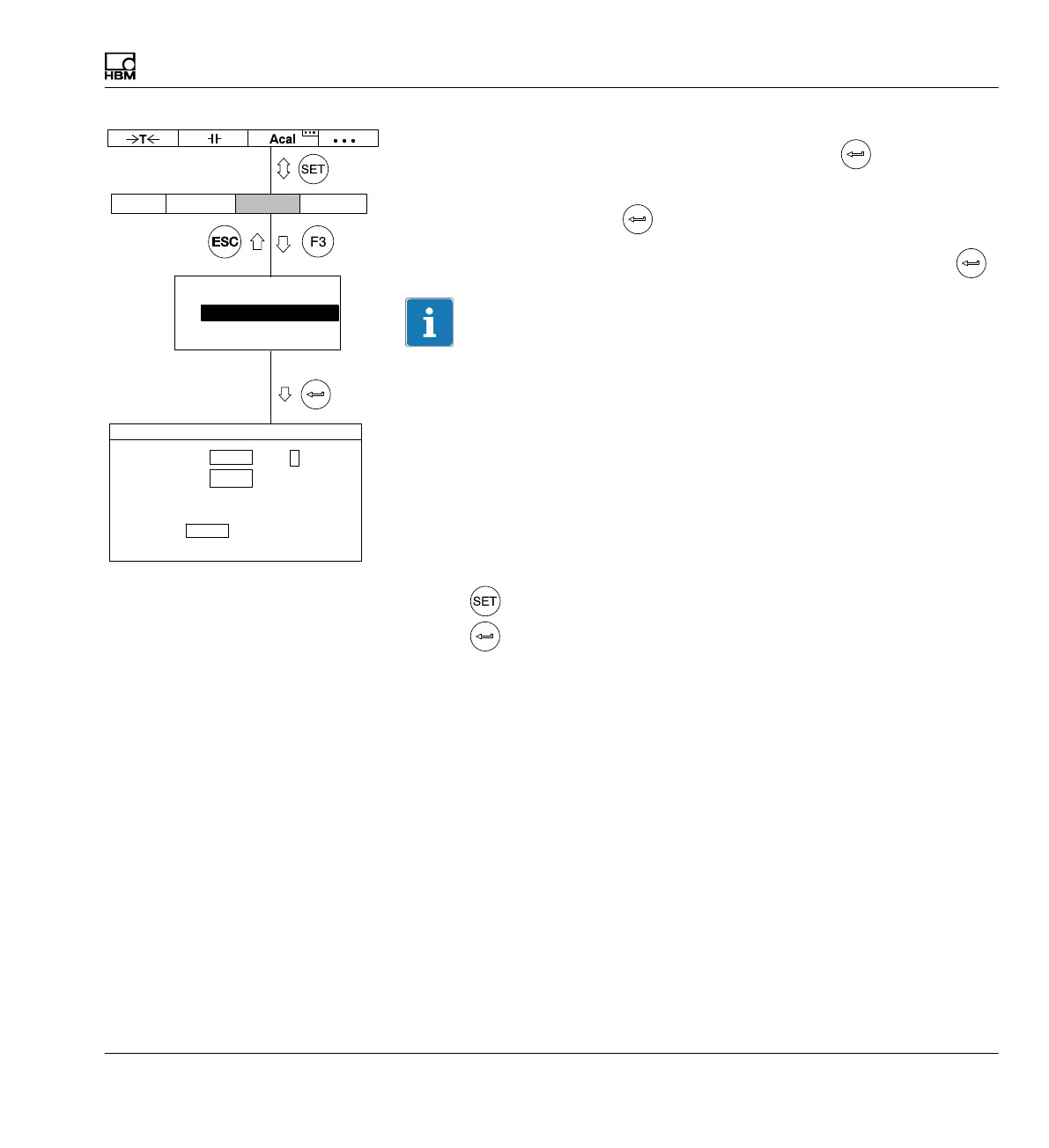

12. In the pull-up menu select Display and confirm with .
13. In the Decimal places edit field enter the desired number of decimal
places and confirm with
.
14. In the Step selection field select the desired step and confirm with
.
Information
The step refers to the last decimal place of the display value.
Example:
Entry 10.0m/s
2
 Step 1 means display jumps every 0.1 m/s
2
 Step 5 means display jumps every 0.5 m/s
2
Entry 10.000m/s
2
 Step 1 means display jumps every 0.001 m/s
2
 Step 5 means display jumps every 0.005 m/s
2
15. Use to go to measuring mode and confirm the confirmation prompt
with
.
Unit Abs
Decimal places
Display range from
to
Step
DISPLAY CHANNEL1
100 
10.000 V
−10.000 V
3 ...
V 
3
AmplifierSystem Display Options
Transducer
Signal conditioning
Display
Analog outputs
Switch
