Display
Display format
228 A0534-30.0 HBM: public MGCplus
x‐y realization
Sampling rate
Time interval of signal sampling.
Channels/signals
You can define here which channels will be realized with which signals in
the display. You can define your settings for all channels or only for certain
ones (Selection) (button symbol
define...
). You can call a maximum of
four signals one after the other per channel.
define...
Button symbol opens new window Channel/signal selection.
Sampling rate:
0 ...

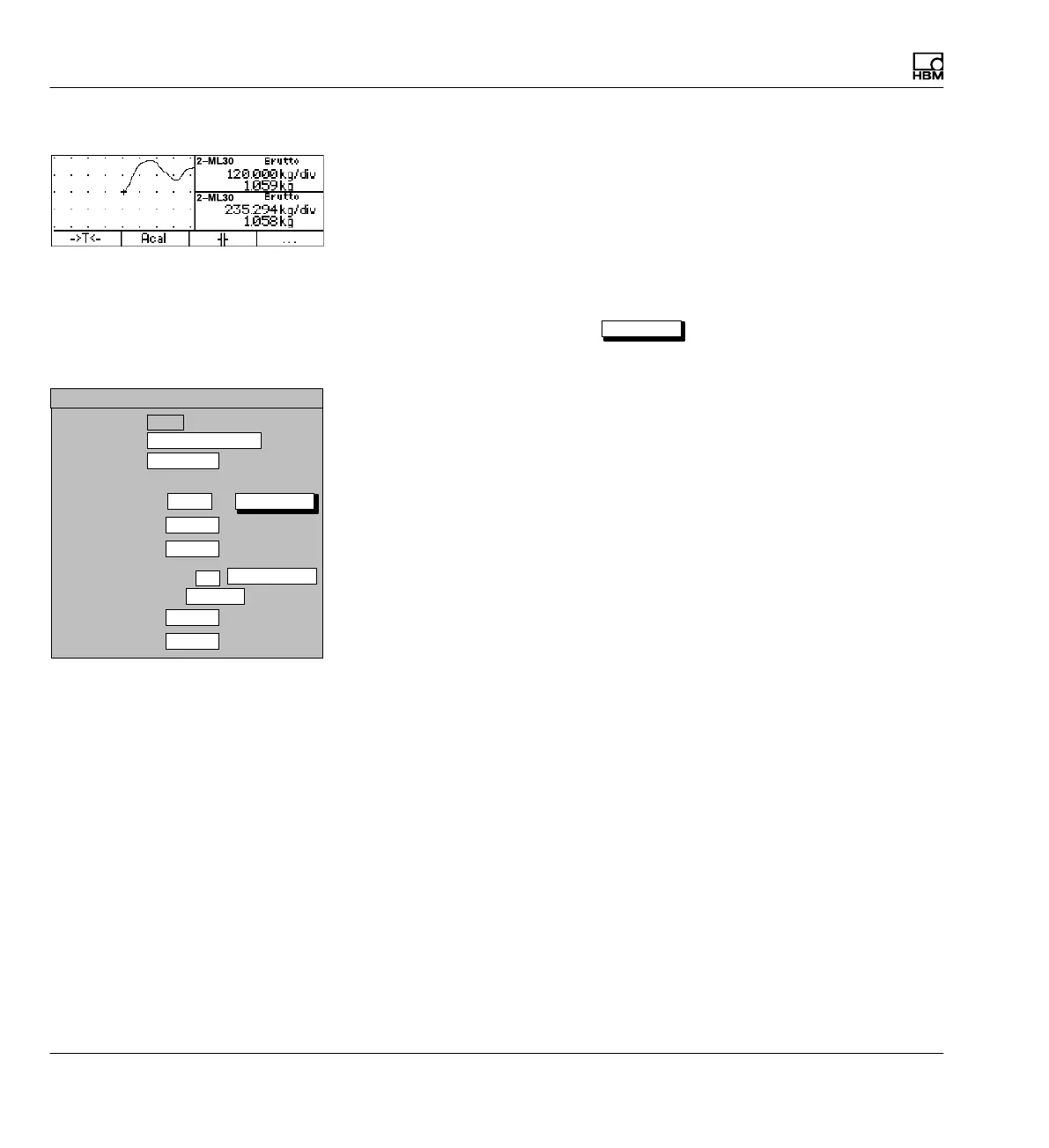

XY realization
1s
Image no.:
Image type:
Display value 2: Channel
DISPLAY FORMAT XY realization
2
Absolute
Signal
Net
Display value 1 (basic value):
Channels/signals:
All
define...
XMax
100...
%
XMin
-100...
%
YMax
100...
%
YMin
-100...
%
Image type xy realization
Setting menu
