Introduction
Installation of the CP52 communication processor
28 A0534-30.0 HBM: public MGCplus
Flat ribbon
cable
Housing
Power
supply
Interface switch

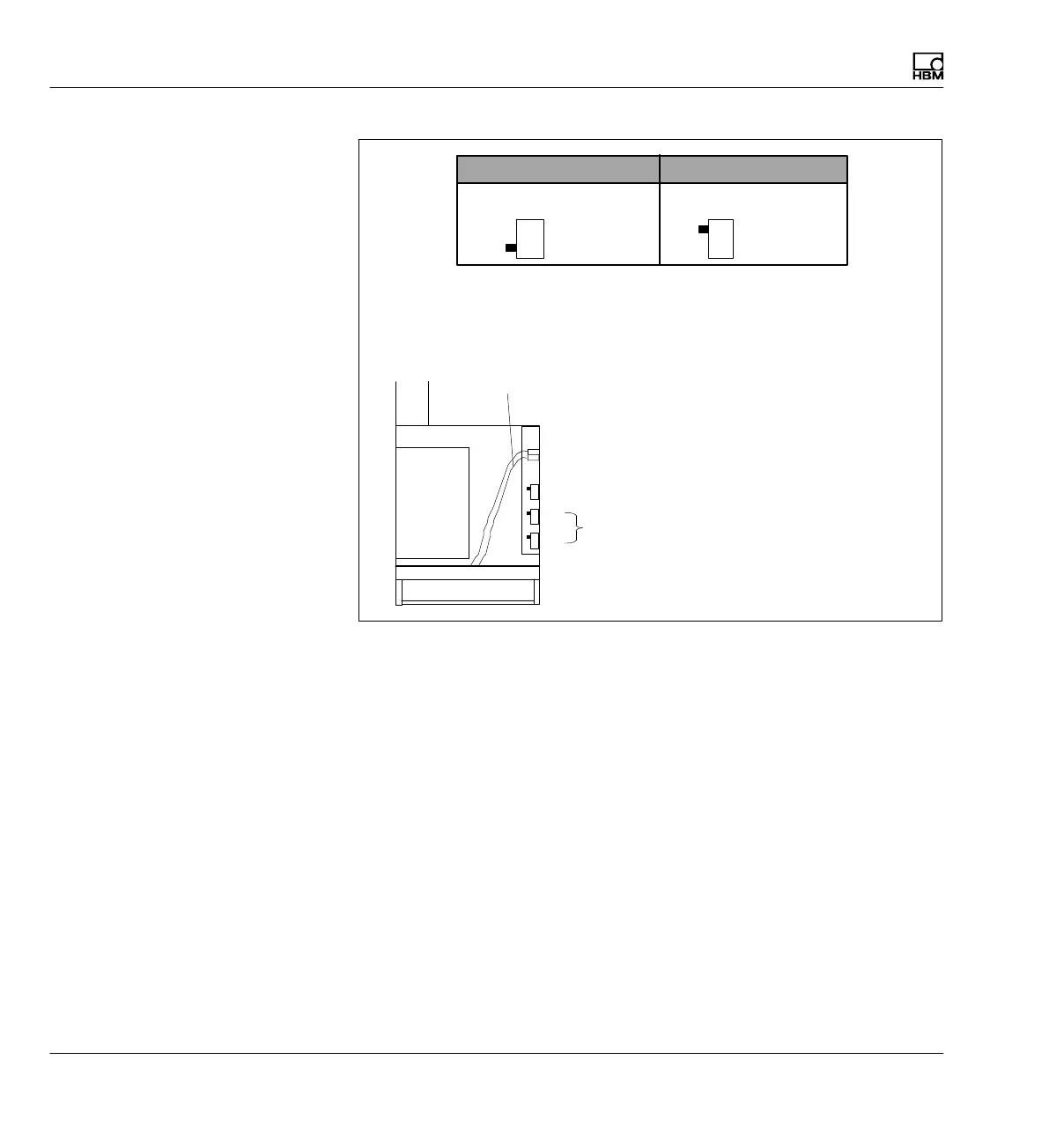

General plan of the interface switches(housing cover open, view from
above):
S1
p 2
S3
CP switch
S3
CP
yes (1)
no (2)
S3
yes (1)
no (2)
CP
Without CP … View from above With CP … View from above
Fig. 3.4 General plan of the interface switches
Due to the new functions of the CP52 communication processor, a firmware
update of the AB22A display and control unit is necessary. The firmware
update program MGCpLoad and the latest firmware are available from
www.hbm.com/downloads.
