Connection
Connection via the distributor board VT810/815i
MGCplus A0534-30.0 HBM: public 81

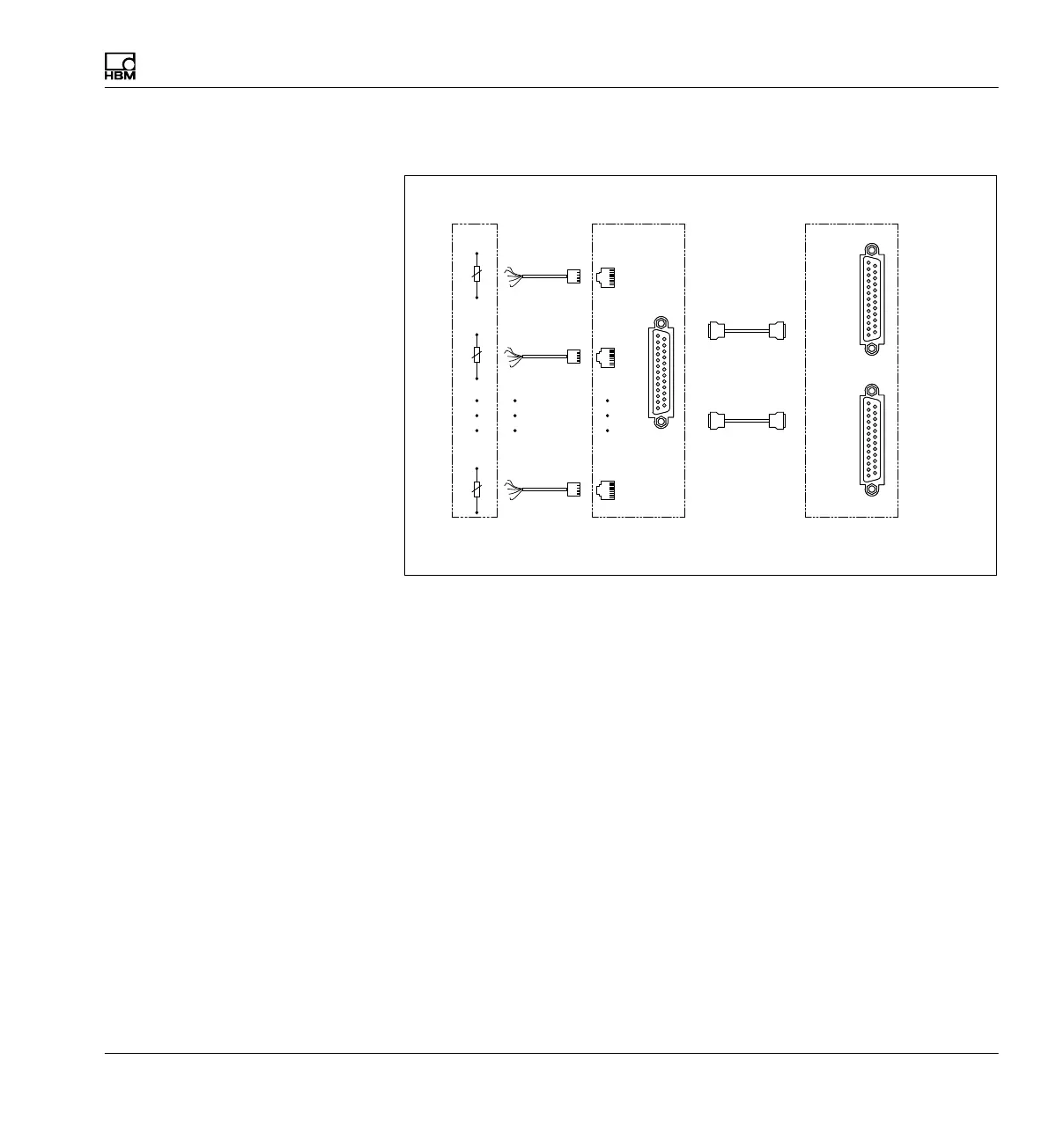

Connecting diagram
SG 1
SG 2
SG 8
Measuring point Distributor board VT810/815i Connection board AP810i/815i
RJ45
D‐Sub25
D‐Sub25
1
8
1-Kab263-3
1-Kab263-3
2
1-AP810i
1-AP815i
1-Kab156-3
1-Kab156-3
1-Kab156-3
D‐Sub25
Extensive connection instructions are enclosed with the distributor board.
