Saving Measurement Data
CSV le sample
Example of saving DATE (save date and time): ON, SET (measurement conditions) ON, PARA
(measurement parameters): ON, DELIM (delimiter): , (comma), QUOTE (quotaion mark) " (double
quotation)
"HIOKI E.E. CORPORATION","IM3536","Ver. 1.00",
"Serial No. 123456789"
"DATE","11-11-30"
"TIME","10:10:06"
"FREQ","1.0000E+03","Hz"
"V","1.000","V"
"LIMIT","OFF"
"RANGE","AUTO","10k","ohm"
"LOW Z","OFF"
"JUDGE SYNC","OFF"
"JUDGE","OFF"
"SPEED","MED"
"TRIG","INT"
"AVG","OFF"
"DELAY","0.0000","s"
"TRIG SYNC","OFF"
"DCBIAS","OFF"
"OPEN","OFF"
"SHORT","OFF"
"LOAD","OFF"
"CABLE","0","m"
"SCALE","OFF"
"Z[ohm]","OFF","PHASE[deg]","OFF"
"4.983329E+03","","0.074",""

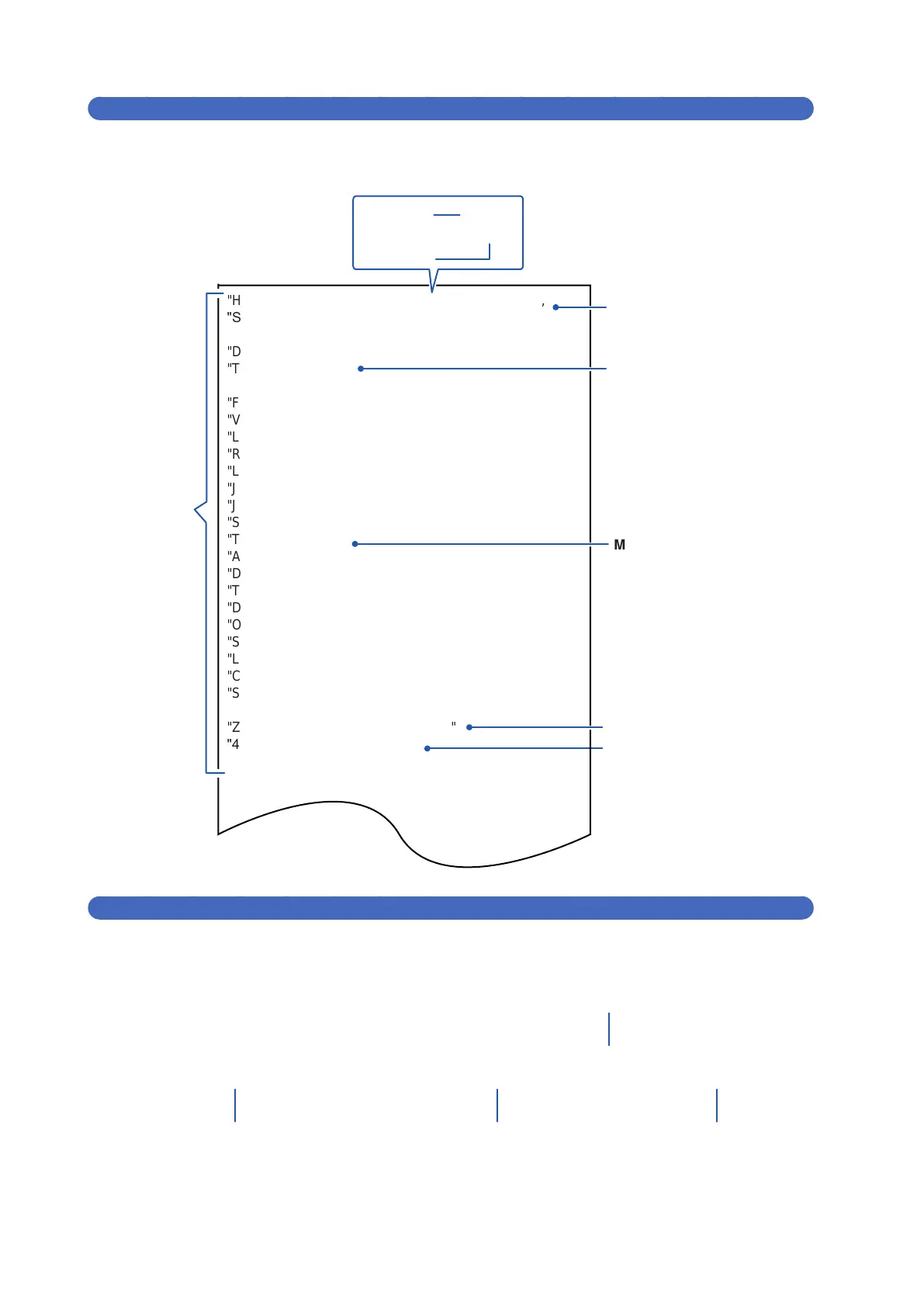

Instrument
information
Time and
date
Measurement
conditions
Measurement
parameters
Measurement
values (see below)
Header
”,”
Quotation
mark
Delimiter
How to interpret measured values
Example: No. 1 parameter: Z (impedance [
Ω
]); No. 2 parameter: OFF;
No. 3 parameter:
θ
(impedance phase angle [°]); No. 4 parameter: OFF
"4.983329E+03","","0.074",""
No. 1 parameter mea-
sured value
No. 3 parameter measured value
No. 4 parameter mea-
sured value
No. 2 parameter mea-
sured value
The No. 1 parameter is 4.983329 k
Ω
, and the No. 3 parameter is 0.074°. No measured values are
shown for the No. 4 or No. 4 parameter since they are set to OFF.
