191
General Specications
DC resistance measurement
Function
Measures DC resistance (when the measurement parameter is set to Rdc).
The measurement conditions are set separately from those for AC measurement.
(Measurement conditions: Measurement range, measurement speed, average,
judgment synchronization setting, DC delay, adjustment delay, line frequency)
Measurement signal level Fixed at 1 V
Generating accuracy ±10% of setting ±20 mV
DC bias function
Function Allows superposition of a DC voltage for measurement.
Operation mode OFF/ON
Generating range DC voltage : 0 V to 2.50 V (10 mV resolution)
When Low Z high accuracy mode: 0 V to 1 V (10 mV resolution)
Generating accuracy ±10% of setting ± (V
AC
×0.01+30 mV)
V
AC
refers to the AC signal voltage setting (V).
Default setting OFF
Residual charge protection function
Function Protects the instrument from discharge voltage in the event that it is con-
nected to a charged capacitor.
• Discharge voltage reference value:
At 400 V DC or less, 5 J or less; at 1,000 V DC or less, 0.5 J or less

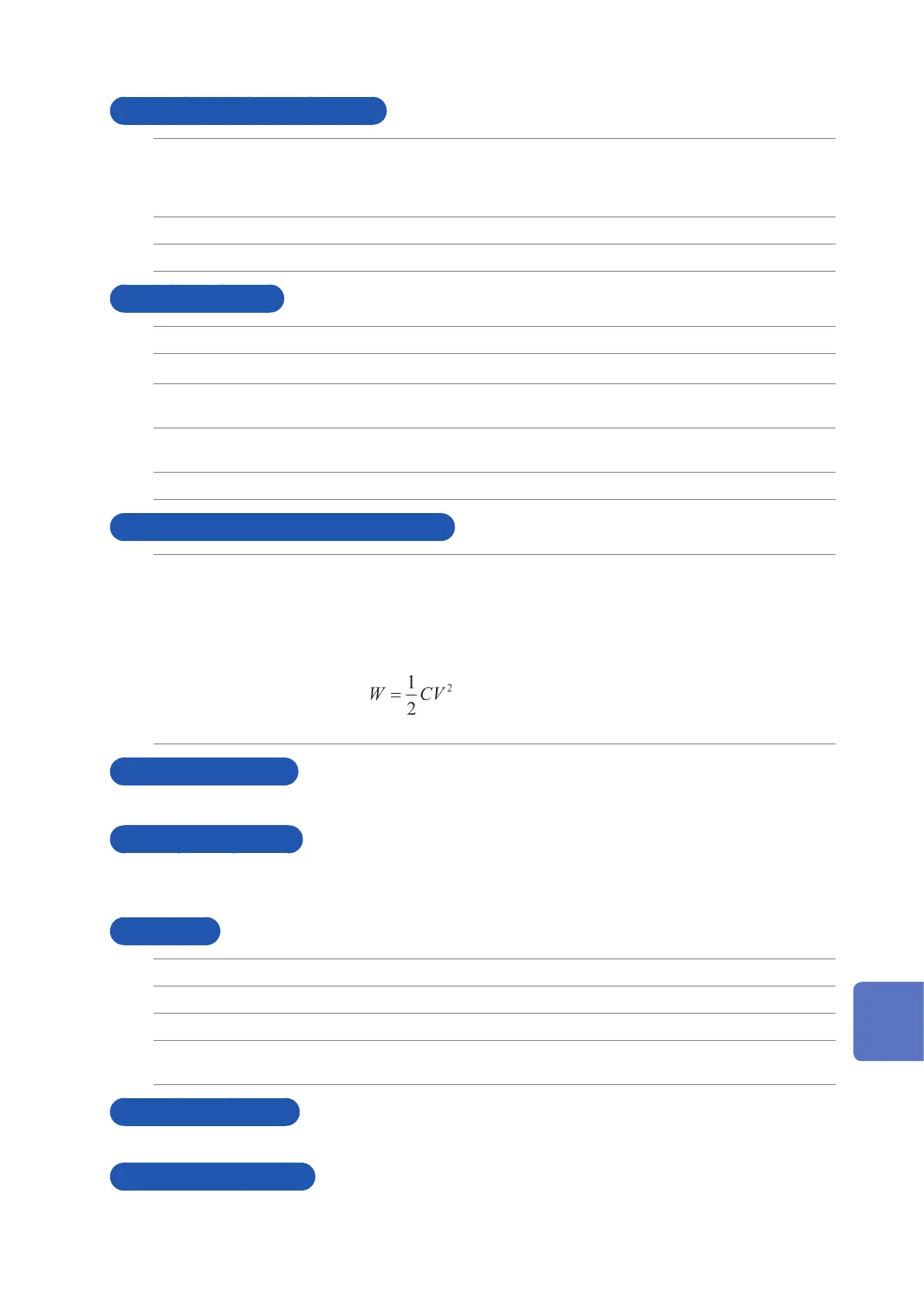

• The energy W [J] stored in capacitance C [F] at voltage V [V] can be deter-
mined using the following equation:
• See "Appx. 6 The Residual Charge Protection Function" (p. Appx.9)
Terminal structure
4-terminal pair structure
Backup battery life
Approx. 10 years (at 25°C)
Used to back up the clock and settings (lithium battery).
Accuracy
Basic accuracy Z: ±0.05% rdg.,
θ
: ±0.03° (representative value)
Guaranteed accuracy period
1 year
Warm-up time 60 minutes
Temperature and humidity
for guaranteed accuracy
0°C to 40°C (32°F to 104°F), 80% RH or less (no condensation)
Measurement time
Approx. 1 ms (measurement frequency: 1 MHz; measurement speed: FAST; no screen display)
Measurement speed
FAST, MED, SLOW, SLOW2 (Default setting: MED)
10
Specications
