23

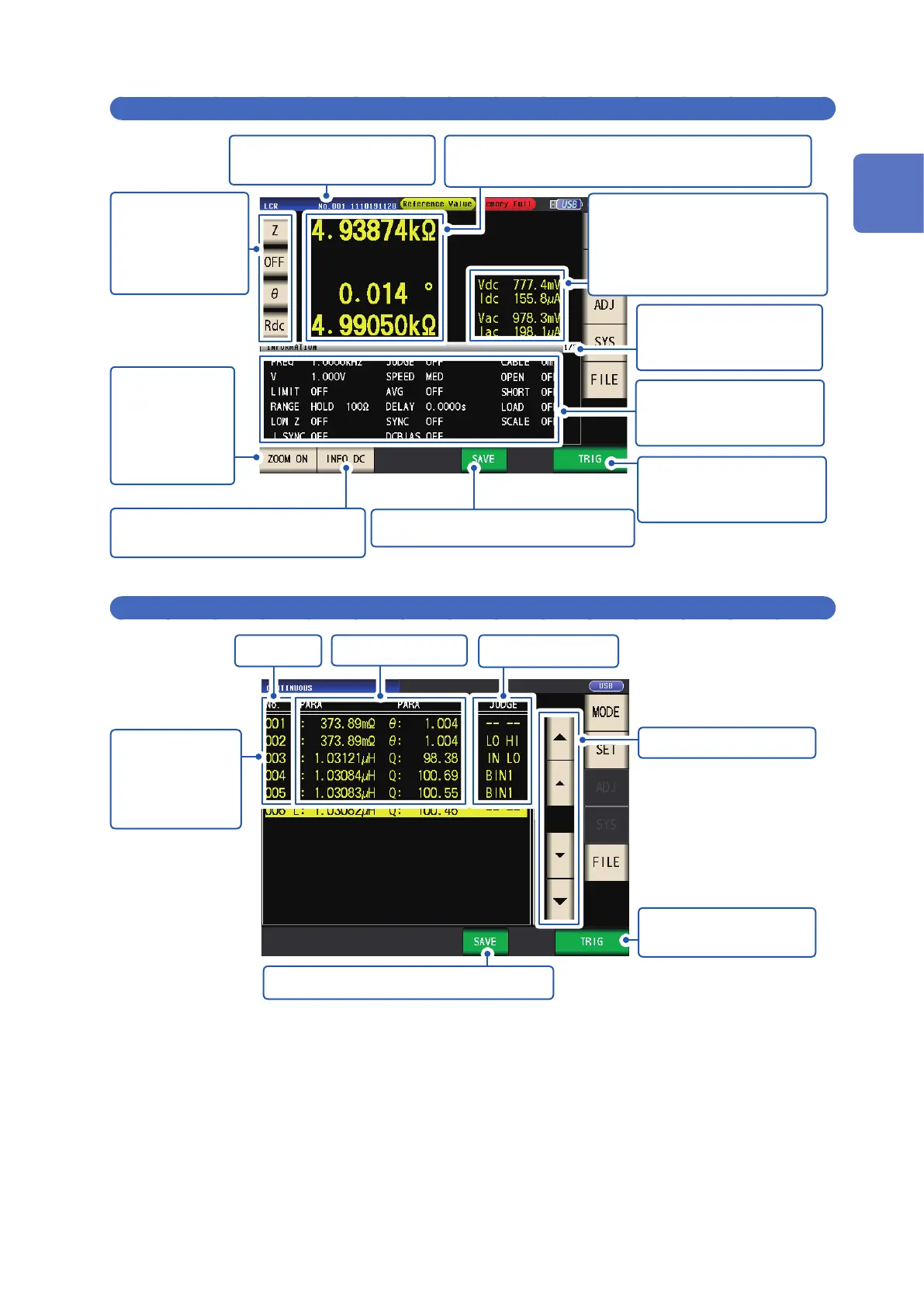

Screen Layout and Operation
Measurement screen in LCR mode
Monitor values
Vac, Vdc: Voltage between the
sample terminals
Iac, Idc: Current passing through
the sample
Displays measurement
condition settings informa-
tion. (p. 26)
Displays measurement
condition settings informa-
tion.
Indicates the name of the
loaded panel (p. 128).
Parameter keys
Sets which param-
eters to display on
the measurement
screen (p. 39).
Measured values*
Displays measured values for various parameters.
Enlarges the
display of mea-
sured values
and comparator
judgment results.
(p. 42)
Switches measurement condition set-
tings information (p. 26).
Saves the measurement data (p. 143).
When the external trigger is
selected, activates the trigger
manually.(p. 63)
*How to view measured values: See “3.2 Viewing Measured Values” (p. 41).
Measurement screen in continuous measurement mode
Panel No. Measured value
*
Judgment result
*
Scrolls the screen.
Displays a list of
the panels being
used to perform
continuous mea-
surement.
Saves the measurement data (p. 143).
Starts continuous mea-
surement (p. 94).
*How to view measured value and judgment result: See “4.3 Checking Continuous Measurement Results” (p. 94).
