62
Setting Measurement Conditions (basic settings)

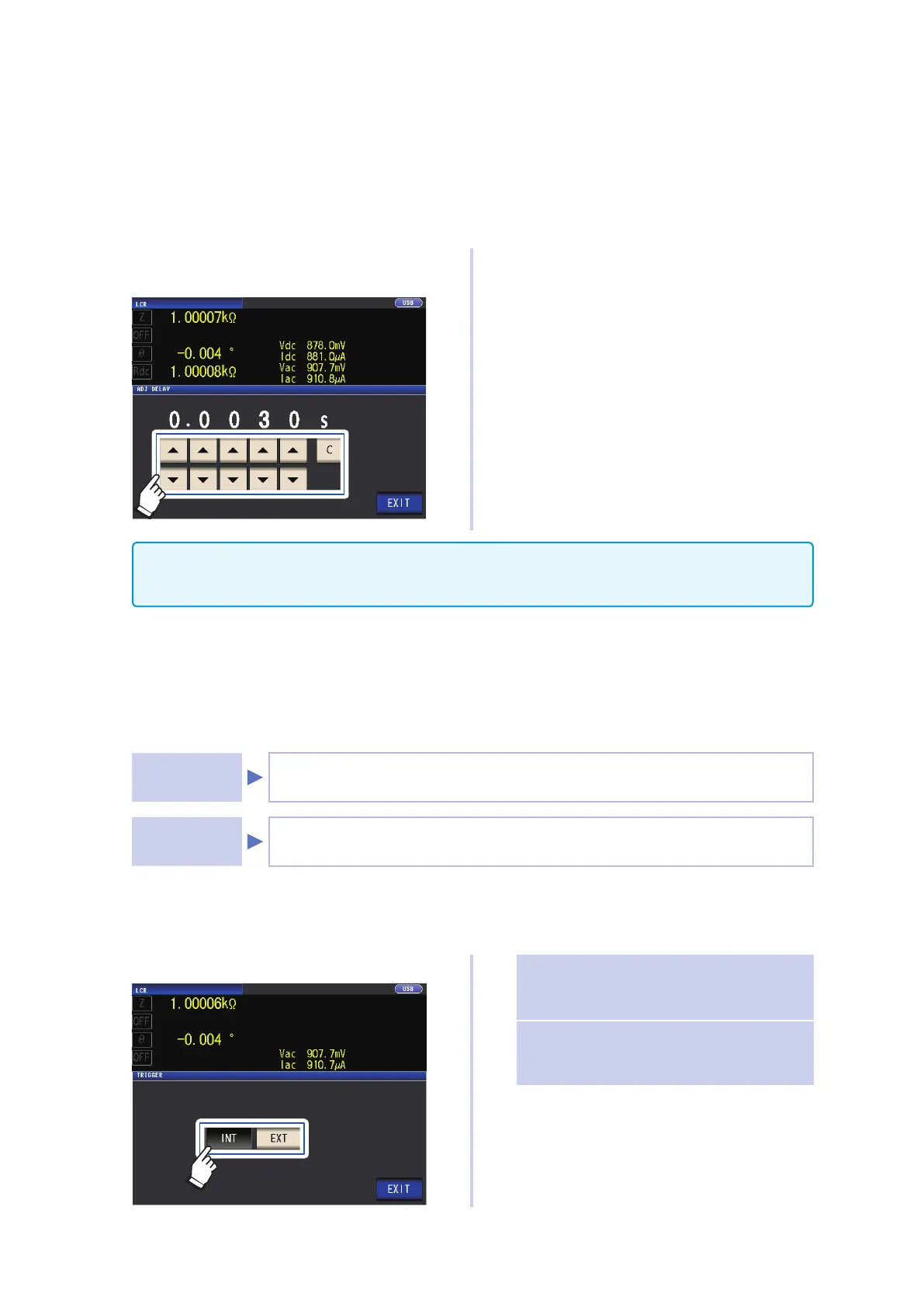

Adjustment delay (setting the offset measurement delay time) (DC)
This delay time serves to delay measurement until offset measurement (0 V DC) stabilizes.
For more information about adjustment delay timing, see the gures in "Measurement and data
acquisition timing" (p. 65).
Screen display method (For more information, see p. 24.):
(Measurement screen) SET key>(SET screen) Rdc tab>ADJ DELAY key
1
Change the adjustment delay time with
the  keys.
Settable range: 0.0030 s to 9.9999 s
To revert the setting to the default value,
touch the C key.
(The set time is set to 0.0030 s.)
2
Touch the EXIT key twice.
Displays the measurement screen.
The time required until the DC signal level stabilizes differs depending on the test sample to be measured.
To ensure measurement is performed accurately, observe the measurement waveform in advance and then
set the delay time required until the DC signal level stabilizes.
Trigger (perform measurements with user-dened timing) (Common)
Trigger functionality allows you to start and stop recording based on a particular signal.
When recording is started or stopped by a specic signal, we say the trigger is "gapplied" or "trig-
gering occurs".
With this instrument, you can select the following two types of trigger.
Internal
Trigger
Generates the trigger signal internally and repeats measurement automatically.
External
trigger
Accepts input of signals and commands from an external source to control measure-
ment. You can also apply the trigger manually on the instrument’s screen.
This setting applies to both AC and DC measurement.
Screen display method (For more information, see p. 24.):
(Measurement screen) SET key>(SET screen) BASIC tab>TRIG key
1
Select the trigger type.
INT Internal trigger
Automatically repeats measure-
ment.
EXT External trigger
Input the trigger manually via EXT I/
O or from the interface.
2
Touch the EXIT key twice.
Displays the measurement screen.
