17

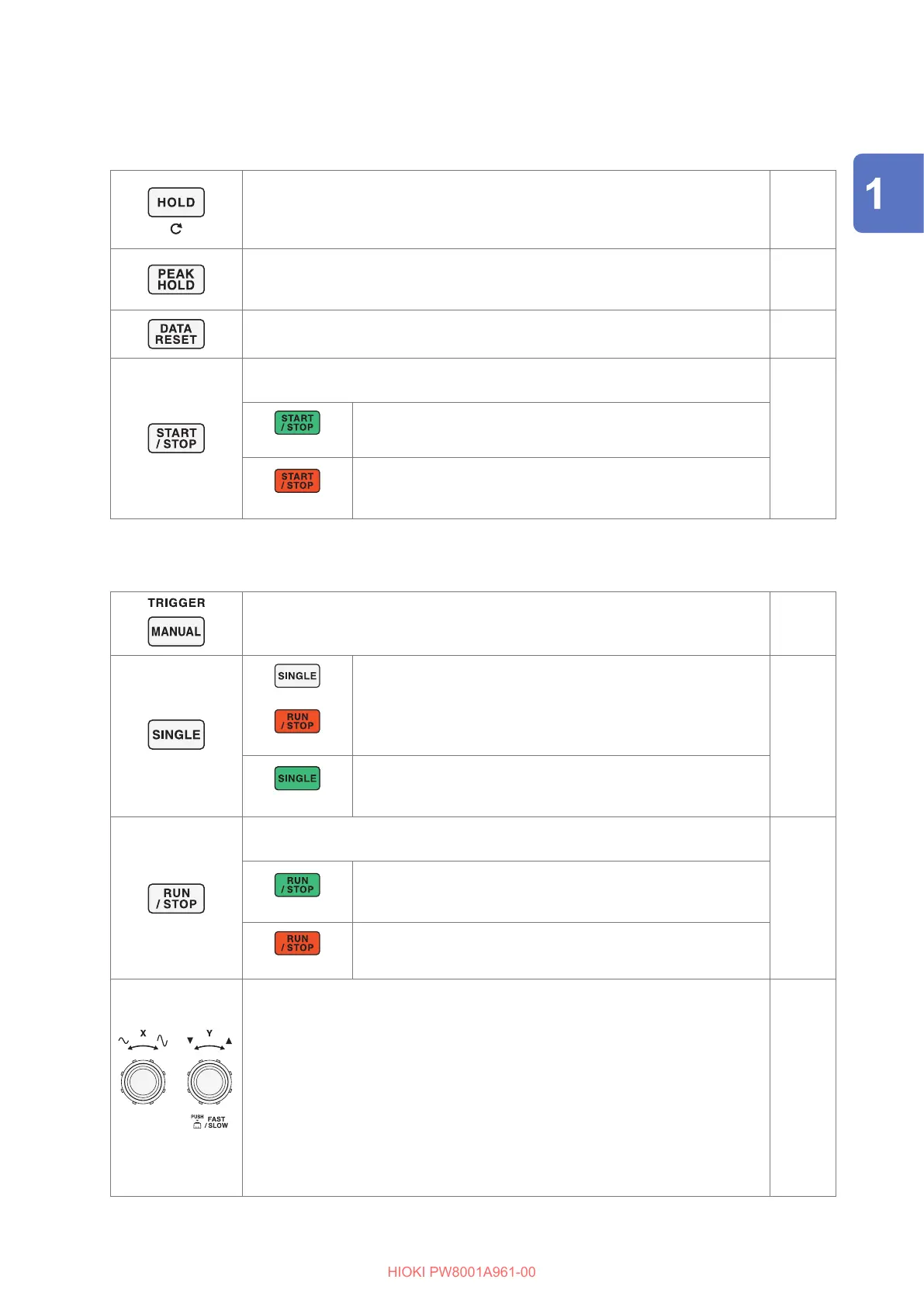

Part Names and Functions
Measurement control keys
The measurement control keys function primarily to control power measurement functions. They do not aect the
waveform display.
Turns the hold function on and o. The key is lit up when the hold function is
enabled.
Pressing the HOLD key while the peak hold function is enabled will clear the peak
hold data.
p. 107
The key is lit up when the peak hold function is enabled.
Pressing the PEAK HOLD key while the hold function is enabled will refresh the
hold data.
p. 109
Resets integrated data.
This key functions for the channels in which the integration is stopped.
p. 66
Controls starting and stopping of the integration and auto-save operation. The key
does not lights up when the each wiring-conguration integration is enabled.
p. 66
(Lit up in green)
Integration or auto-save operation is in progress.
(Lit up in red)
Integration or auto-save operation is stopped.
If the DATA RESET key is pressed, the START/STOP key light
turns o.
Waveform control keys (rotary knobs)
The waveform control keys function primarily to control waveform capture.
Forcibly applies a trigger while the instrument is waiting for a trigger (manual
trigger).
The trigger is applied when the key is pressed, causing recording to start.
p. 100
(O)
(Lit up in red)
Recording will stop once data has been recorded for the
recording length.
Pressing the RUN/STOP key while the instrument is in the
standby state will cause recording to stop.
p. 102
(Lit up in green)
If the key is pressed, the key lights up in green and the instrument
enters the trigger standby state. If the trigger is applied, the
waveforms are recorded only once and the key light turns o.
Enables waveforms to be recorded continuously.
The key lights up in green when pressed and then turns red when pressed again.
p. 95
(Lit up in green)
The instrument is in the trigger standby state.
Recording will start when the trigger is applied.
The instrument will enter the trigger standby state repeatedly.
(Lit up in green)
Recording will stop.
Rotary knobs
The rotary knobs function primarily to zoom waveforms in or out and to change the
position or cursor.
They are also used to set the parameters whose numerical value will increase or
decrease.
When you tap the button you wish to use on the screen, the corresponding rotary
knob lights up.
Some items can be changed using the Y rotary knob. Pressing the Y rotary knob
toggles between green and red lights, allowing you to change increments.
Tapping the original key again will turn the rotary knob light o.
When its light stays out, the knob does not work.
p. 97
