D1-N Series Servo Drive User Manual Tuning
HIWIN MIKROSYSTEM Corp. 6-13

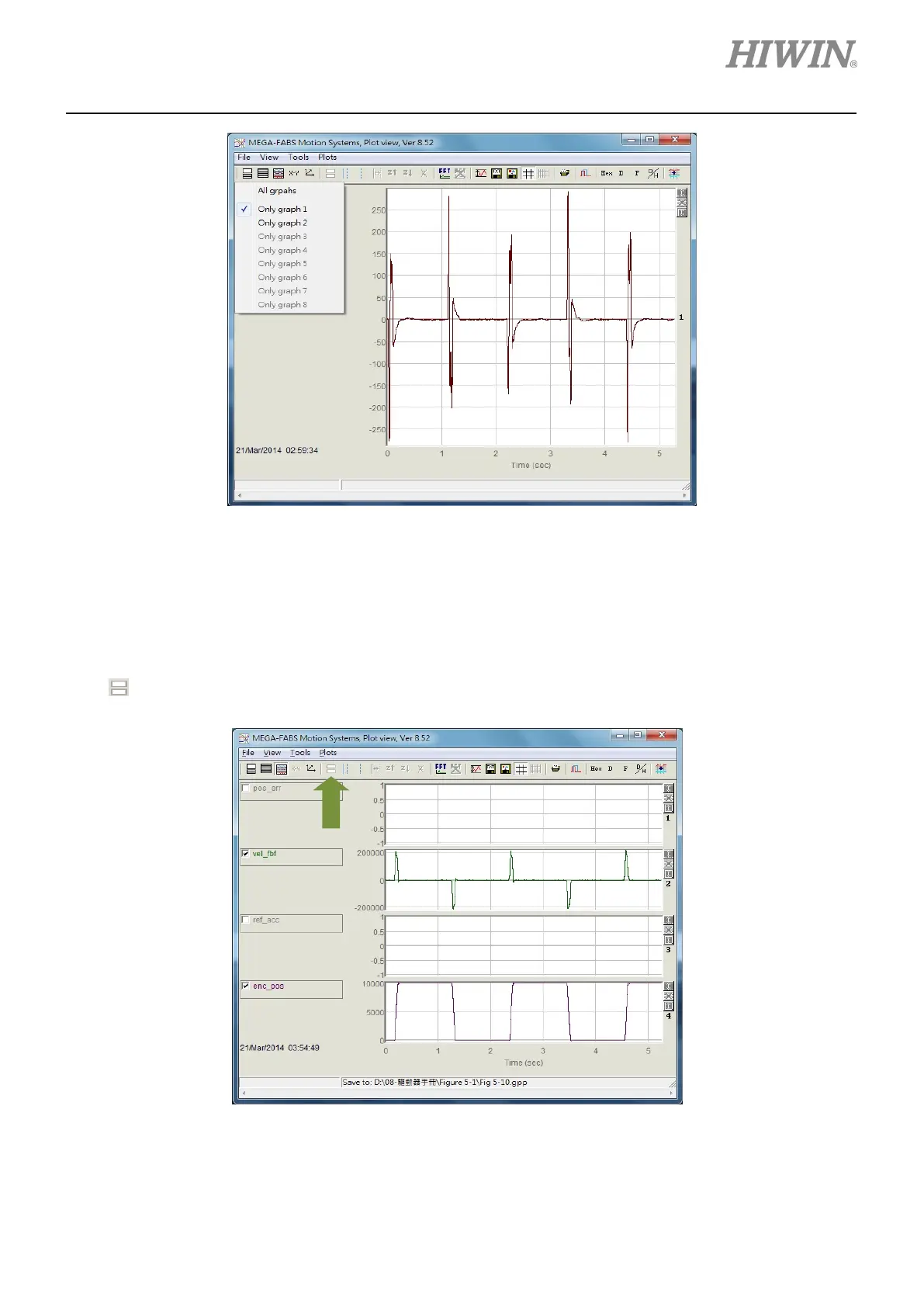

Figure 6.5.1.1
Show or hide physical quantities
Uncheck the checkbox of physical quantity to hide the graph of that physical quantity. For instance,
in figure 6.5.1.2, the checkboxes of pos_err and ref_acc are unchecked. Icon in Plot view window
is described as below.
-
: Click on this icon or press Delete key to hide all physical quantities.
Figure 6.5.1.2
