D1-N Series Servo Drive User Manual Tuning
6-14 HIWIN MIKROSYSTEM Corp.
MD17UE01-1906
 Zoom in and zoom out functions
Plot view window allows users to zoom in and zoom out on X axis and Y axis. If users would like to
observe a certain segment of a graph, they can use reference lines to select the desired segment.
Icons on toolbar are described as below.
-
: Zoom in on the segment selected by reference lines on X axis.
-
: Undo zoom in function.
-
: Redo zoom in function.
-
: Cancel zoom in function.
-
: Zoom in on the segment selected by reference lines on Y axis.
-
: Cancel zoom in function on Y axis.
 Zoom in or zoom out on X axis

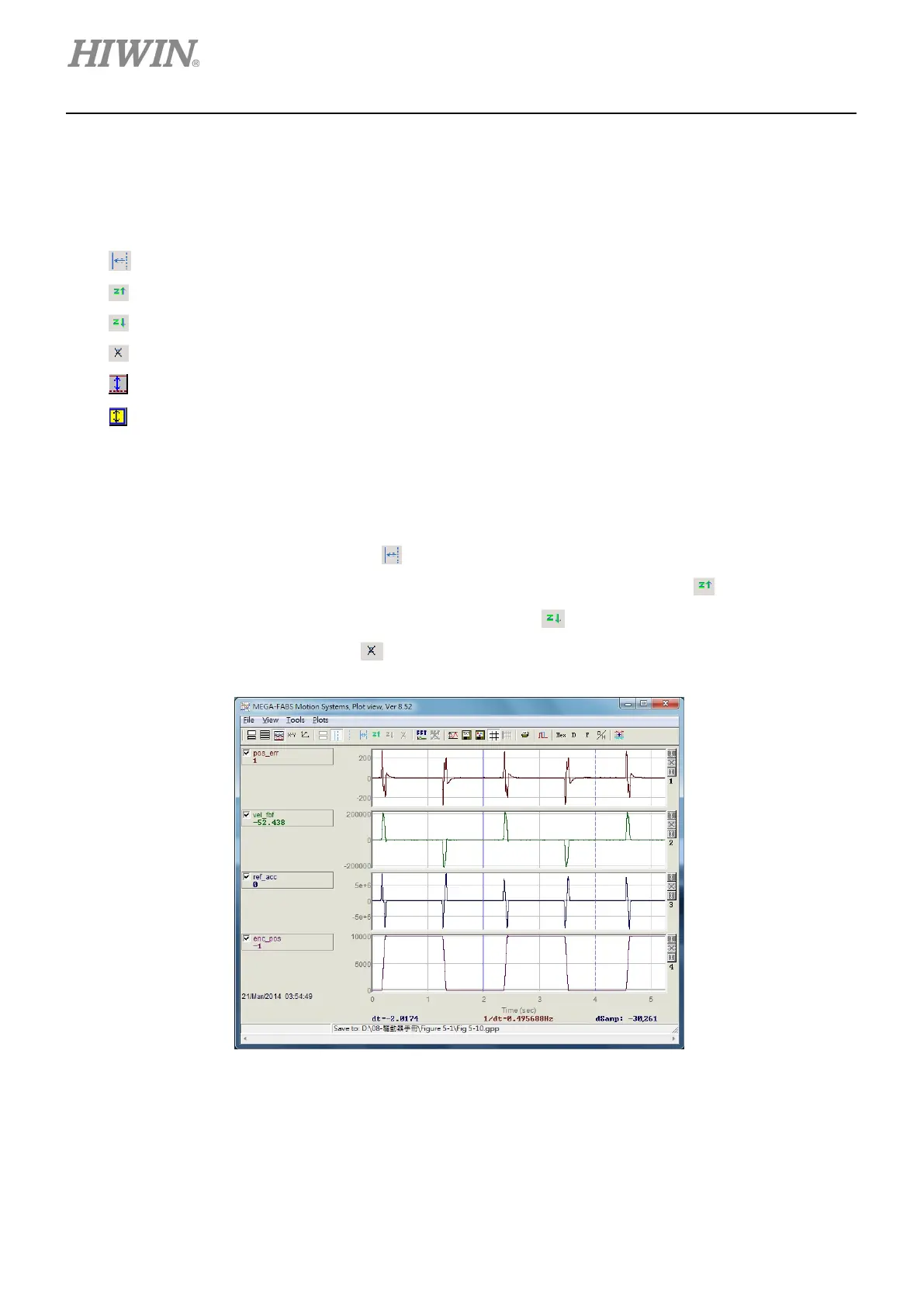

As figure 6.5.1.3, if users would like to zoom in on the segment between 2 seconds and 4 seconds,
users can left click and right click on the graph to show two reference lines (blue line and blue dotted
line) to select this segment. Click on
to zoom in, as figure 6.5.1.4. Repeat the above steps to see
more closely on the segment between 2 seconds and 3 seconds. Click on
to go back to the
segment between 2 seconds and 4 seconds. Click on
to return to the segment between 2
seconds and 3 seconds. Click on
to return to the original graph, as figure 6.5.1.3.
Figure 6.5.1.3
