Hiwin D1-N Series User Manual

D1-N Series Servo Drive User Manual Tuning
HIWIN MIKROSYSTEM Corp. 6-15
MD17UE01-1906
Figure 6.5.1.4
 Zoom in or zoom out on Y axis

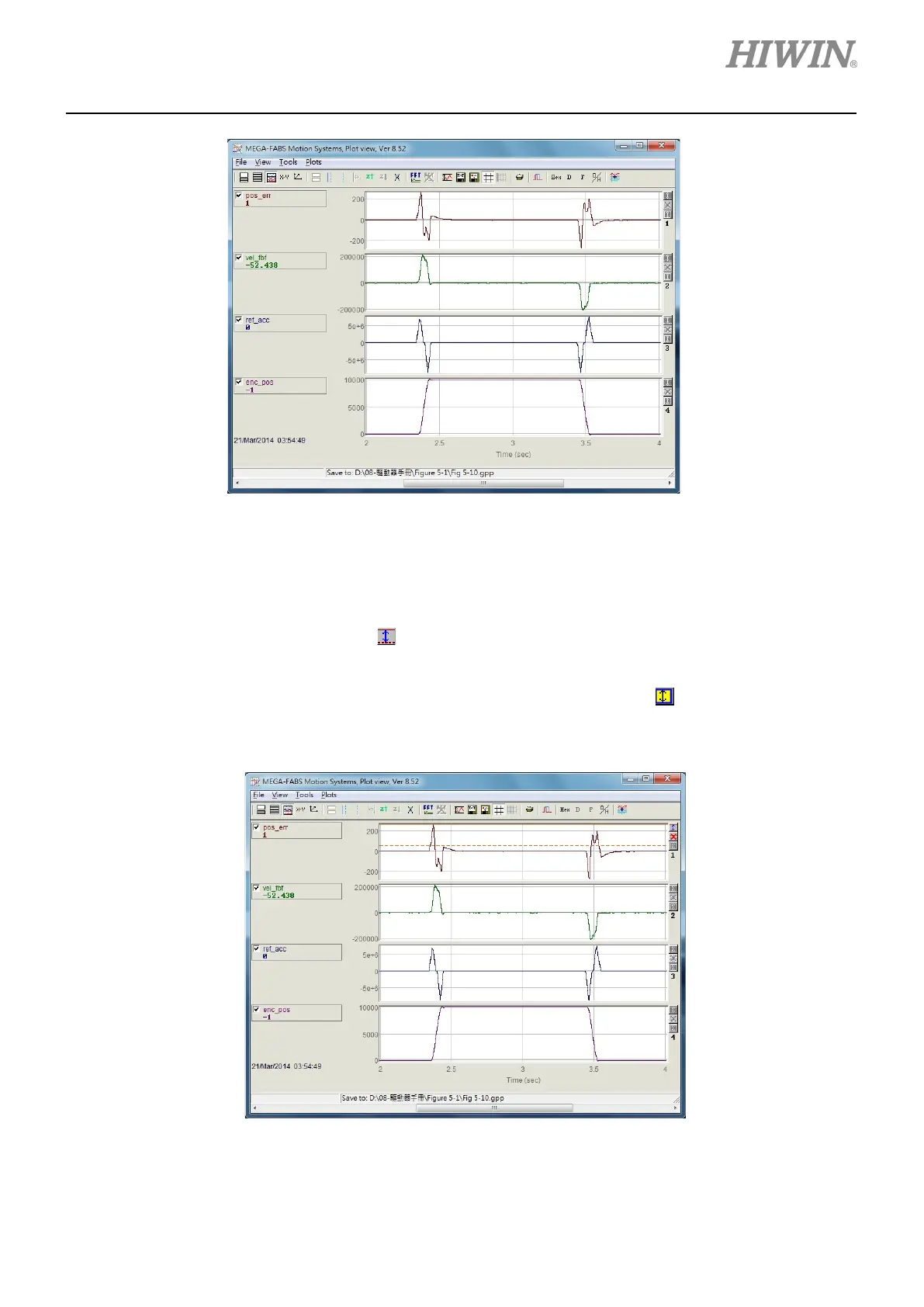

If users would like to zoom in on Y axis, users need to press Ctrl key and left click or press Ctrl key
and right click at the same time to show two reference lines (red line and red dotted line) to select a
segment, as figure 6.5.1.5. Click on
to zoom in on the selected segment, as figure 6.5.1.6. At this
time, the values on Y axis are locked and displayed in red. When scrolling the timeline scrollbar, the
locked values on Y axis will not be updated, as figure 6.5.1.7. Click on
to return to the original
graph, as figure 6.5.1.5.
Figure 6.5.1.5
