D1-N Series Servo Drive User Manual Tuning
6-16 HIWIN MIKROSYSTEM Corp.

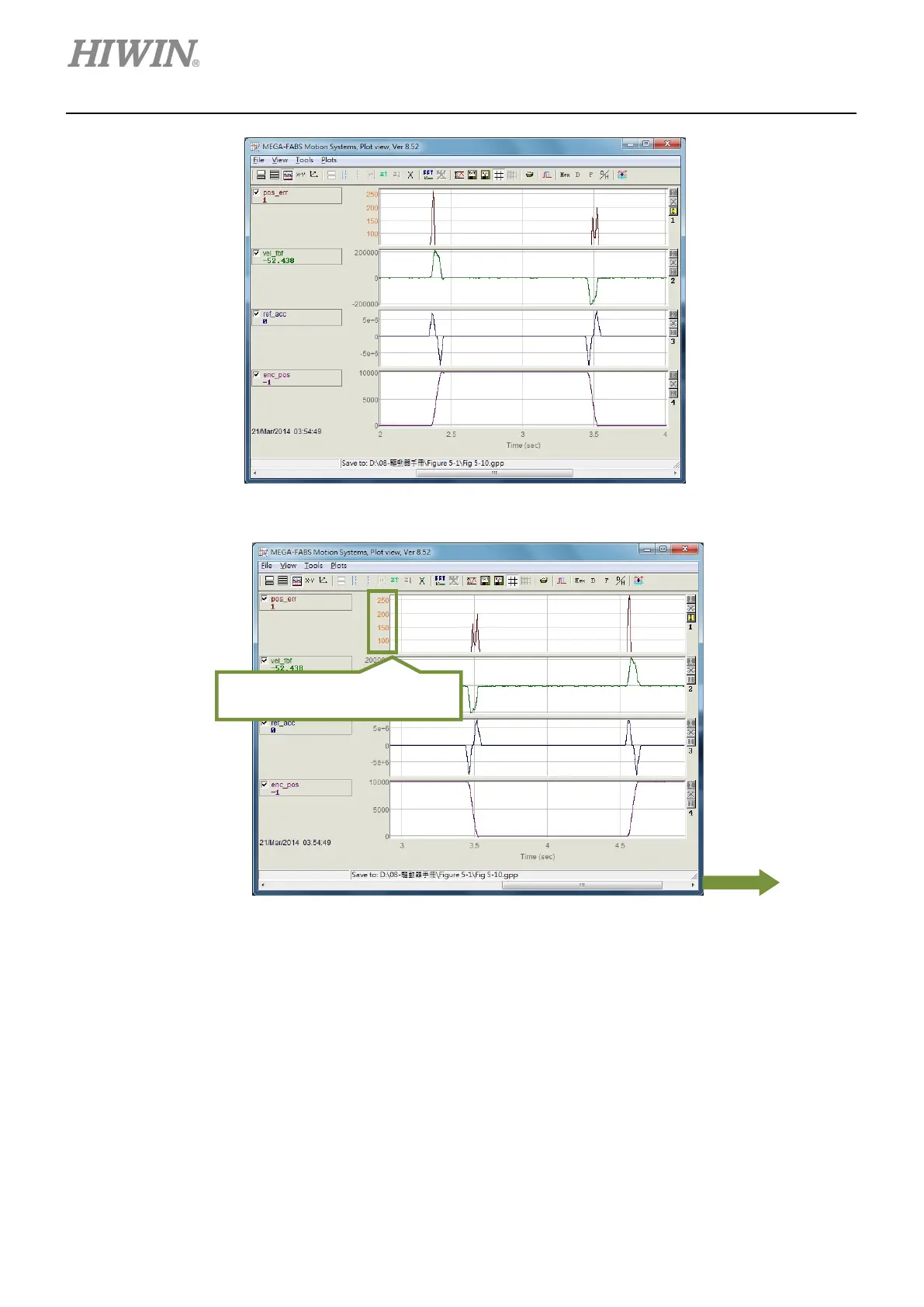

Figure 6.5.1.6
Figure 6.5.1.7
dt, 1/dt and dSamp
When the segment is selected by reference lines, three values (dt, 1/dt and dSamp) will be shown
below the graph as figure 6.5.1.3.
dt: The time of selected segment
dSamp: The number of samples in the selected segment
Values will not be automatically
updated to fit the graph.
