Parts List
Exploded Views
226 DR4500A Classic Series Circular Chart Recorder With or Without Control Product Manual Release L
February 2017
Basic recorder components without options

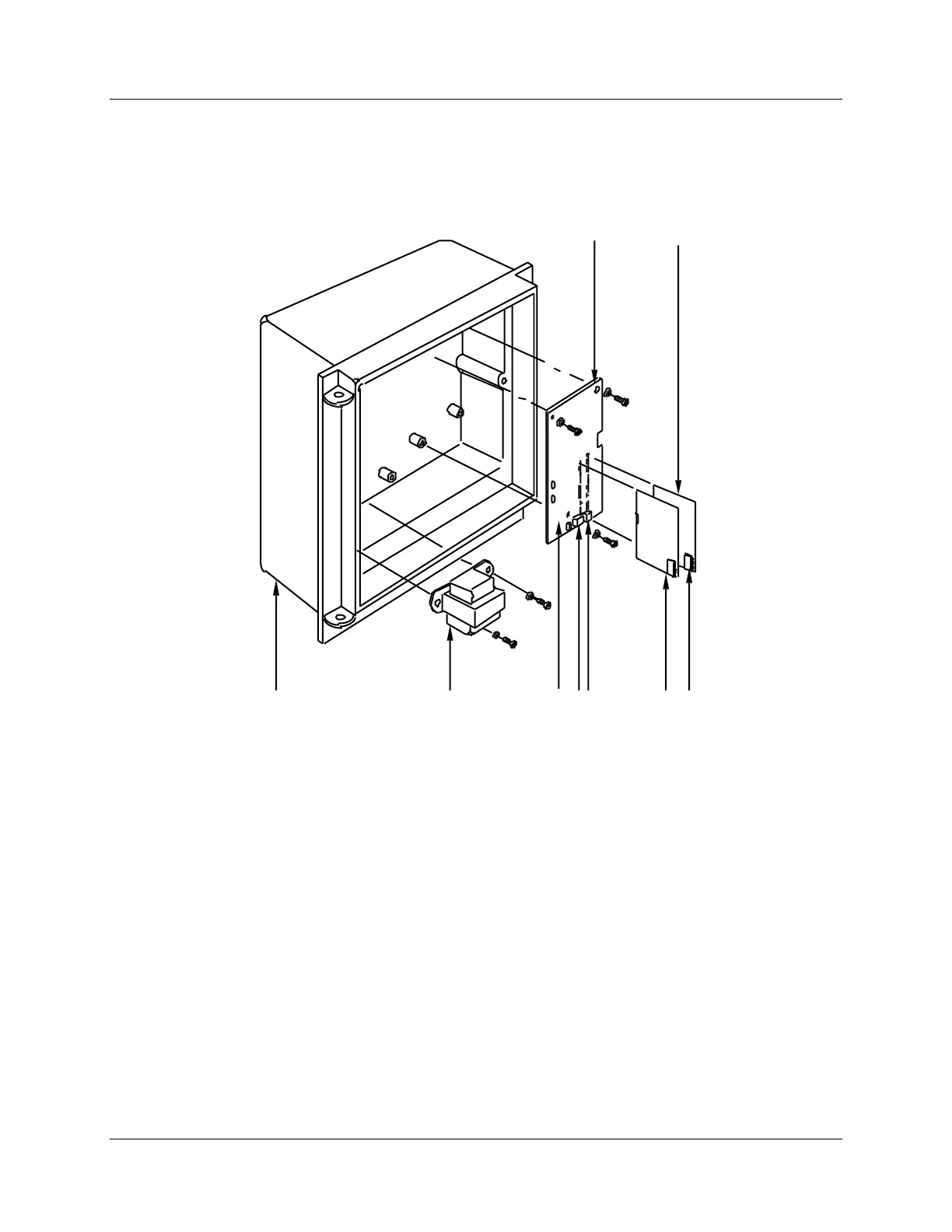

Figure 10-3 is an exploded view of the basic recorder components.
Table 10-3 is a list of the associated part numbers.
1 4 5
4
32
7
4
6
21454
Figure 10-3 Basic recorder components without options
