Parts List
Exploded Views
228 DR4500A Classic Series Circular Chart Recorder With or Without Control Product Manual Release L
February 2017
Additional recorder components associated with options

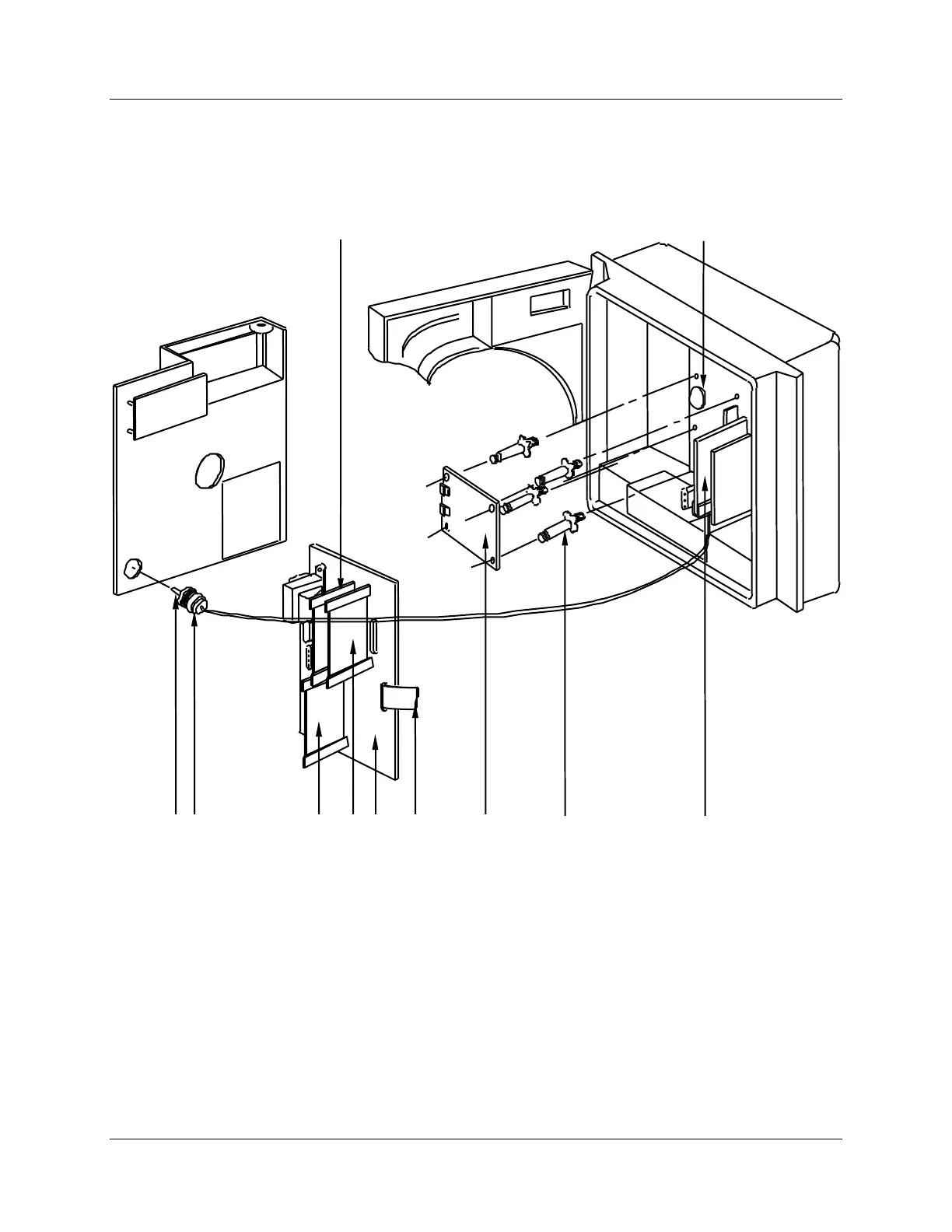

Figure 10-4 is an exploded view of the recorder components associated with options.
Table 10-4 is a list of the associated part numbers.
5 4 3 2 6 7
1
8
22098
1 9
10
Figure 10-4 Recorder components associated with options
