Monitoring and Operating the Controller
3/07 UDC3500 Universal Digital Controller Product Manual 275
Close the Ethernet configuration window and then single click on the “Online
Configuration” button.
Then, click on the “Start” button. The P.I.E. Tool
®
should start uploading the
configuration information from the controller as shown below:

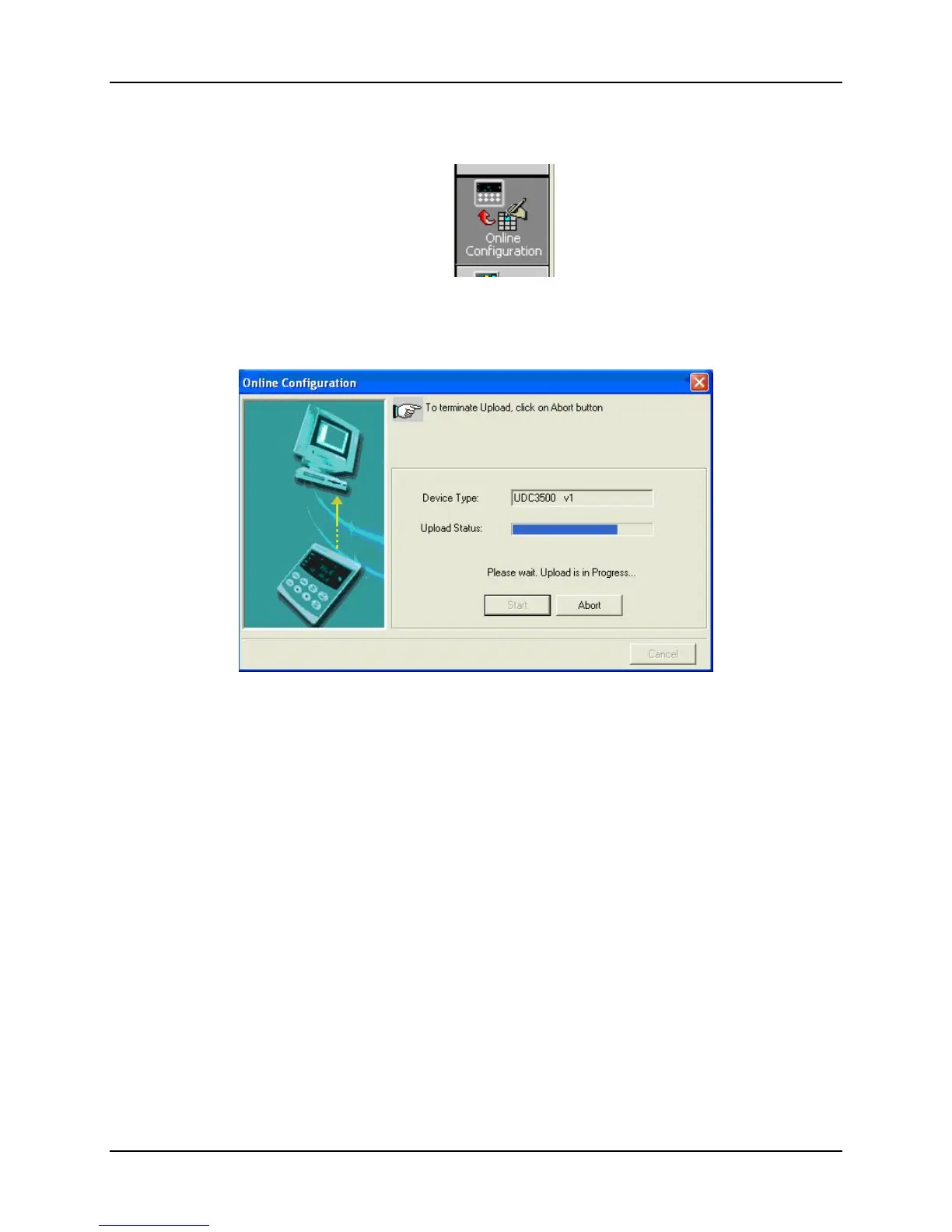

Figure 4-25 Configuration Upload in Progress
Once the upload is complete, click on the “Ethernet & Email” Group. Configure your
Ethernet and Email parameters per Section 3.30.
Once you have changed the Ethernet settings and downloaded them
to your controller,
you will no longer be able to communicate with it until you change the IP address in the
P.I.E. Tool
®
to the controller’s new IP Address.
You will also need to re-configure the Local Area Network (LAN) settings on your PC
back to their original settings. On some PCs and LANs, it is possible to simply allow the
PC to get these settings automatically via the DHCP server. Contact your Information
Technologies (IT) representative to see if this is available on your PC.
