Monitoring and Operating the Controller
3/07
UDC3500 Universal Digital Controller Product Manual
269
Totalizer Data

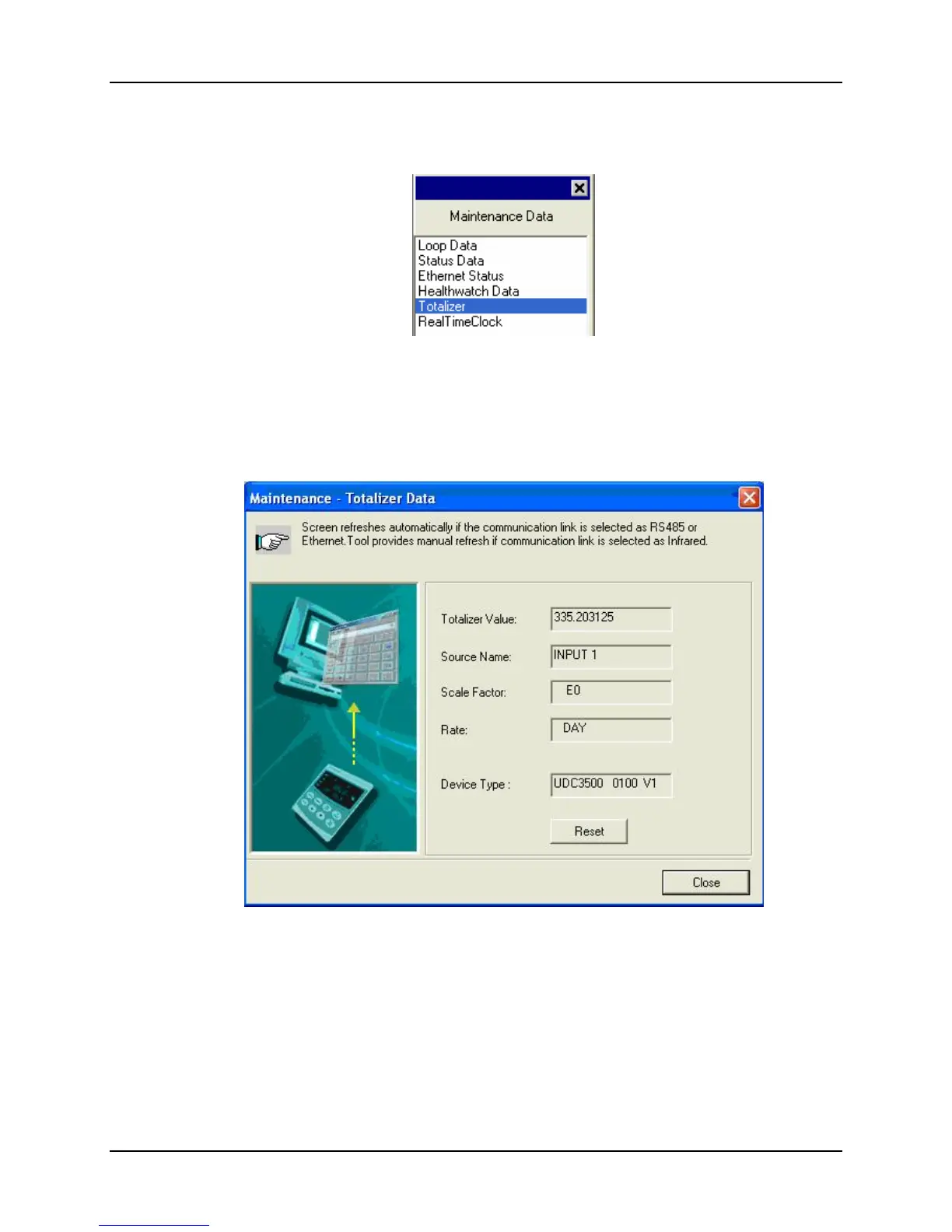

Select “Totalizer” from the “Maintenance Data” menu.
This screen only appears in instruments that have the Totalizer option. The Totalizer
screen shows the current values of the Totalizer. The
Reset button
sets the Totalizer
Value back to zero.
See Section
3.12 for other information about the Totalizer option.
Figure 4-20 Totalizer Maintenance Screen
284
286
