Monitoring and Operating the Controller
272 UDC3500 Universal Digital Controller Product Manual 3/07
Close the IR configuration window and then single click on the “Online Configuration”
button.
Press any button on the controller’s keyboard to activate the controller’s IR port. Point
your IR dongle (if using PC) or your Pocket PC’s IR port (if using Pocket PC) at the IR
window on the front of the controller and then click on the “Start” button. The P.I.E.
Tool
®
should start uploading the configuration information from the controller as shown
below:

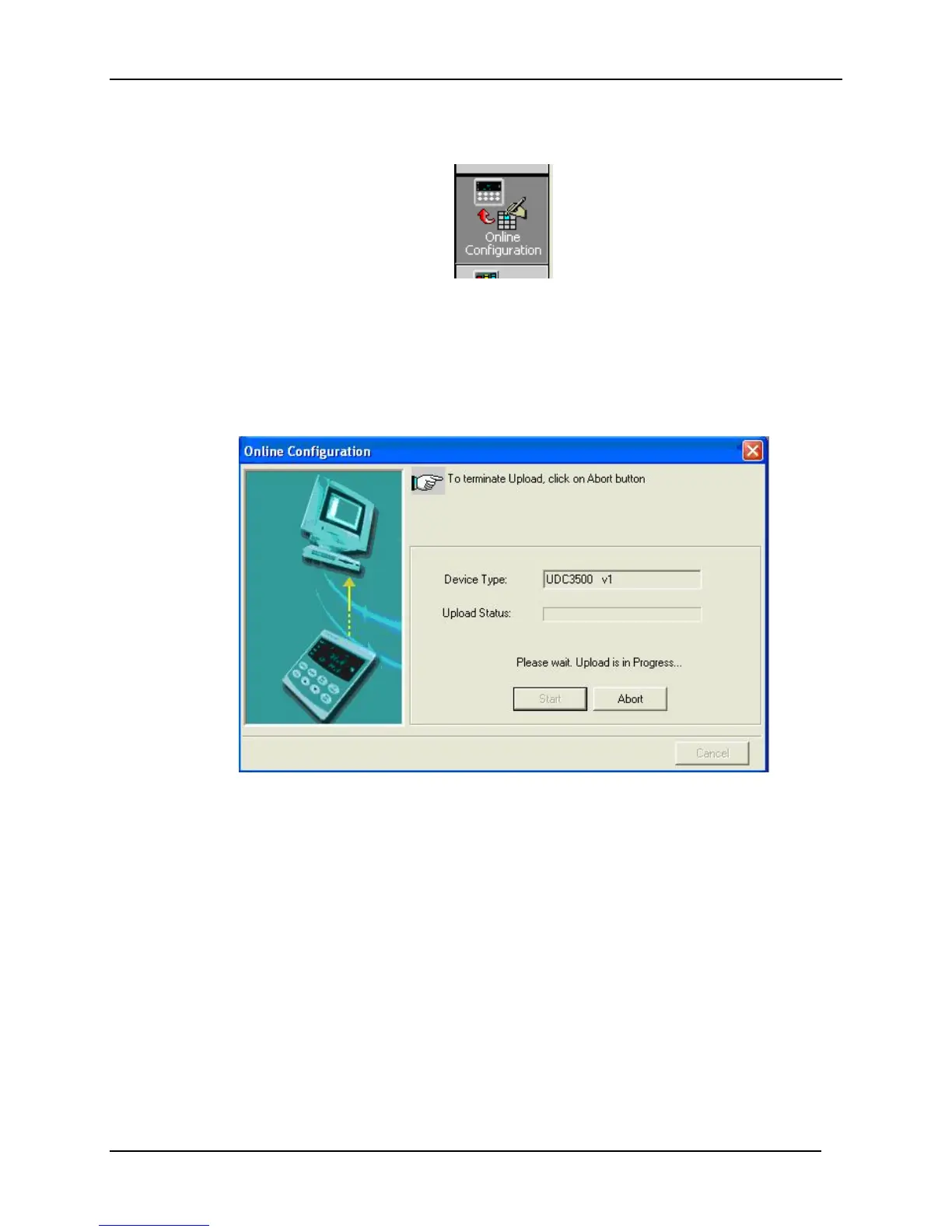

Figure 4-23 Configuration Upload in Progress
Once the upload is complete, click on the “Ethernet & Email” Group. Configure your
Ethernet and Email parameters per Section 3.30.
Once you have changed the Ethernet settings and downloaded them
to your controller,
you will now be able to communicate with it via Ethernet.
