8-101
Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual

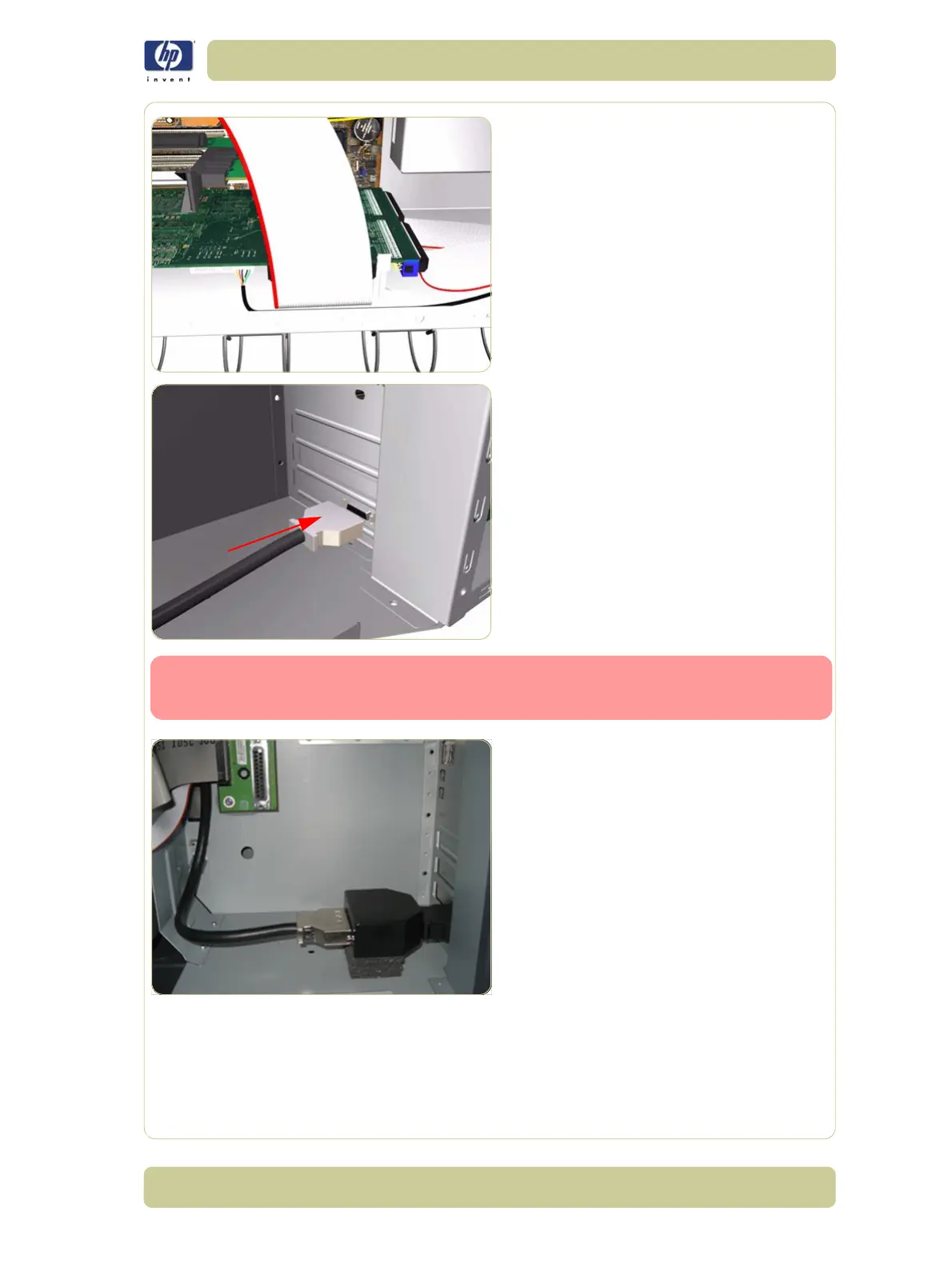

3. Connect all cables to the Gamut PCI PCA
4. Connect the Trailing Cable to the new
Gamut PCI PCA.
Important Note: When connecting the Trailing Cable to the Gamut PCA, if the
Trailing Cable has never been replaced, the connectors will not be compatible,
you must use the connection adaptor supplied with this kit (shown below).
5. Install the conector adaptor if required and
then connect the Trailing Cable to the new
Gamut PCI PCA.
To Next Page
