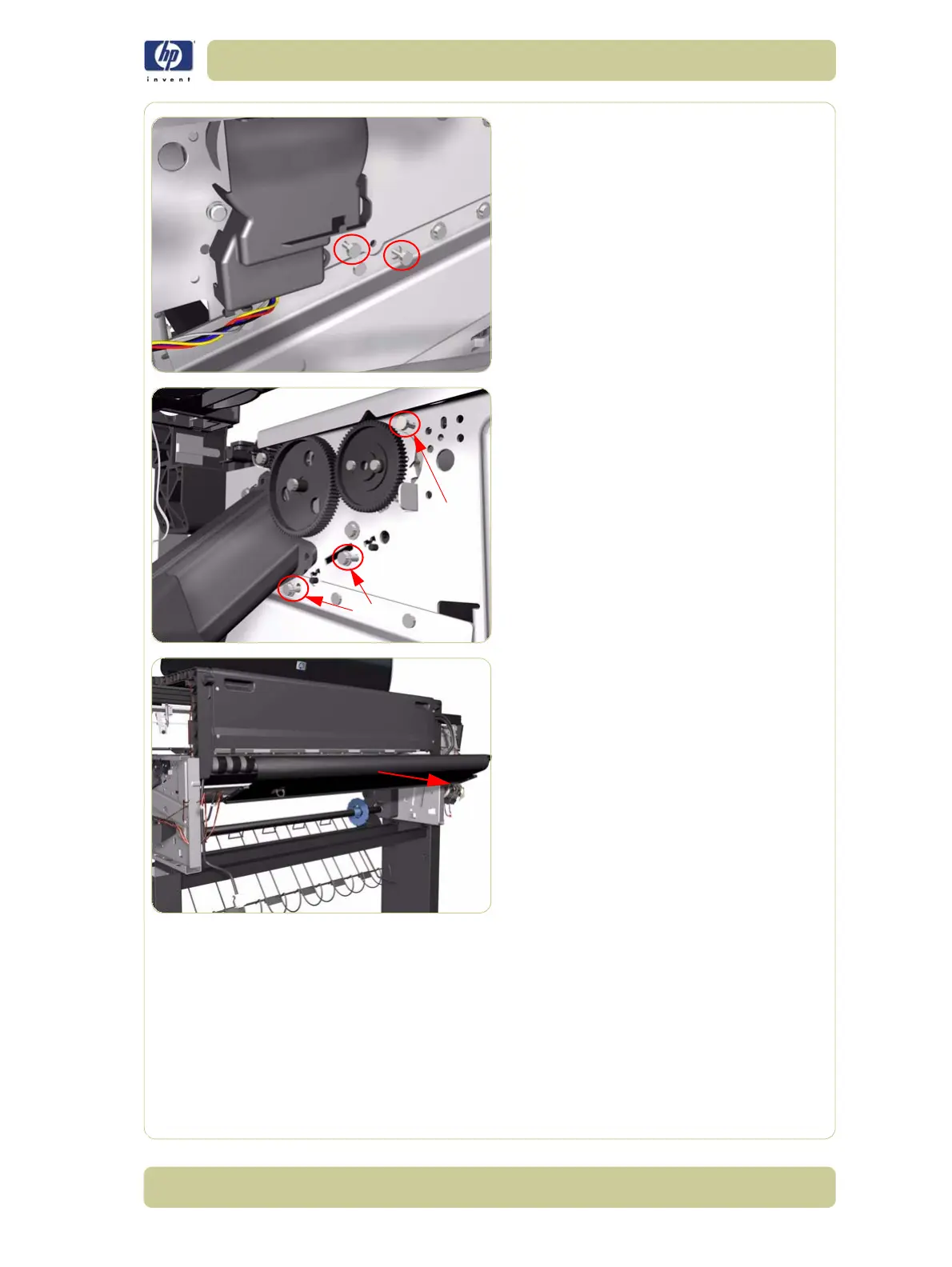

13. Remove two T-15 screws (Type E), that
secure the Center Guide, from the left hand
side of the Printer.
14. Remove one T-15 screw (Type E) and two
T-20 screws (Type A), that secure the
Center Guide, from the right hand side of
the Printer.
15. Remove the Center Guide from the Printer.
Type A
Type E
