FusionModule2000 Smart Modular Data Center
Installation Guide
10 Installing the Aisle Containment
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

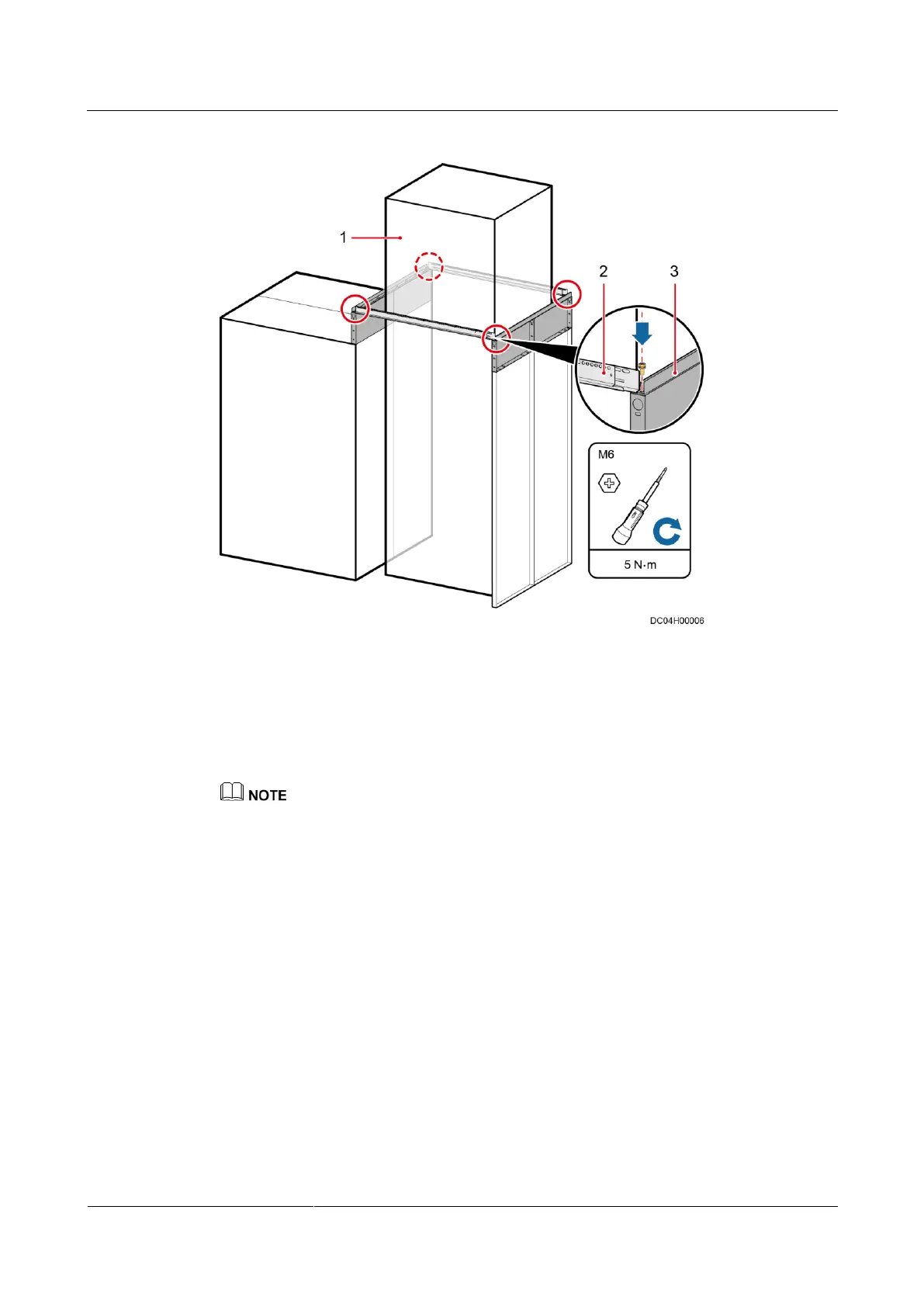

Figure 10-9 Installing telescopic edges
(3) Skylight connective plate
Step 4 Select positions for installing PC plate supports. As shown in Figure 10-10, PC plate support
1 should be installed closely to the column, and PC plate support 2 should be installed in the
middle between PC plate support 1 and the edge of the adjustable skylight.
If the space between the right side of the column and the right side of the adjustable skylight is less than
600 mm, PC plate support 2 is optional.
