FusionModule2000 Smart Modular Data Center
Installation Guide
10 Installing the Aisle Containment
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

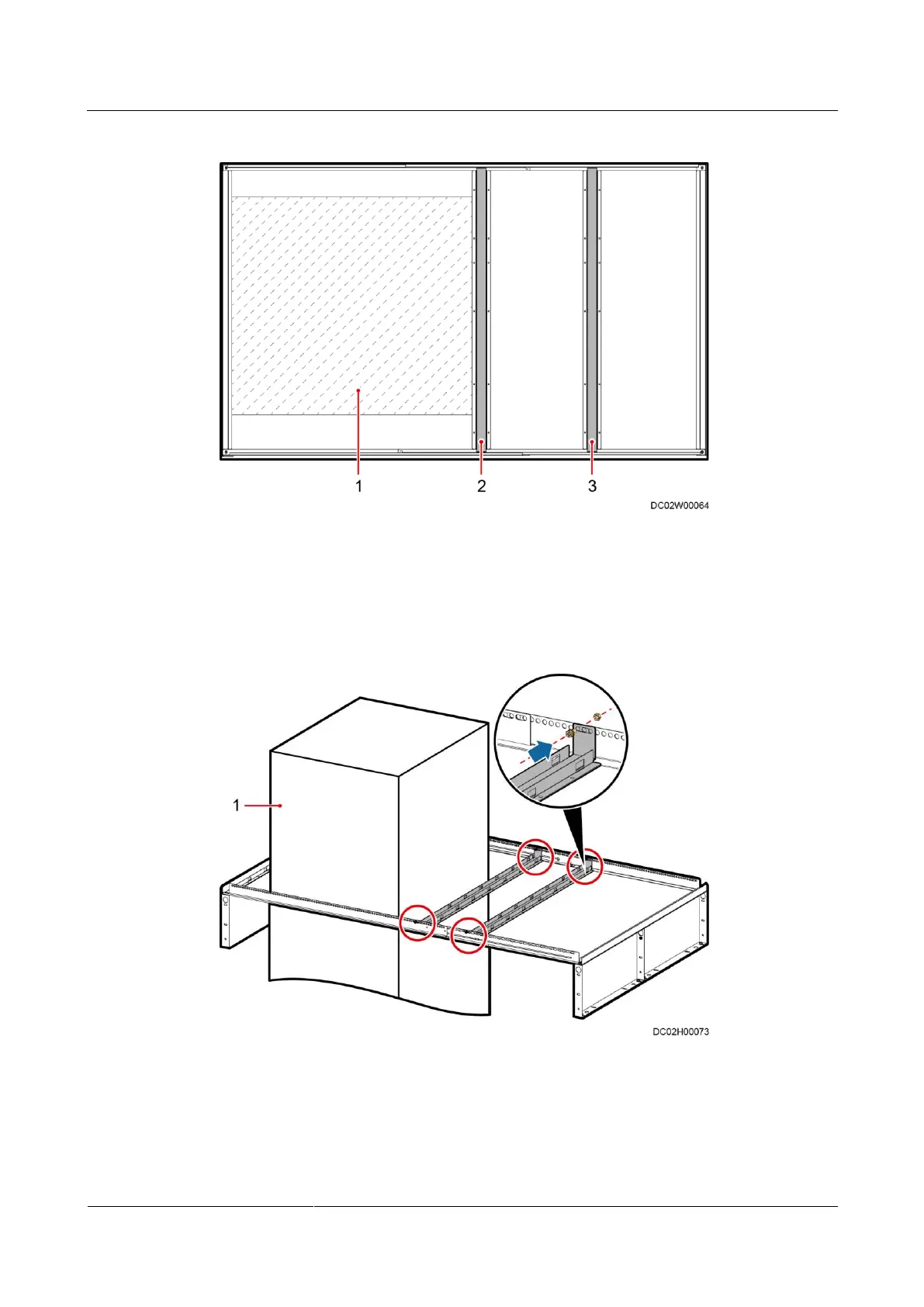

Figure 10-10 Adjustable skylight top view
Step 5 Secure the two PC plate supports to the telescopic edges using four M6 screws and nuts.
Figure 10-11 Installing PC plate supports
Step 6 Install L-shaped mounting brackets.
1. Trim the PC plate using a hook knife and place it on the adjustable skylight.
