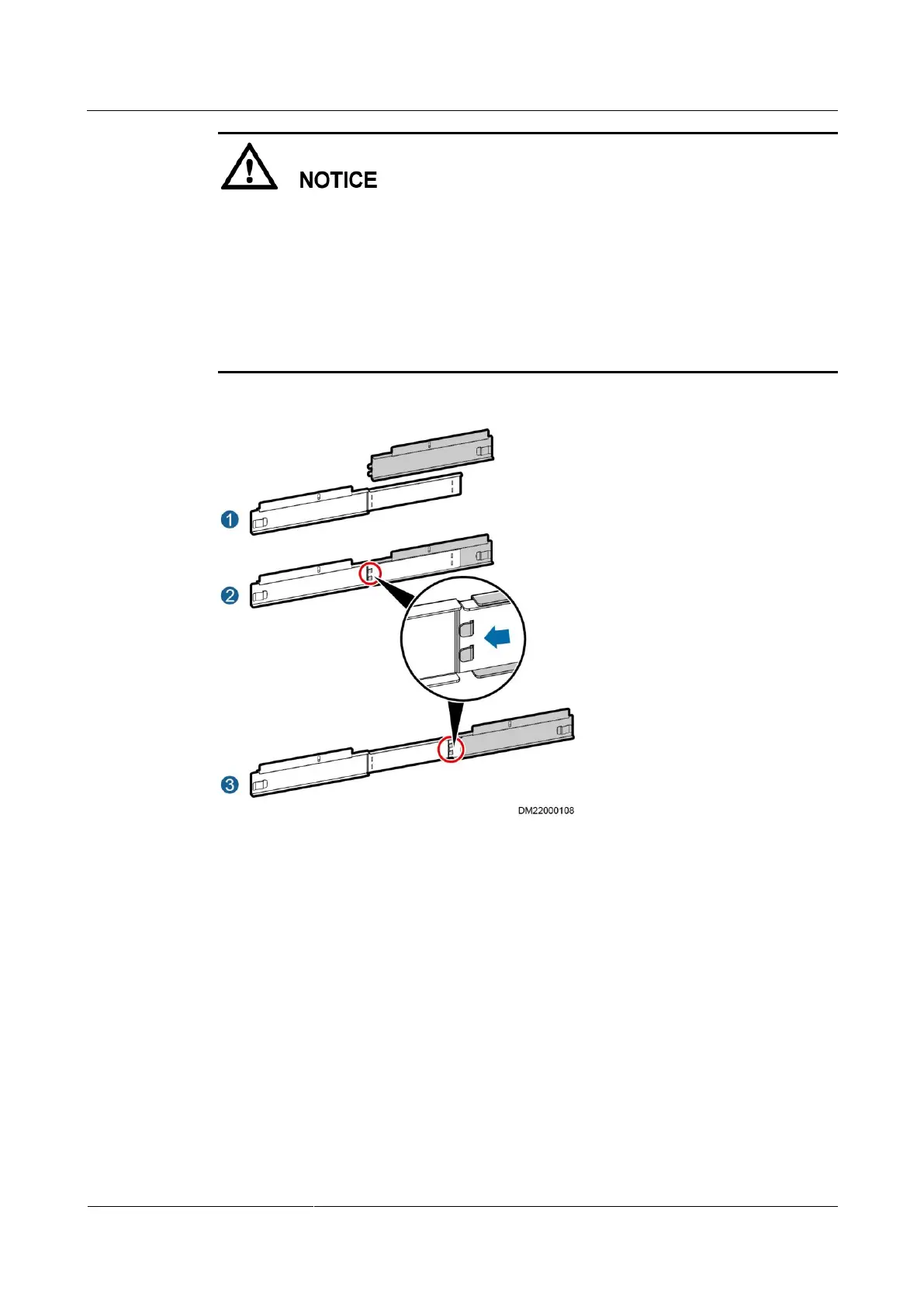

(1) in Figure 10-20 shows the individual front and rear sealing plates.
(2) in Figure 10-20 shows the assembled front and rear sealing plates for 600 mm wide
cabinets.
(3) in Figure 10-20 shows the assembled front and rear sealing plates for 800 mm wide
cabinets.
Front and rear sealing plates for middle cabinets do not need to be assembled. Only front
and rear sealing plates for end cabinets and cabinets at both sides of a column need to be
assembled.
Figure 10-20 Assembling front and rear sealing plates
Step 2 Secure the front and rear sealing plates to the cabinet using four M5x10 tapping screws, as
shown by (1) in Figure 10-21.
