FusionModule2000 Smart Modular Data Center
Installation Guide
10 Installing the Aisle Containment
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

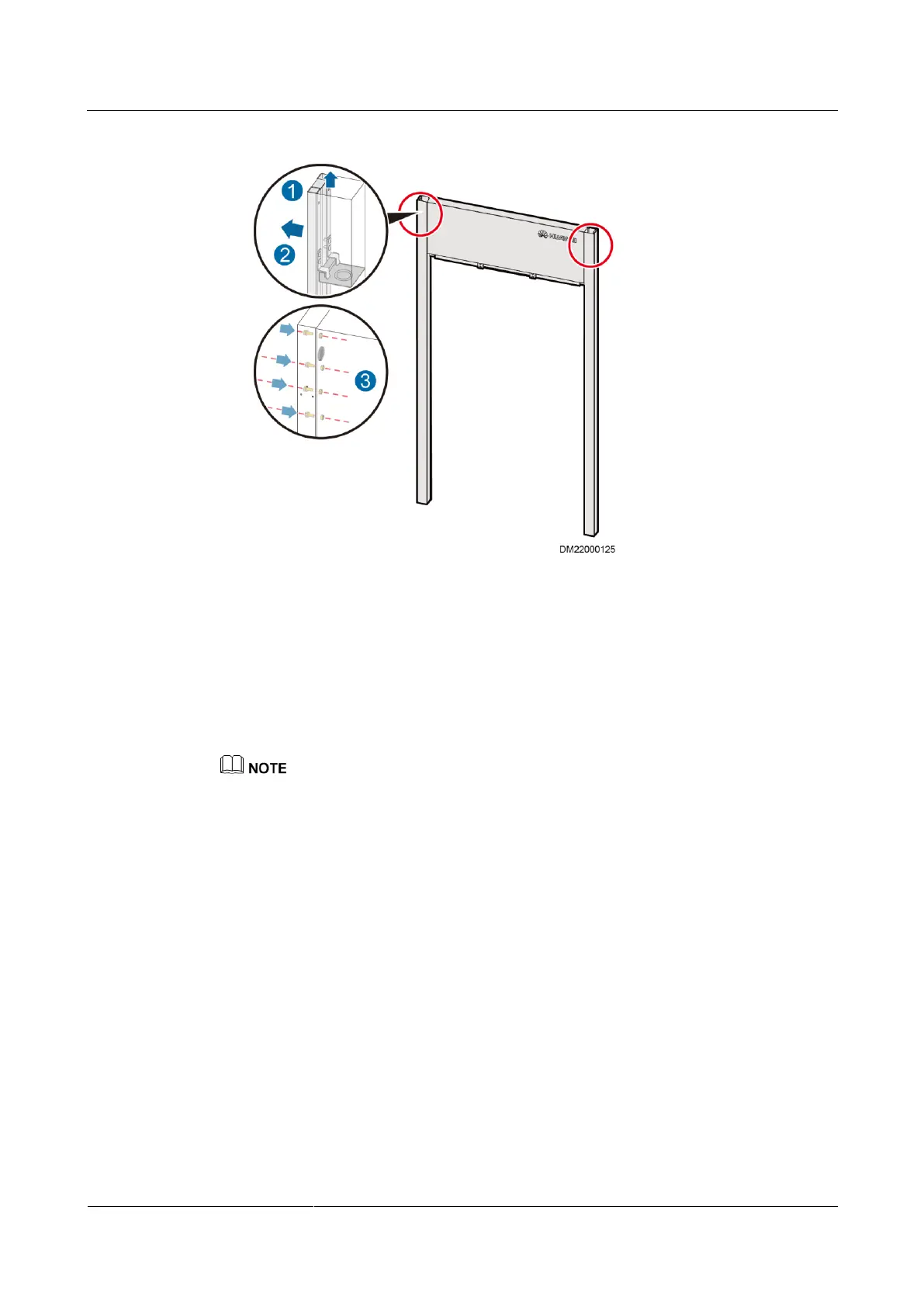

Figure 10-53 Assembling a door frame
Step 2 Install the door frame.
1. Partially secure (do not fully tighten the fasteners) left and right posts to the skylight
connective plates using four M6 screws, flat washers, and nuts (two at each side), as
shown by (1) in Figure 10-54.
2. Secure the bottom of one door post to the cabinet or enclosure frame using two M6
screws and square washers. The door posts on both sides require four screws, as shown
by (2) in Figure 10-54.
The hole positions for securing an end cabinet with a net height (without top frames) of 2000 mm or
2200 mm to the door post are different.
Verify that the posts are flush with the cabinet frame.
