FusionModule2000 Smart Modular Data Center

Installation Guide

12 (Optional) Installing Aisle Lights

Issue 02 (2018-03-31)

Huawei Proprietary and Confidential

168

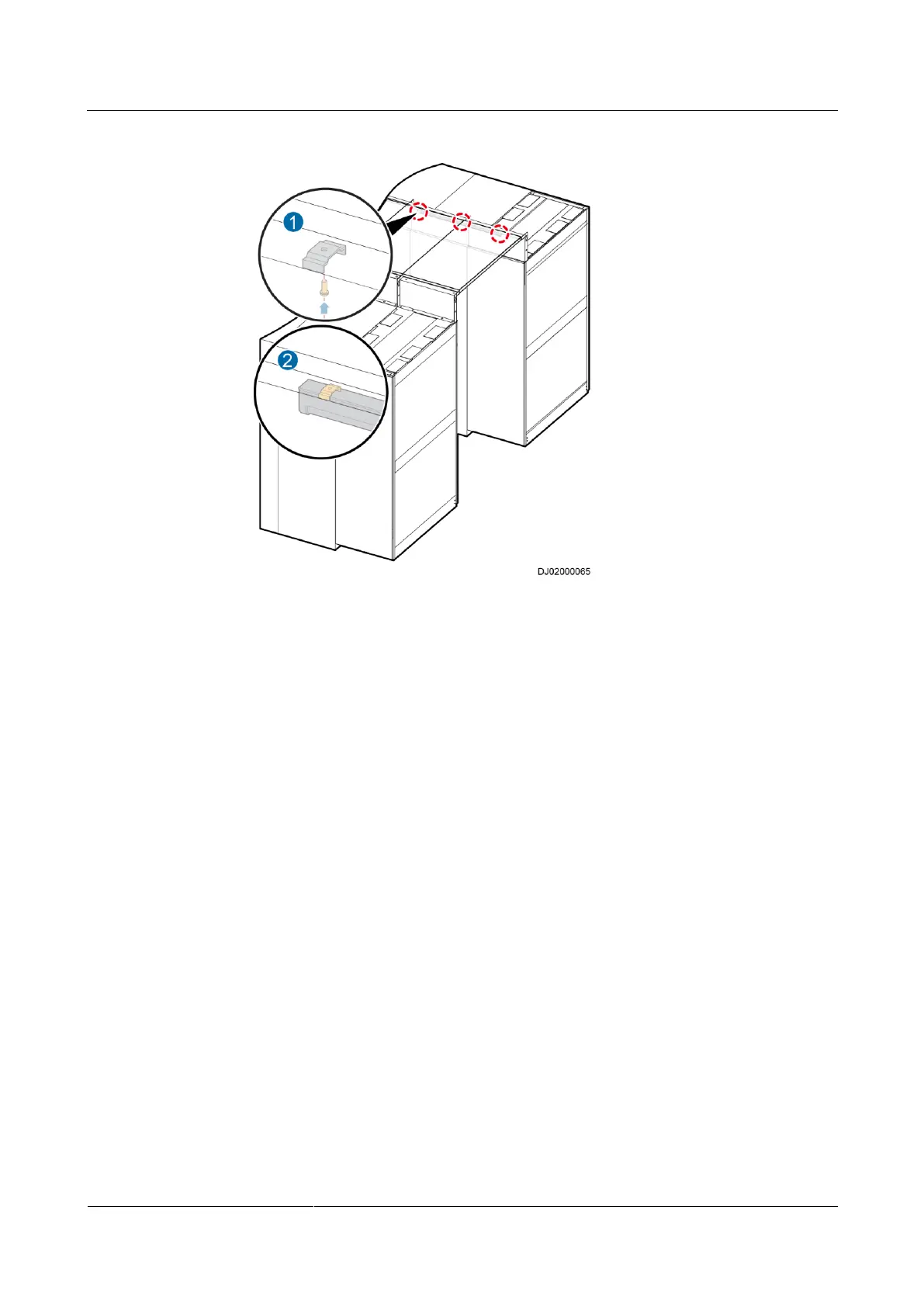

Figure 12-4 Installing a light tube

2. Secure light tubes to the light holders.

3. Install other light tubes in the same way.

Step 2 Connect lights.
