Huawei FusionModule2000 User Manual

FusionModule2000 Smart Modular Data Center
Installation Guide
15 Installing Monitoring Devices
Issue 02 (2018-03-31)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
201
Table 15-1 Mapping between the names and BOM numbers of monitoring actuators and
converters
Item
BOM
Number
Description
AC actuator
52271876
Install it at the upper frame mounting kit for the PDC in
the smart module.
Access
actuator
52271874
Install it at the upper frame mounting kit for the PDC or
network cabinet in the smart module.
WiFi
converter
50100888
Install it at the upper frame mounting kit for the PDC in
the smart module. Use it with the WiFi antenna (BOM
number: 27012015).
Skylight
actuator
52271875
If one skylight actuator is configured, install it at the
upper frame mounting kit for the network cabinet in the
smart module. If two skylight actuators are configured,
install them at the upper frame mounting kits for the
front and rear end doors respectively.
Preparations
Tool: Phillips screwdriver
Materials: WiFi converter, positioning kit, WiFi antenna base, WiFi antenna
Procedure
Step 1 Remove the fastener, remove M4 screws, and take off the rear plate.

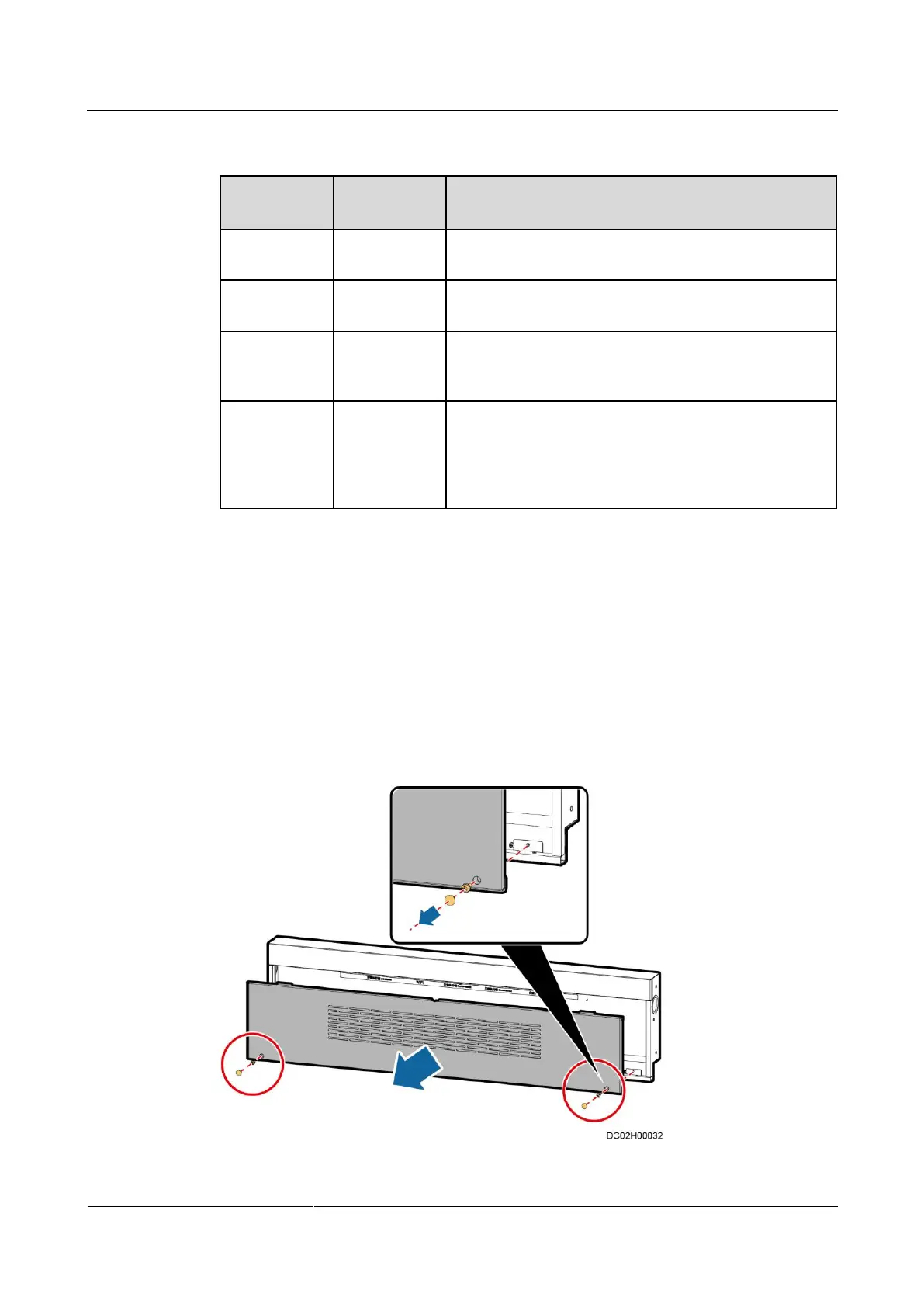

Figure 15-33 Removing the rear plate from the upper frame mounting kit
