FusionModule2000 Smart Modular Data Center
Installation Guide
15 Installing Monitoring Devices
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Step 2 Install the WiFi converter onto the guide rail. Determine the installation position for the WiFi
converter based on the label on the upper frame mounting kit. Align the upper slot on the rear
mounting kit of the WiFi converter with the upper part of the guide rail and then press the
lower part of the converter to clamp the lower slot of the converter to the guide rail. Shake the
WiFi converter in different directions to check that it is securely installed.

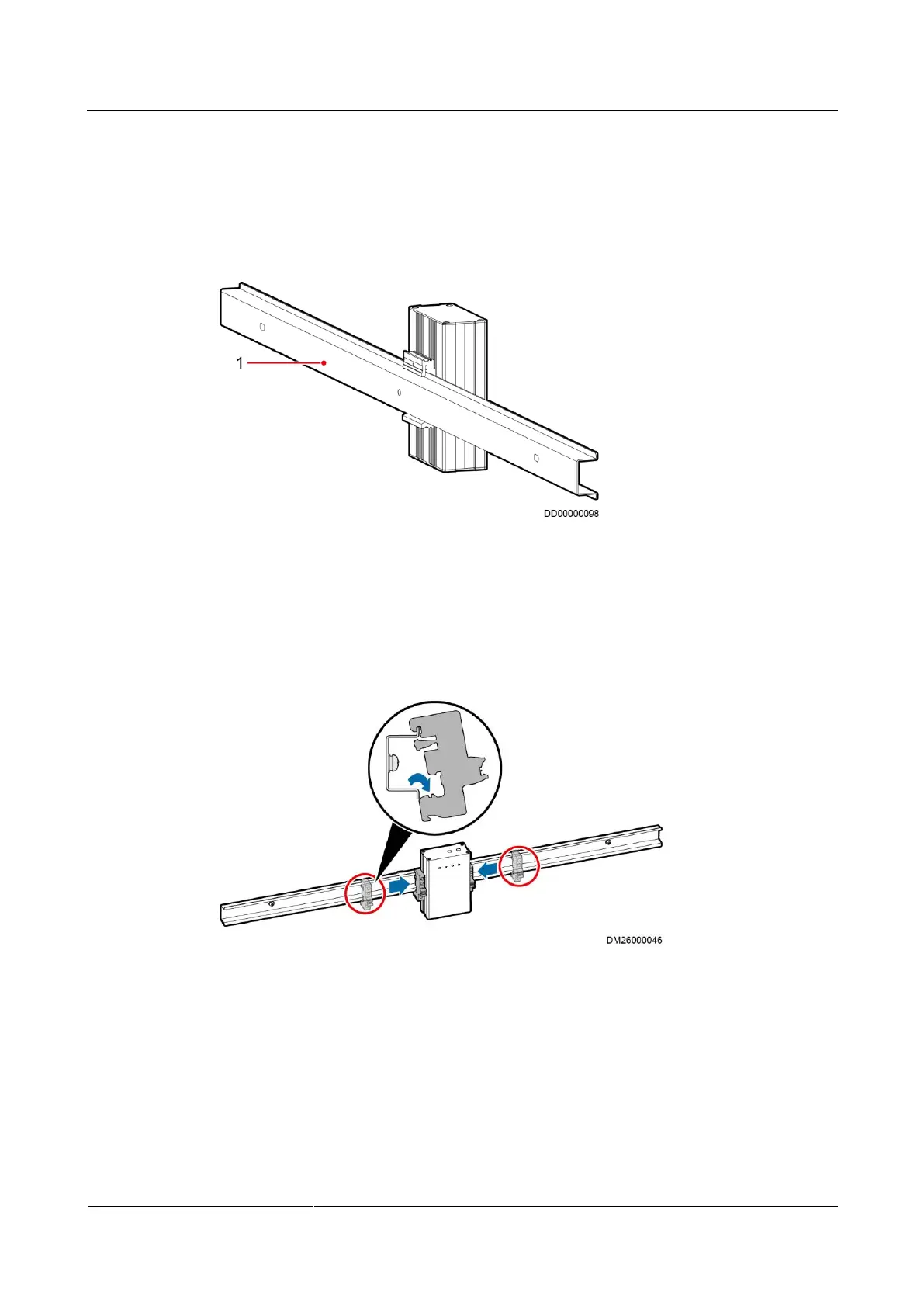

Figure 15-34 Installing the WiFi converter onto the guide rail
Step 3 Install positioning kits. Install two positioning kits on the two sides of the WiFi converter to
limit the movement of the converter.
Figure 15-35 Installing positioning kits
Step 4 Install other actuators. Install other actuators in place in a similar way and secure them using
positioning kits.
Step 5 The WiFi antenna can be installed using the magnet on its base. Attach one WiFi antenna to
the upper frame mounting kit in the aisle containment and another WiFi antenna to the door
box on the right side (facing the aisle). Then connect the WiFi antennas to the RF_1 and RF_2
ports on the WiFi converter.
