FusionModule2000 Smart Modular Data Center
Installation Guide
15 Installing Monitoring Devices
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Preparations
Tool: Phillips screwdriver
Materials: IC card reader and accessories
Procedure
Step 1 Remove the baffle plate from the installation position, as shown by (1) in Figure 15-52.

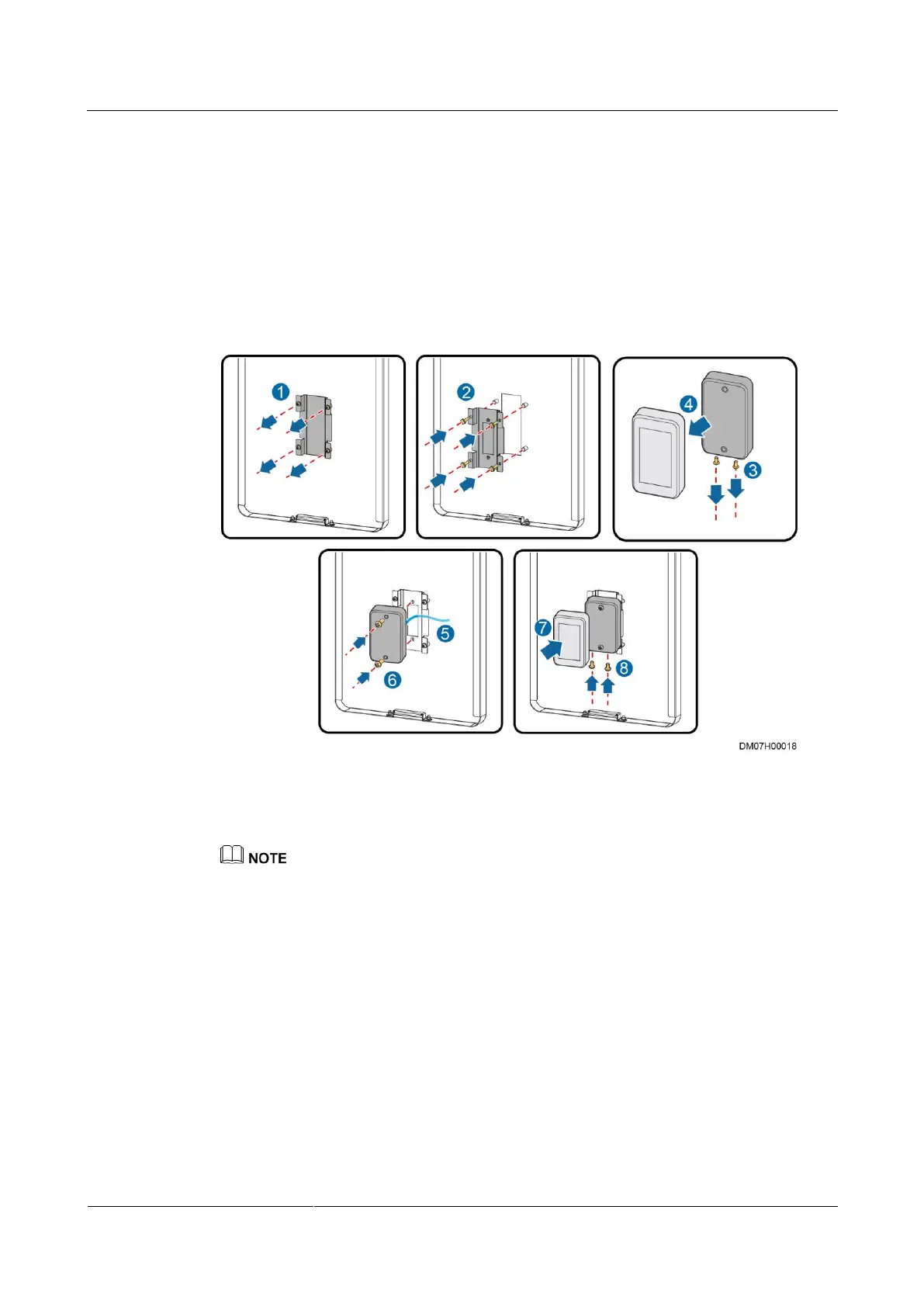

Figure 15-52 Installing an IC card reader
Step 2 Secure the baffle plate with a cable hole on the lower part to the pad mounting kit, as shown
by (2) in Figure 15-52.
Keep the protruding plane of the baffle plate flush with the end plane of the pad mounting kit.
Step 3 Remove the screws from the IC card reader cover (set aside) and take off the cover, as shown
by (3) and (4) in Figure 15-52.
Step 4 Route the IC card reader cable through the cable hole in the baffle plate, as shown by (5) in
Figure 15-52.
Step 5 Keep the screw holes of the cover at the bottom and use two M3x8 screws to secure the IC
card reader to the baffle plate, as shown by (6) in Figure 15-52.
Step 6 Secure the cover to the IC card reader, as shown by (7) and (8) in Figure 15-52.
