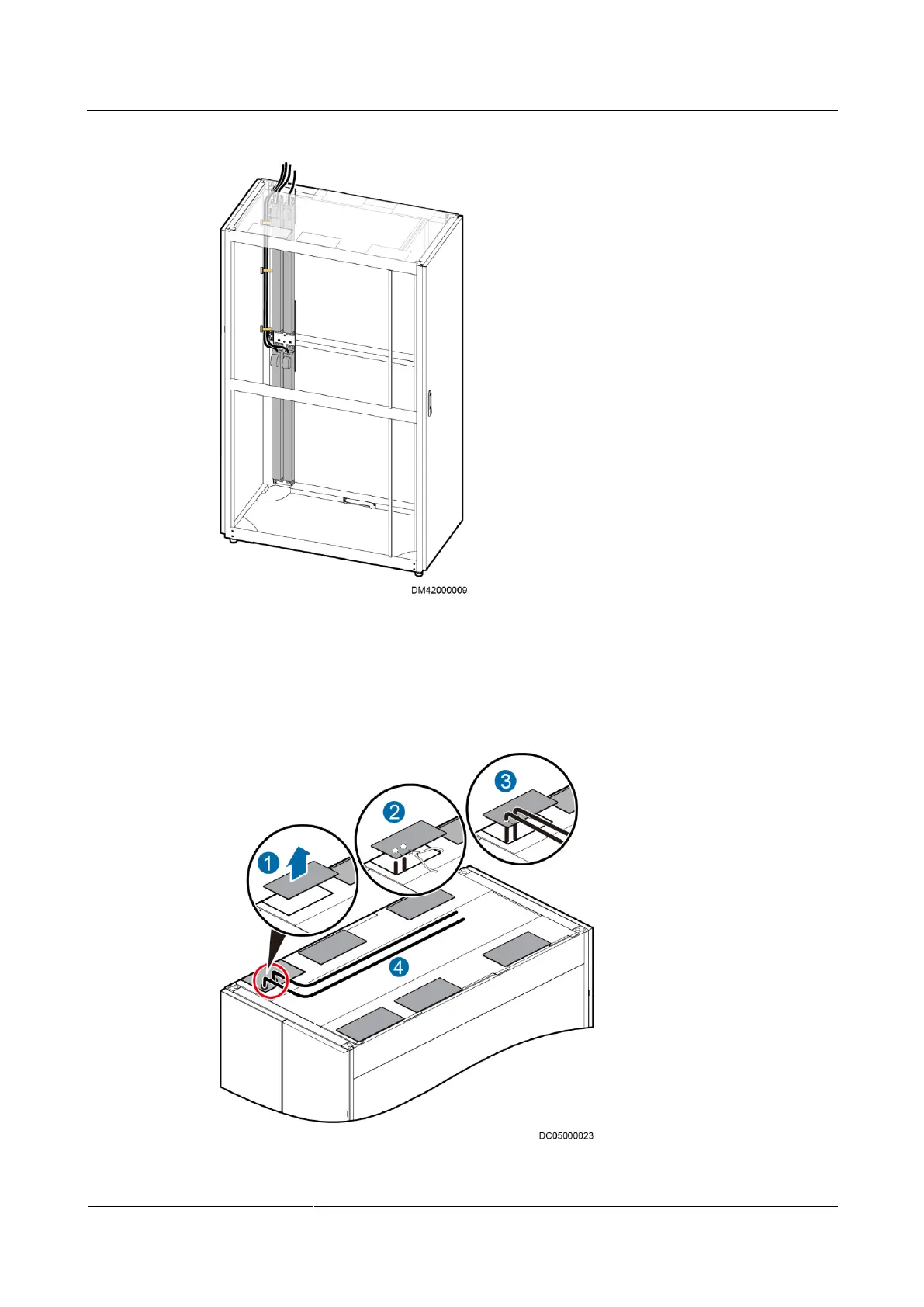

Figure 17-30 Routing half-sized rPDU cables
Step 3 Remove the rodent-proof mesh from the top of the cabinet, use diagonal pliers to cut openings
that allow cables to run through, and take out the rPDU cables through the openings, as shown
by (1), (2), and (3) in Figure 17-31.
Figure 17-31 Taking out rPDU cables
