FusionModule2000 Smart Modular Data Center
Installation Guide
3 Smart Module Layout Requirements
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

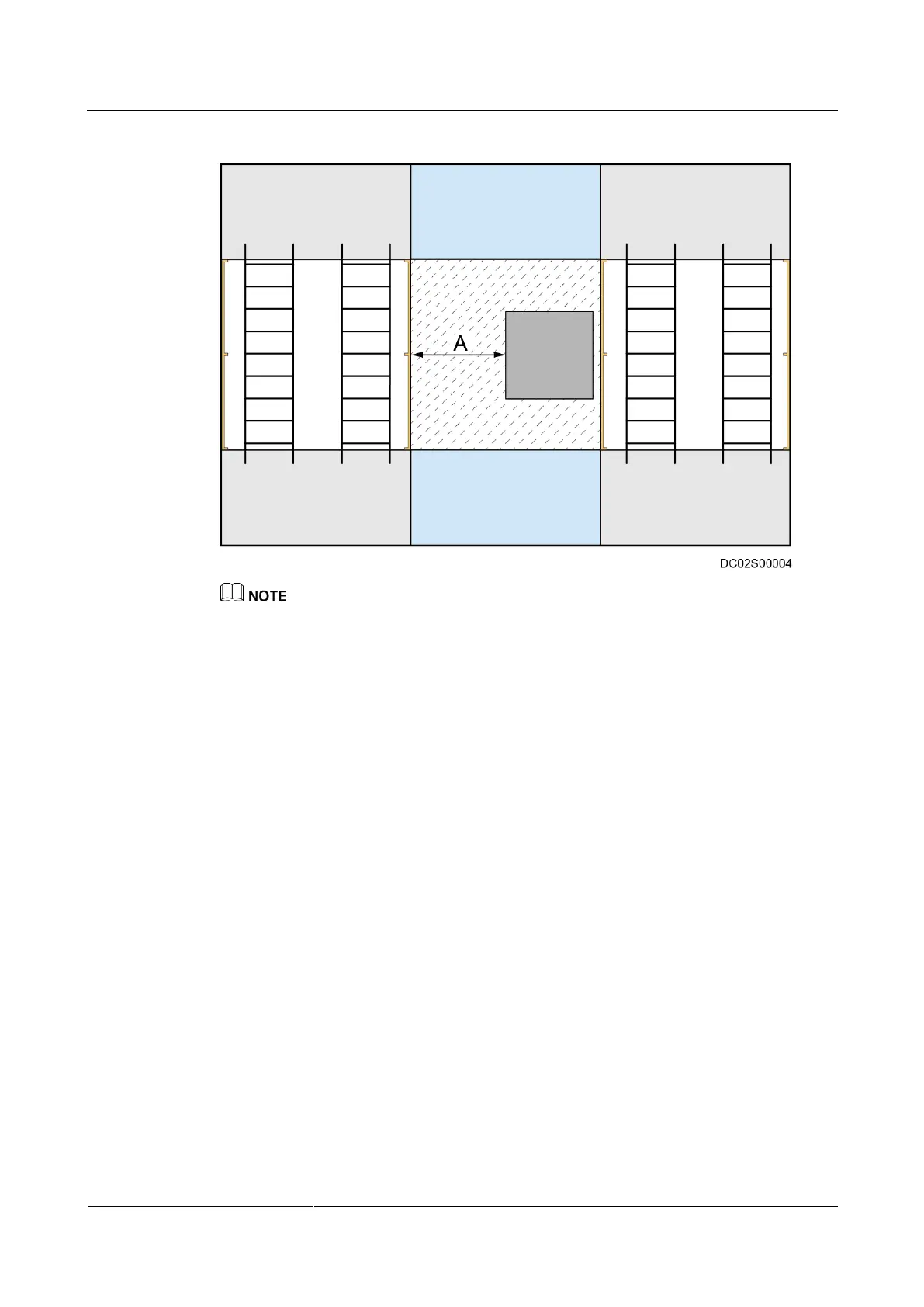

Figure 3-4 Column in the aisle containment (A < 800 mm)
Cabinet places on both sides of the column are left blank and sealed by sealing plates. Directions of
the concave sides of the sealing plates are shown in Figure 3-4.
Install cable trays over the cabinets on both sides of the blank cabinet places for routing
strong-current and weak-current cables.
Install an adjustable skylight over the aisle containment. The area to be covered by the adjustable
skylight is shown in Figure 3-4.
