Table 4-13 ECC800-Pro RF_Z parameters
Item Specications
RF_Z operating
frequency
2405–2480 MHz
RF_Z EIRP (max.) 8 dBm
Table 4-14 ECC800-Pro 4G parameters
Item Specications
Operating frequency ● 4G: LTE-FDD, covering frequency bands B1, B3, B5,
B7, B8 and B20; LTE-TDD, covering frequency bands
B38, B40, and B41
● 3G: WCDMA, covering frequency bands B1, B5, and
B8
● 2G: GSM, covering frequency bands 900 MHz/1800
MHz
EIRP (max.) 23 dBm
Communications Port
The ECC800-Pro provides the following communications ports. Figure 4-25 shows
the pins of the RJ45 port.

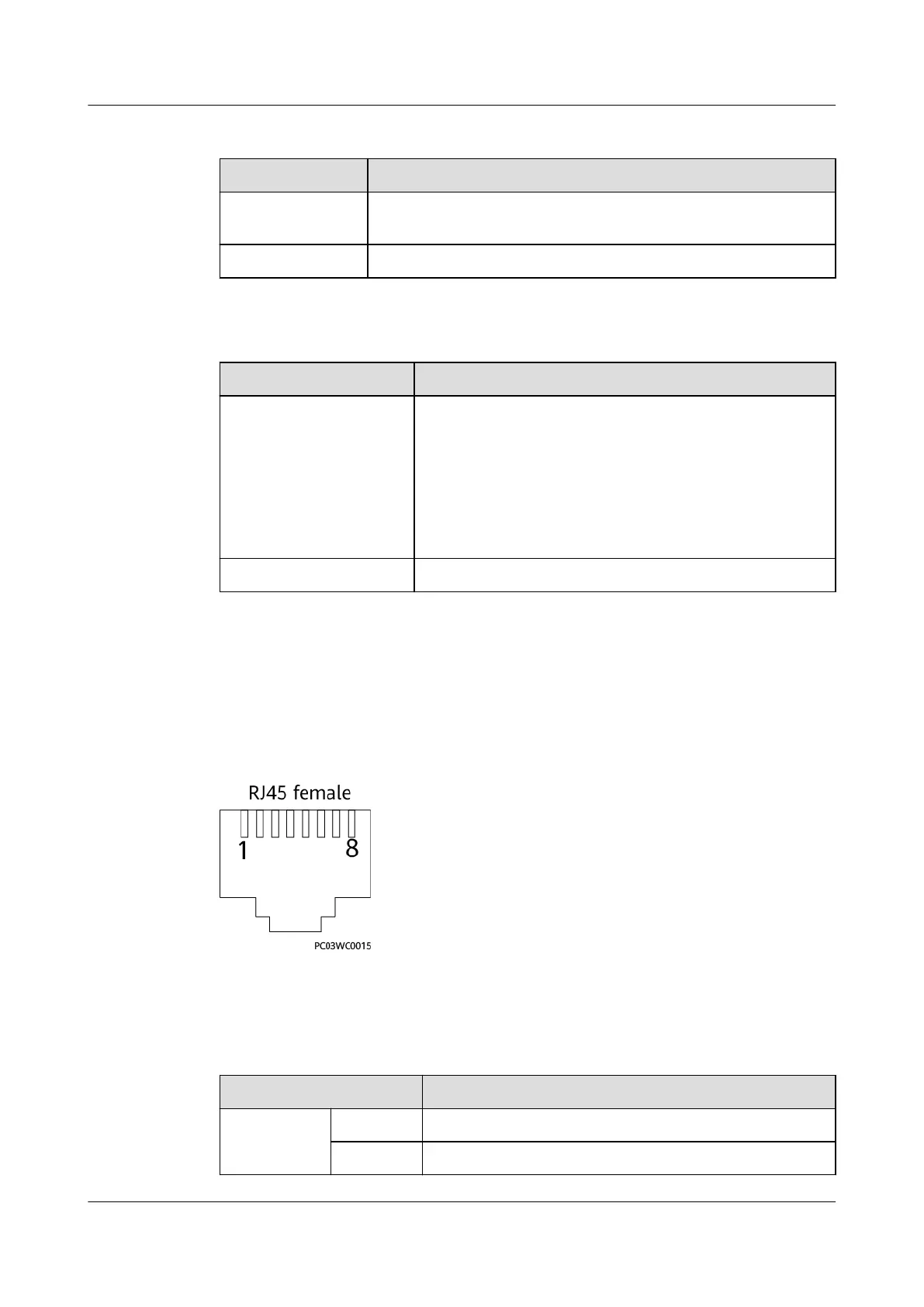

Figure 4-25 RJ45 port pins
There are four GE ports, that is, two WAN ports (WAN1 and WAN2) and two LAN
ports (LAN1/POE and LAN2/POE).
Table 4-15 GE port pin
denitions
Item
Description
Pin
sequence
Pin1 GE1+
Pin2 GE1-
iMaster NetEco
Device Installation and Commissioning Guide (Data
Center) 4 Connecting Monitoring Cables to Devices
Issue 02 (2021-05-12) Copyright © Huawei Technologies Co., Ltd. 96
