7 Configuration

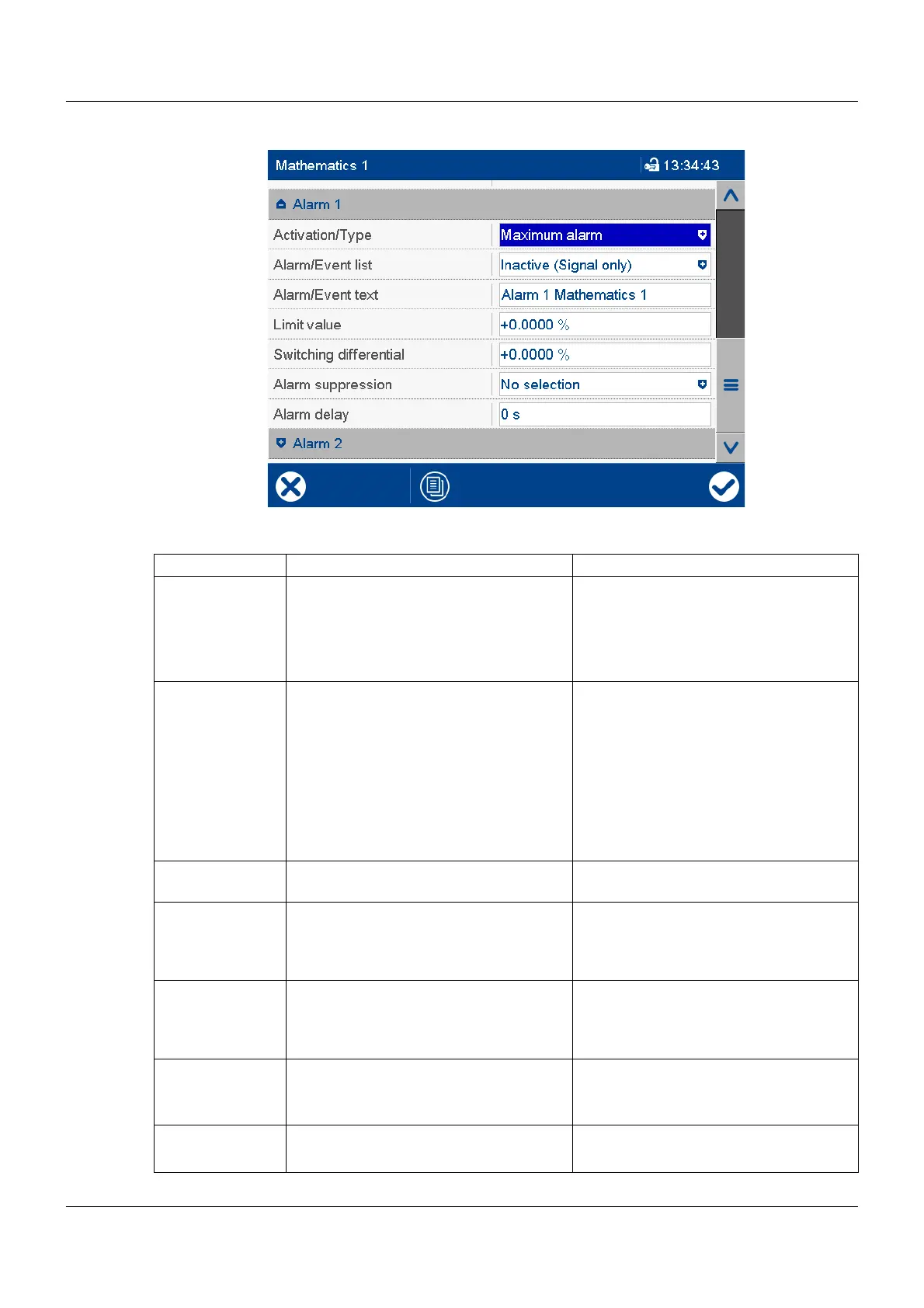

Device dialog box
Parameter
Parameter Selection/settings Description
Activation/Type Inactive Limit value monitoring is inactive.
Min. alarm Alarm signal is active if the value drops
below the limit value.
Max. alarm Alarm signal is active if the limit value is
exceeded.
Alarm/Event list Inactive (signal only) In out-of-limit cases, only the alarm sig-
nal is activated.
Event The alarm/event text is entered in the
event list.
Alarm/event The alarm/event text is entered in the
alarm list and the event list. The collec-
tive alarm is activated and the text of the
last alarm to occur is displayed in the sta-
tus bar.
Alarm/Event text Use default text or enter other text. Text entered in the alarm and event list
and displayed in the status bar.
Limit value -99999 to 0 to +99999 If the limit value is exceeded (max. alarm
case) or the value drops below the limit
(min. alarm case), an out-of-limit case
exists.
Switching differ-
ential
0 to 99999 The switching differential is used to sup-
press constant switching of the alarm
signal in the event of fluctuations of the
input signal around the limit value.
Alarm suppres-
sion
No selection
Digital selector
The selected digital signal (high-active)
prevents the alarm signal being activat-
ed.
Alarm delay 0 s to 32767 s Delay time for alarm signal activation
