6 Setup program
80
Connection status
The "Connection status" line indicates whether a connection to a device exists. In addition, some inter-
face data is displayed, e.g., the IP address.
The line can be shown and hidden using the Window > Connection status function.

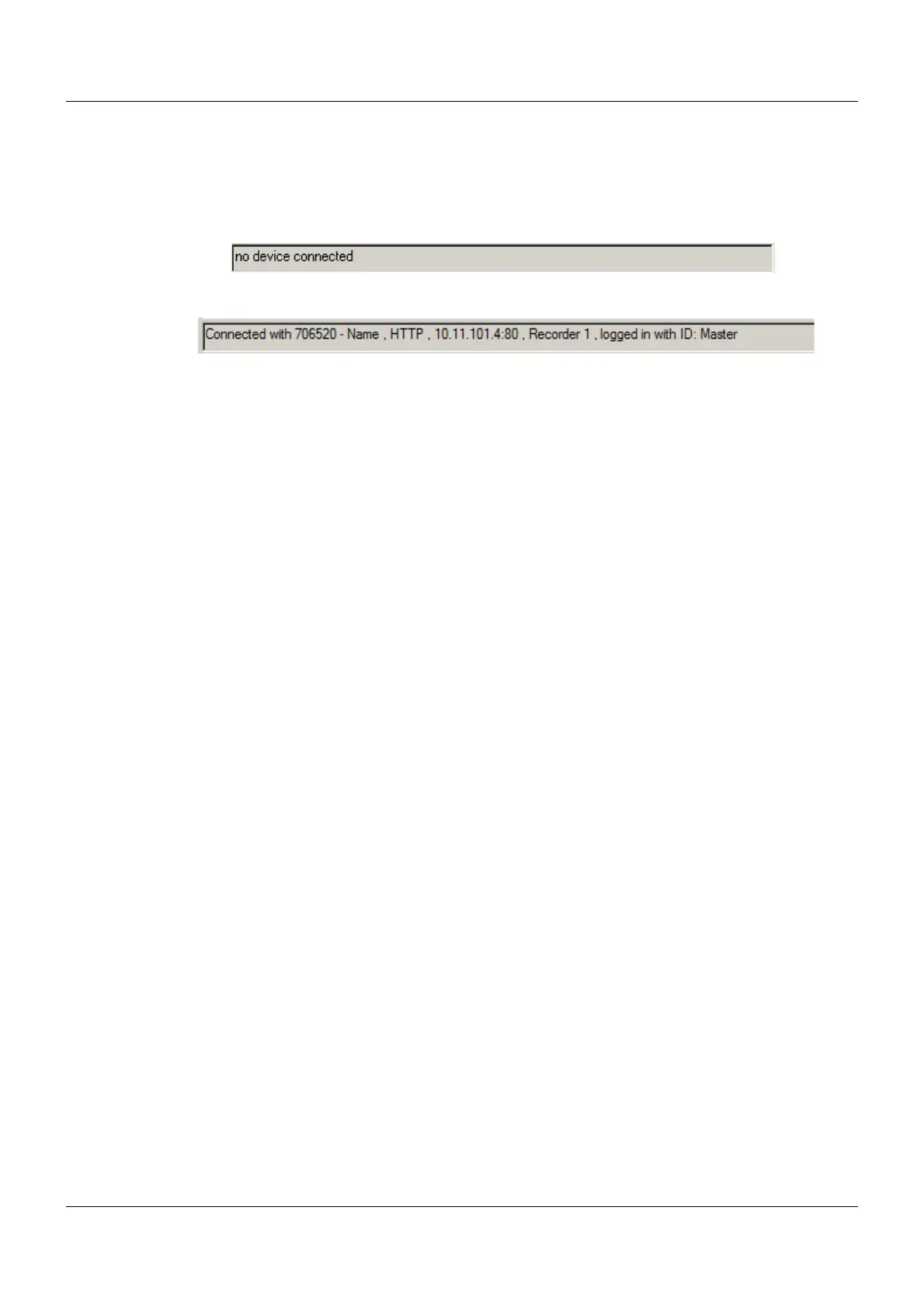

Example: No connection
Example: Connection to a device
The height of the line can be changed by moving the border of the online data window with the aid of the
left mouse button.
Online data
The "Online data" function displays current process data in the setup program.
The online data window can be shown and hidden using the Window > Online data function.
The height of the window can be changed by moving the border of the working area or the "Connection
status" line with the aid of the left mouse button.
Documentation (operating manual)
The operating manual of the device is available as a PDF document in the setup program when you
press F1 for the Help function.
The document is opened with the program (PDF viewer) assigned to files with the "PDF" extension on
the PC in question.
The language of the document depends on the language of the setup program (menu File > Default set-
tings... > National language of program). The document is not available in all languages.
