4. Partially insert screws into the open holes in the flanges of the large shelf.
5. Tighten all the screws completely.

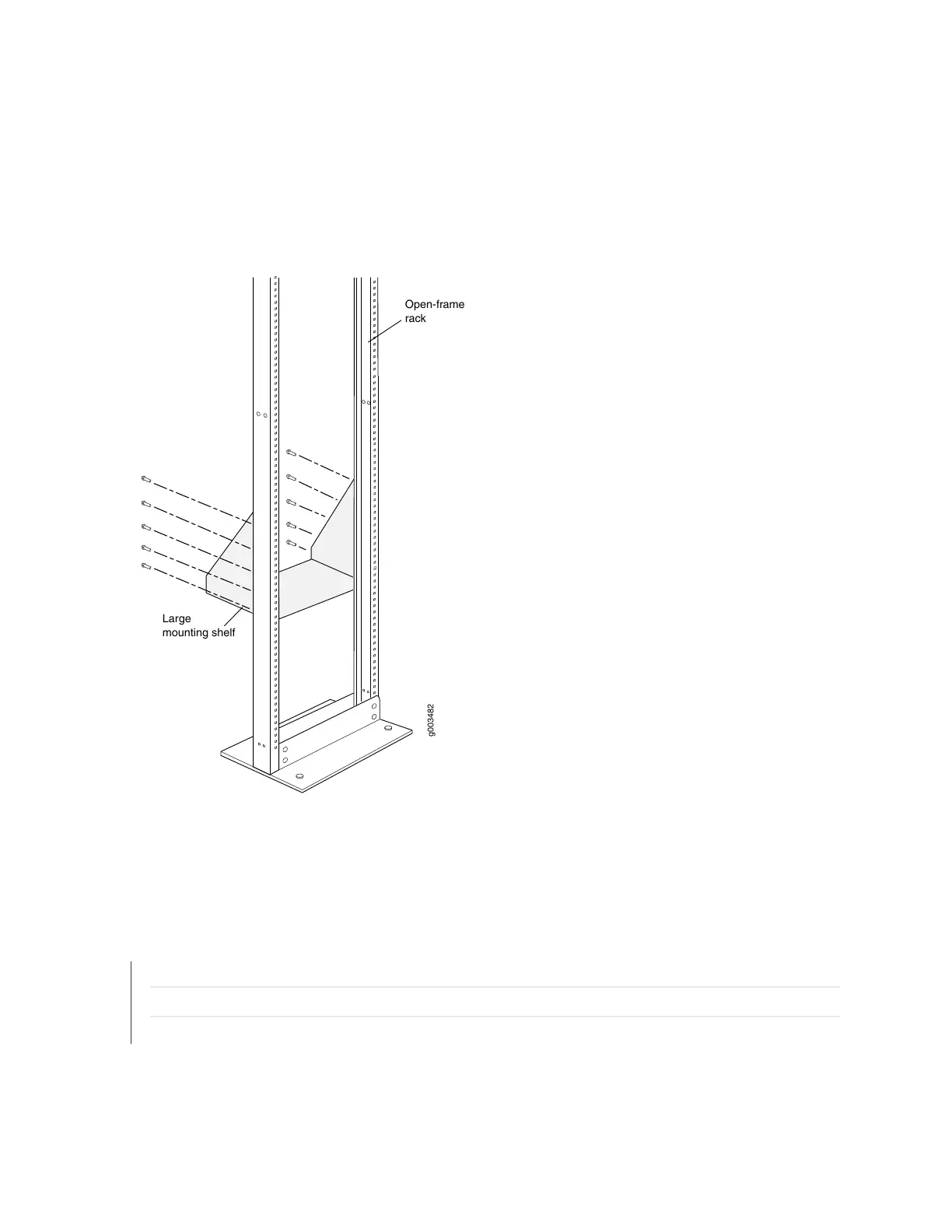

Figure 57: Installing the Mounting Hardware for Front-Mounting in an Open-Frame Rack
Open-frame
rack
Large
mounting shelf
g003482
After the mounting hardware is installed, proceed to “Installing the MX960 Router Using a Mechanical
Lift” on page 276.
