Installing an MX960 Fan Tray
To install a fan tray (see Figure 135 on page 384 and Figure 136 on page 385):
1. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other
end of the strap to the ESD point on the chassis.
2. Grasp the fan tray on each side, and insert it straight into the chassis. Note the correct orientation by
the "this side up" label on the top surface of the fan tray.
3. Tighten the captive screws on each side of the fan tray faceplate to secure it in the chassis.
4. Lower the cable manager back into position, if necessary.

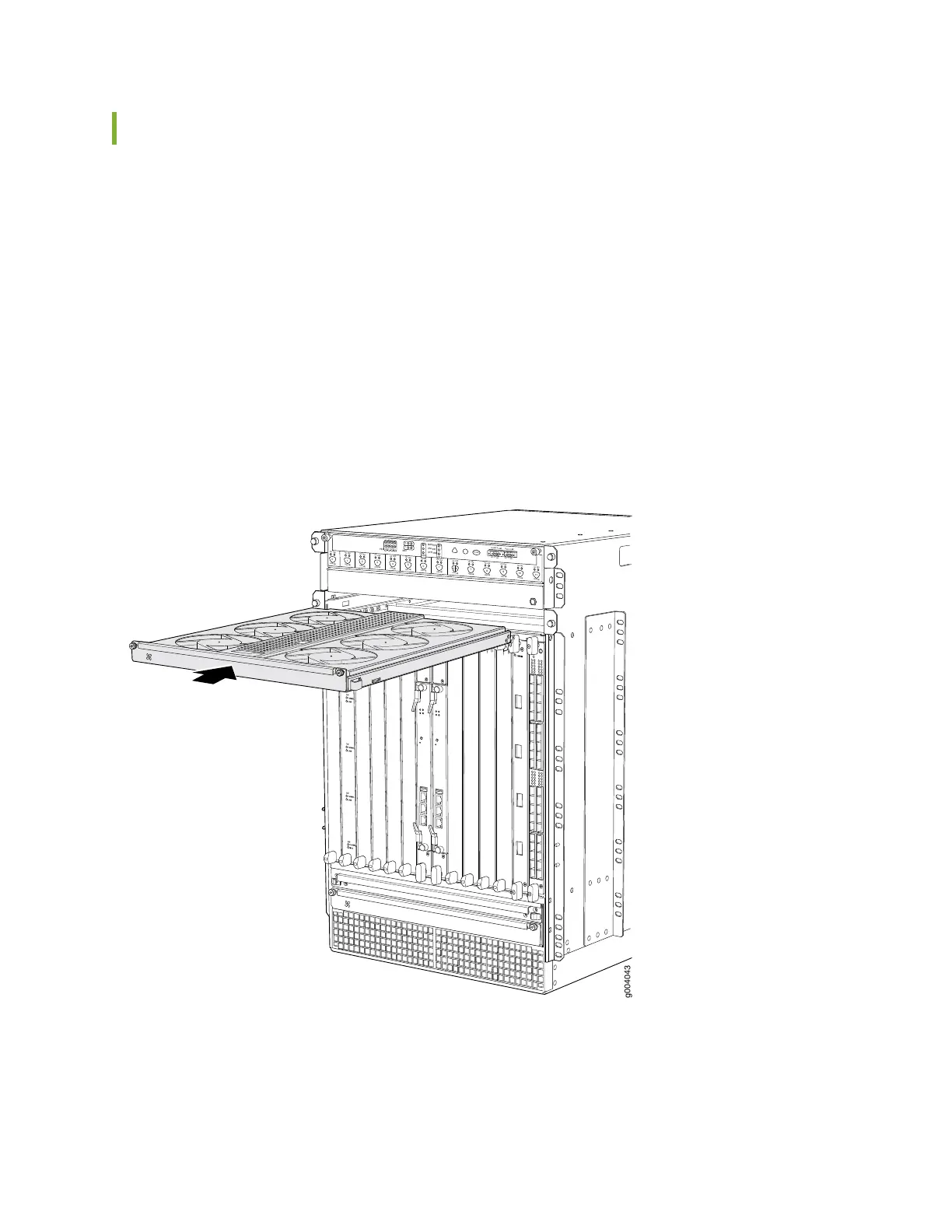

Figure 135: Installing an Upper Fan Tray
