Juniper MX960 - Installing an MX960 Routing Engine

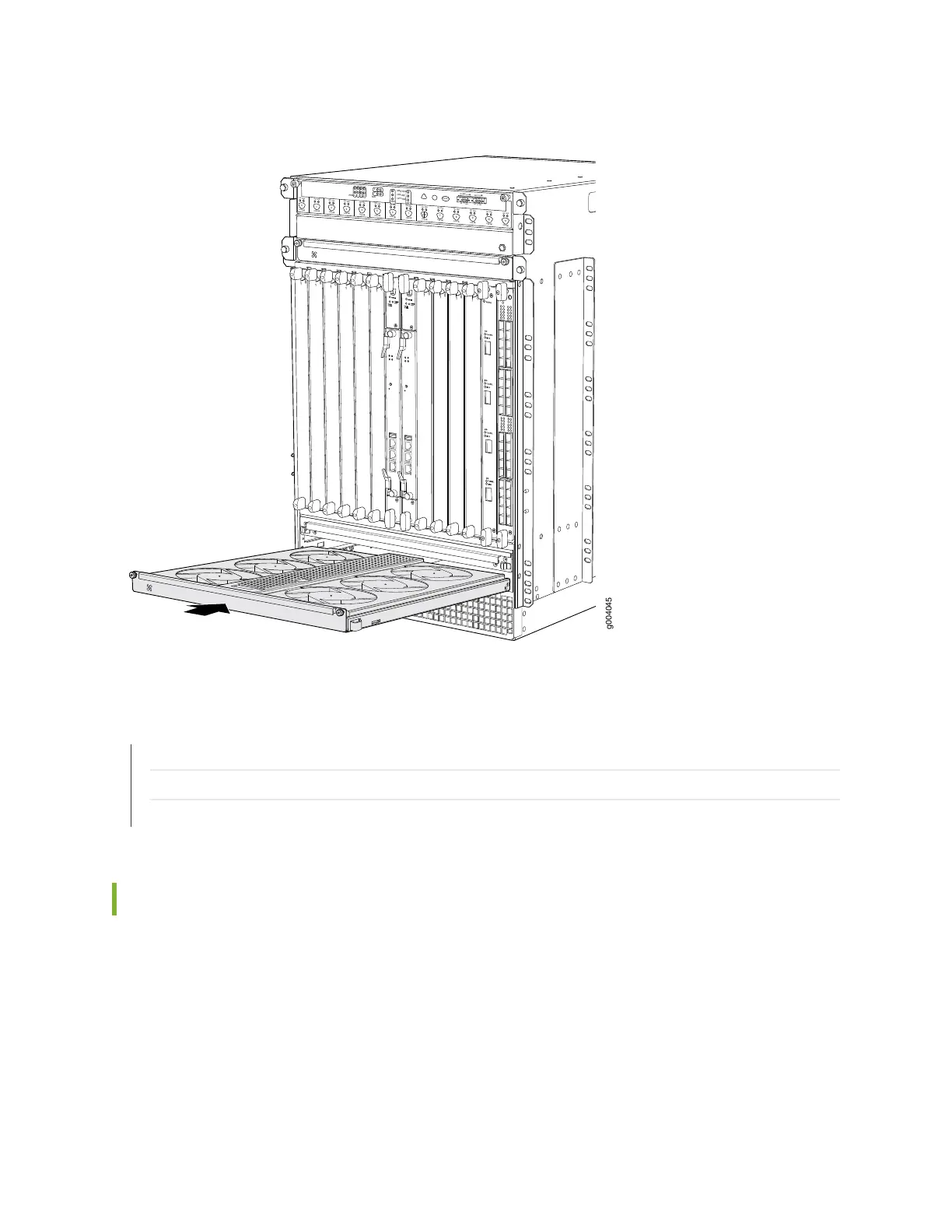

Figure 136: Installing a Lower Fan Tray
OK
0
F
AIL
ONLINE
OK
1
F
AIL
ONLINE
OK
2
F
AIL
ONLINE
OK
3
F
AIL
ONLINE
OK
4
F
AIL
ONLINE
OK
5
F
AIL
ONLINE
OK
0
F
AIL
ONLINE
MASTER
ONLINE
OFFLINE
RE0
F
AN
PEM
1
0
0
1
2
3
RE1
OK
1
F
AIL
ONLINE
OK
7
F
AIL
ONLINE
OK
8
F
AIL
ONLINE
OK
9
F
AIL
ONLINE
OK
10
F
AIL
ONLINE
OK
1
1
F
AIL
ONLINE
OK
2
6
F
AIL
ONLINE
ACO/L
T
YELLO
W ALARM
RED ALARM
NC
NO
C
NC
NO
C
1
0
1
0
1
0
1
0
1
0
1
1
0
0
1
0
1
0
1
0
g004045
RELATED DOCUMENTATION
Preventing Electrostatic Discharge Damage to an MX960 Router
Removing an MX960 Fan Tray | 456
Maintaining the MX960 Fan Trays | 592
Installing an MX960 Routing Engine
To install a Routing Engine into an SCB (Figure 137 on page 387):
1. Ensure that the ejector handles are not in the locked position. If necessary, flip the ejector handles
outward.
2. Place one hand underneath the Routing Engine to support it.
385
