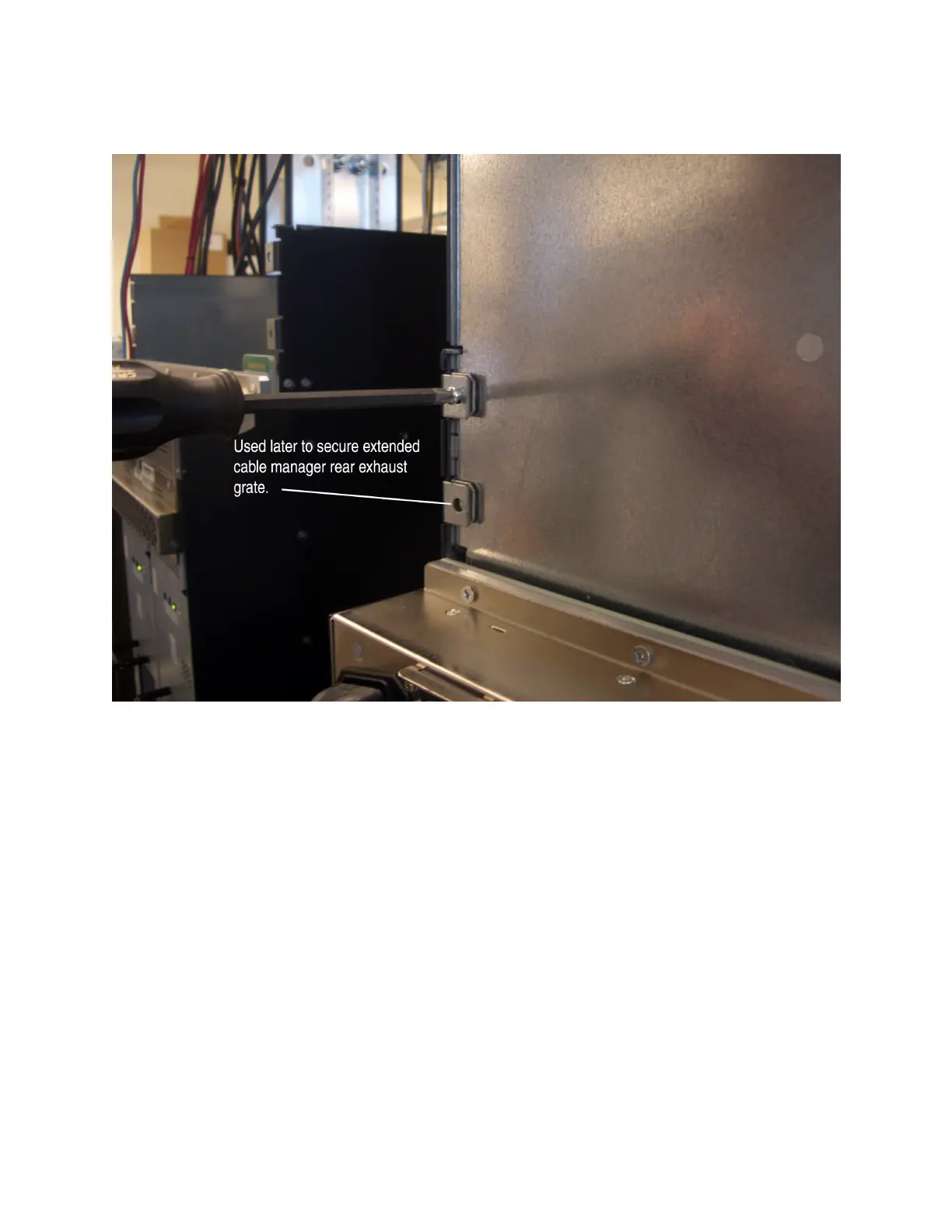

Figure 95: Tightening the Left 8-32 Screw for the Extended Cable Manager Top Hat
Installing the New Rear Air Exhaust Grate
To install the new rear air exhaust grate, follow this procedure:
1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to
one of the ESD points on the chassis.
2. Lift the grate into place at the top rear of the chassis. The sides and the top of the grate should be flush
with the sides and top of the chassis (see Figure 96 on page 310).
