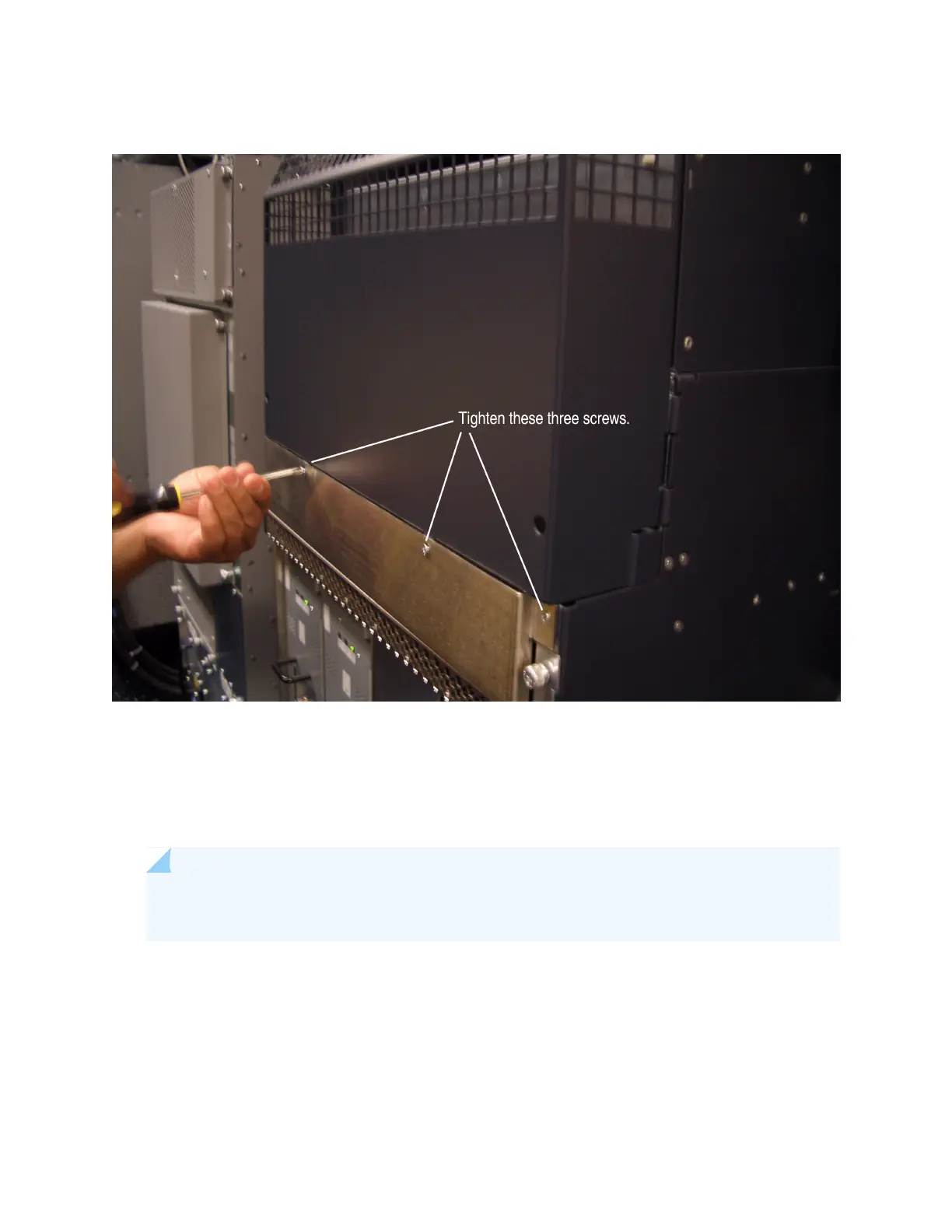

Figure 99: Removing the AC Power Inlet Cover
4. Fully tighten each of the three screws.
Reinstalling the Upper Fan Tray
To reinstall the upper fan tray, follow this procedure (see Figure 100 on page 314):
NOTE: Figure 100 on page 314 does not show the extended cable manager and shows the craft
interface installed in the chassis. You have not yet installed the craft interface.
1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to
one of the ESD points on the chassis.
2. Grasp the fan tray on each side and insert it straight into the chassis. Note the correct orientation by
the "this side up" label on the top surface of the fan tray.
