Juniper MX960 - Reinstalling the Standard Cable Manager after Installing an MX960 Router with a Lift

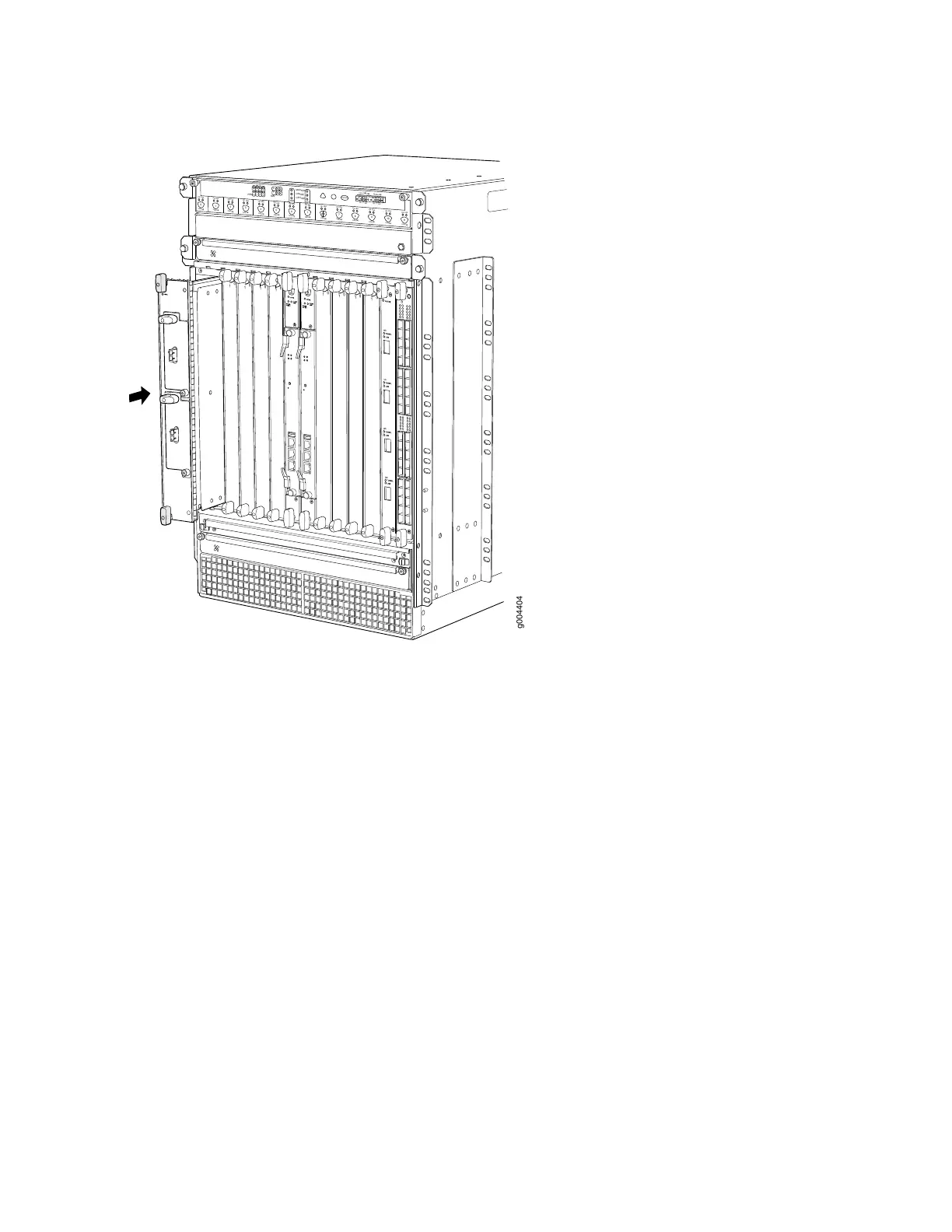

Figure 111: Reinstalling an FPC
OK
0
F
AI
L
ONLINE
O
K
1
F
AIL
ONLIN
E
OK
2
F
AI
L
ONLIN
E
OK
3
F
AI
L
ONLINE
OK
4
F
AI
L
ONLIN
E
OK
5
F
AI
L
ONLIN
E
OK
0
F
AIL
ONLINE
MASTER
ONLINE
OFFLINE
RE0
F
AN
PEM
1
0
0
1
2
3
RE1
OK
1
F
AI
L
ONLINE
O
K
7
F
AI
L
ONLINE
OK
8
F
AI
L
ONLINE
O
K
9
F
AIL
ONLIN
E
OK
10
F
AI
L
ONLINE
OK
1
1
F
AIL
ONLINE
O
K
2
6
F
AI
L
ONLINE
ACO/L
T
YELLOW
ALAR
M
RED
ALARM
NC
NO
C
NC
NO
C
1
0
1
0
1
0
1
0
1
0
1
1
0
0
1
0
g004404
Reinstalling the Standard Cable Manager After Installing an MX960 Router with a Lift
To reinstall the standard cable manager (see Figure 112 on page 331):
1. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other
end of the strap to the ESD point on the chassis.
2. Position the cable manager on the studs on the lower front of the chassis.
3. Insert the nuts on the corners in the cable manager onto the studs on the chassis.
4. Using a 7/16-in. (11 mm) nut driver, tighten the nuts securely.
330
