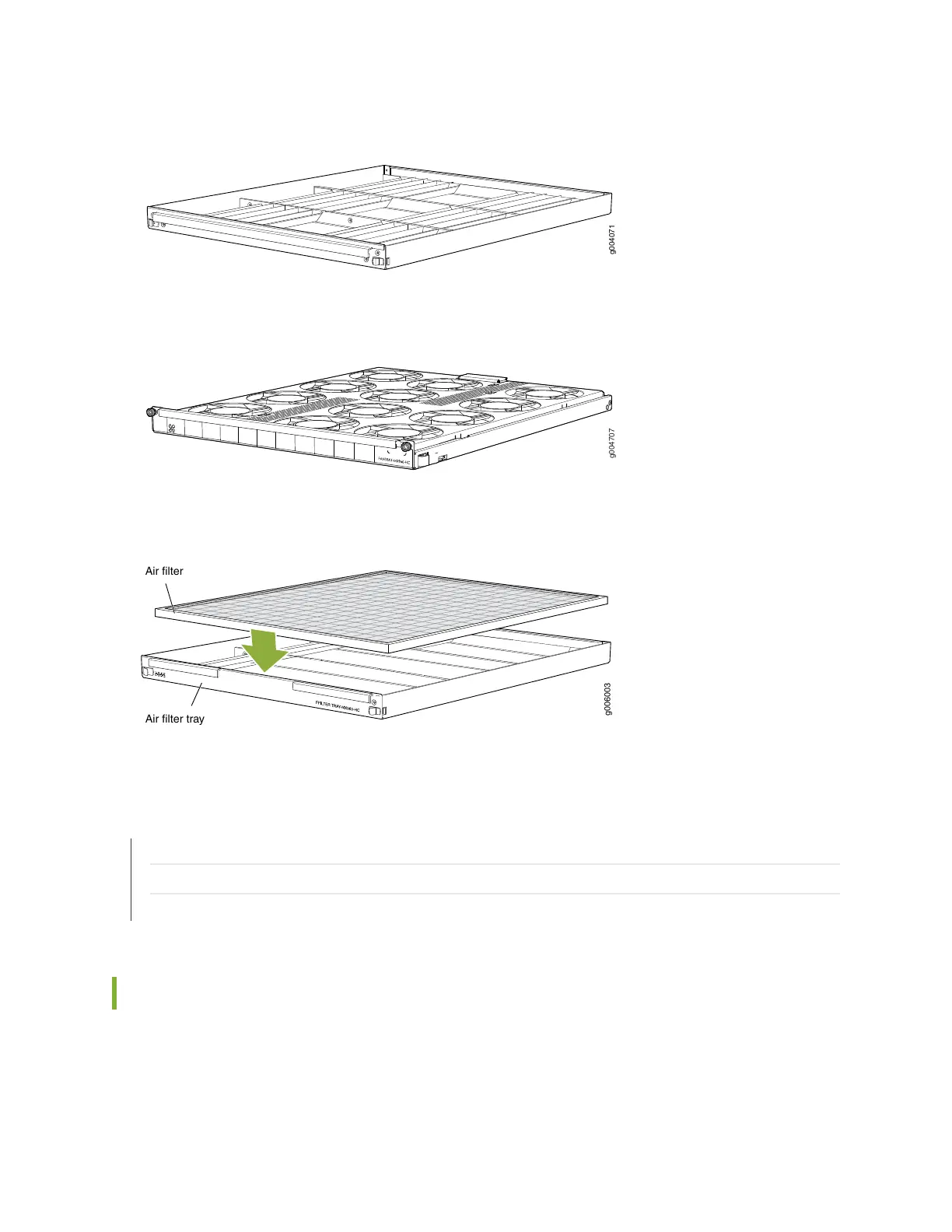

Figure 15: Normal Air Filter Tray
Figure 16: High-Capacity Fan Tray
Figure 17: High-Capacity Filter Tray with Air Filter
g006003
Air filter
Air filter tray
RELATED DOCUMENTATION
Troubleshooting the MX960 Cooling System | 656
Maintaining the MX960 Air Filter | 592
Maintaining the MX960 Fan Trays | 592
MX960 Fan LED
Each fan has an LED that displays its status. The fan LEDs are located on the top left of the craft interface.
For more information, see “MX960 Fan LEDs on the Craft Interface” on page 22.
