Juniper MX960 - Installing an MX960 as MXC

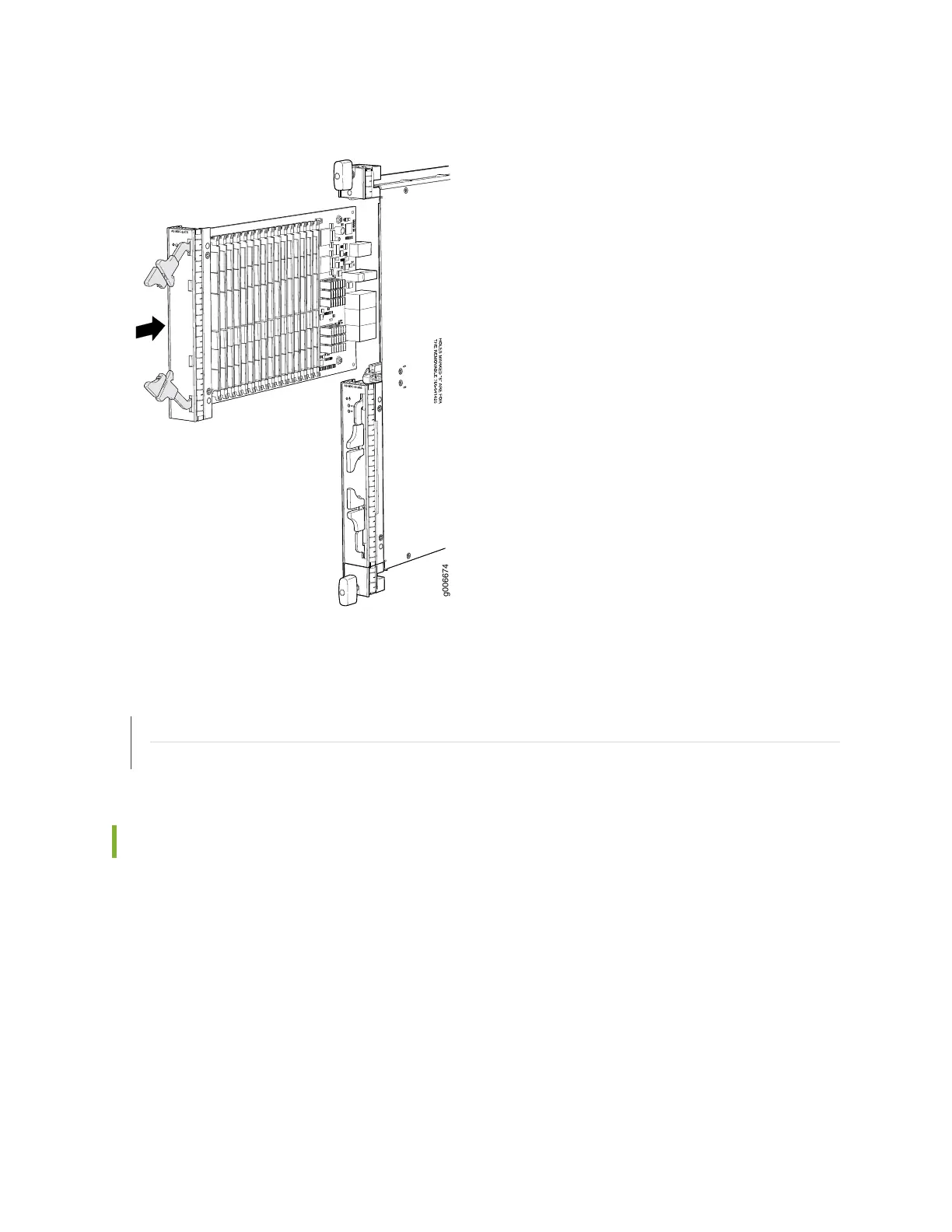

Figure 154: Installing an AS MSC
g006674
RELATED DOCUMENTATION
MX960 Application Services Modular Storage Card Description | 86
Removing an MX960 AS MSC | 446
Installing an MX960 AS MXC
To install an AS MXC (see Figure 155 on page 424):
1. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other
end of the strap to the ESD point on the chassis.
2. Align the notches in the connector at the rear of the AS MXC with the notches in the AS MXC slot (slot
1—the bottom slot in the AS MLC), and then slide the AS MXC in until it lodges firmly in the AS MLC.
423
