4. Plug the terminal block into the relay contact, and use a 2.5-mm flat-blade screwdriver to tighten the
screws on the face of the block.
5. Attach the other end of the wires to the external device.

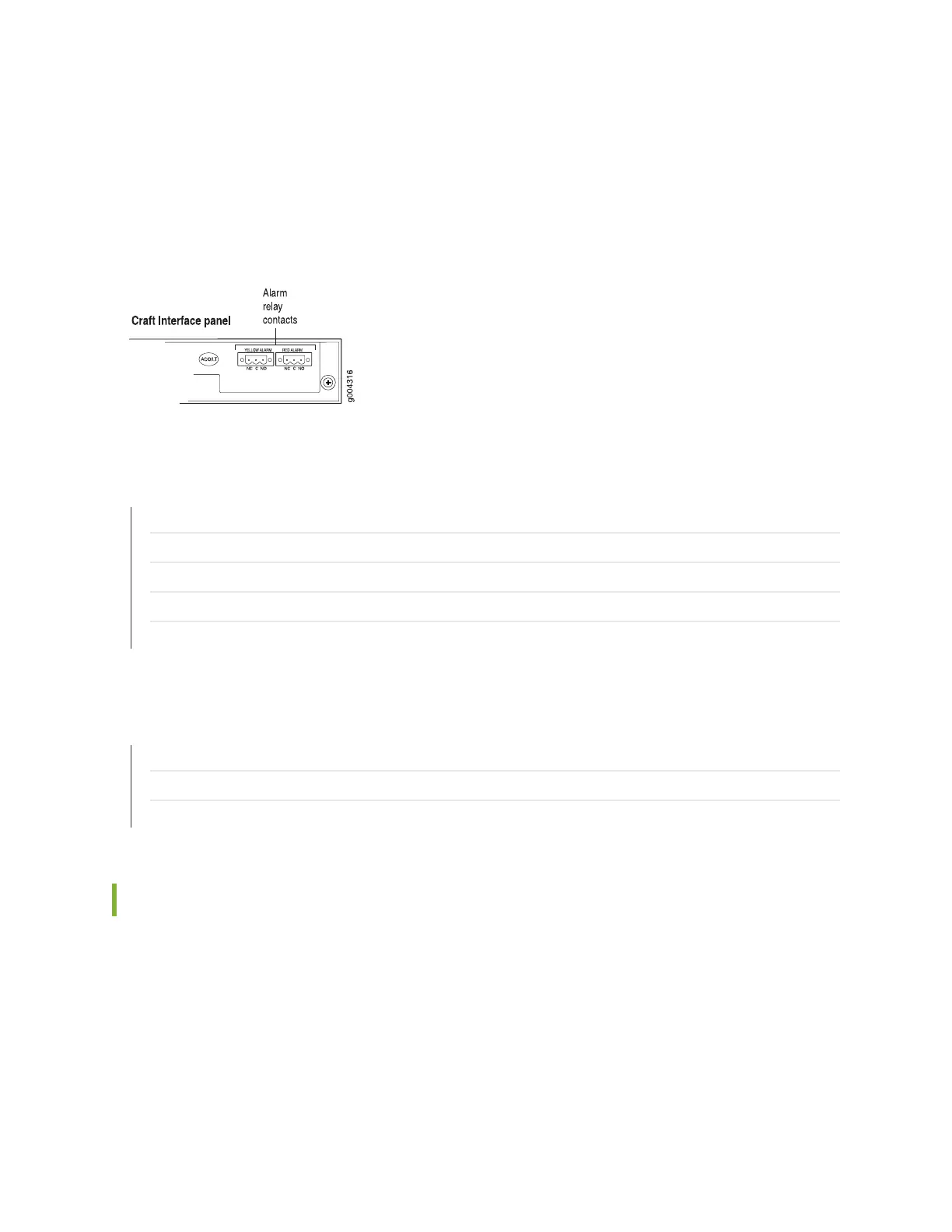

Figure 160: Alarm Relay Contacts
SEE ALSO
Preventing Electrostatic Discharge Damage to an MX960 Router
Disconnecting the Alarm Relay Wires from the MX960 Craft Interface | 433
Removing the MX960 Craft Interface | 434
Installing the MX960 Craft Interface | 382
MX960 Craft Interface Overview | 17
RELATED DOCUMENTATION
Preventing Electrostatic Discharge Damage to an MX960 Router
MX960 Craft Interface Overview | 17
MX960 Craft Interface Serial Number Label | 682
Replacing the MX960 Cable Manager
To remove the standard cable manager (see Figure 161 on page 438):
1. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other
end of the strap to the ESD point on the chassis.
2. Using a 7/16-in. (11 mm) nut driver, unscrew the nuts on the corners of the standard cable manager.
