Replacing an SSD Drive on an RE-S-1800
Each RE-S-1800 Routing Engine supports two solid-state drives (SSD) specified by Juniper Networks. The
RE-S-1800 ships with one SSD installed in the slot labeled SATA SSD 1. The spare SSD is Juniper part
number SSD-32G-RE-S. Figure 179 on page 466 shows the arrangement of storage drive slots on a RE-S-1800
Routing Engine.

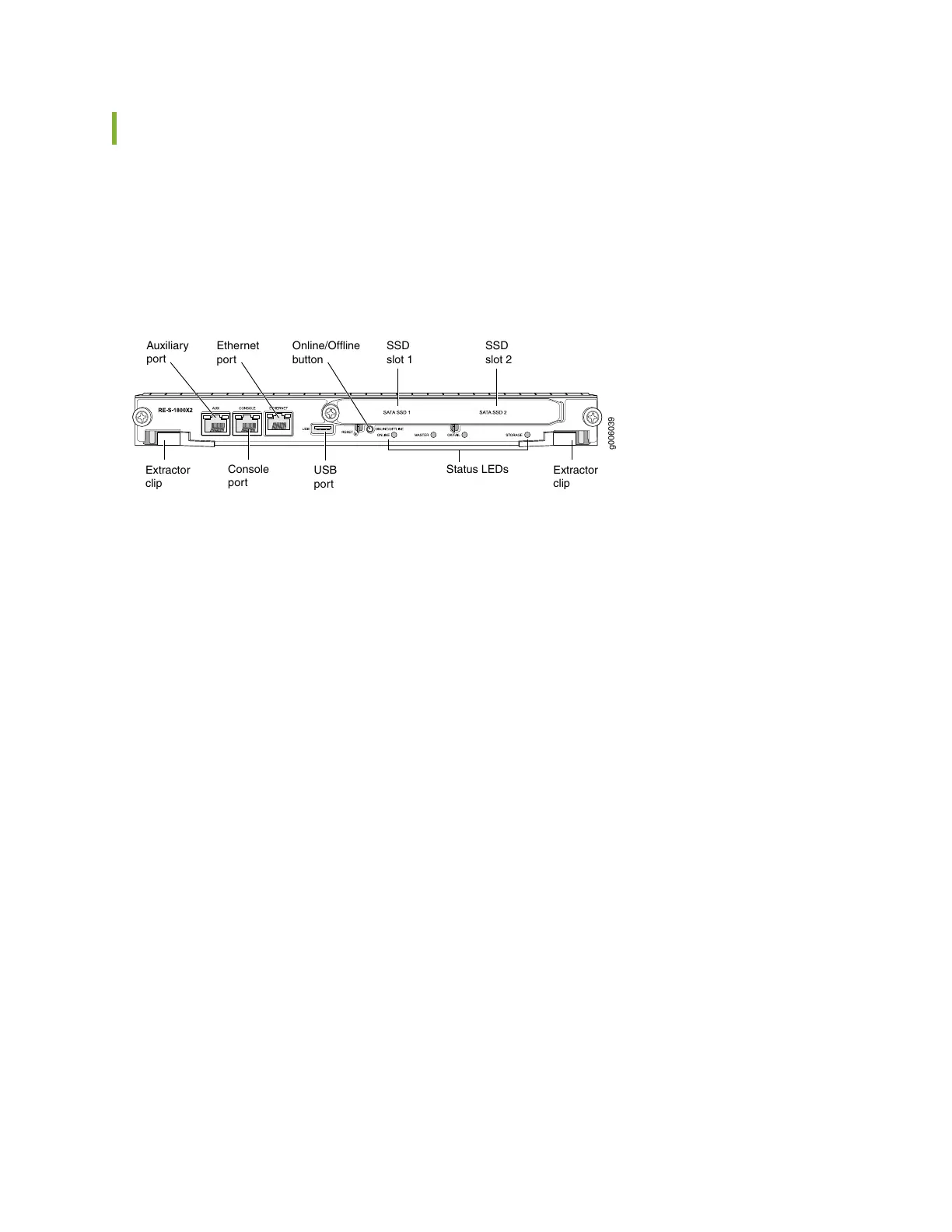

Figure 179: RE-S-1800 Storage Drive Slots
USB
port
Status LEDs
SSD
slot 2
SSD
slot 1
Online/Offline
button
Extractor
clip
Extractor
clip
g006039
Console
port
Auxiliary
port
Ethernet
port
The following drive has been verified to work in the RE-S-1800 Routing Engine:
•
SSD-32G-RE-S
To replace a storage drive:
1. Disable and deactivate the storage drive.
466
