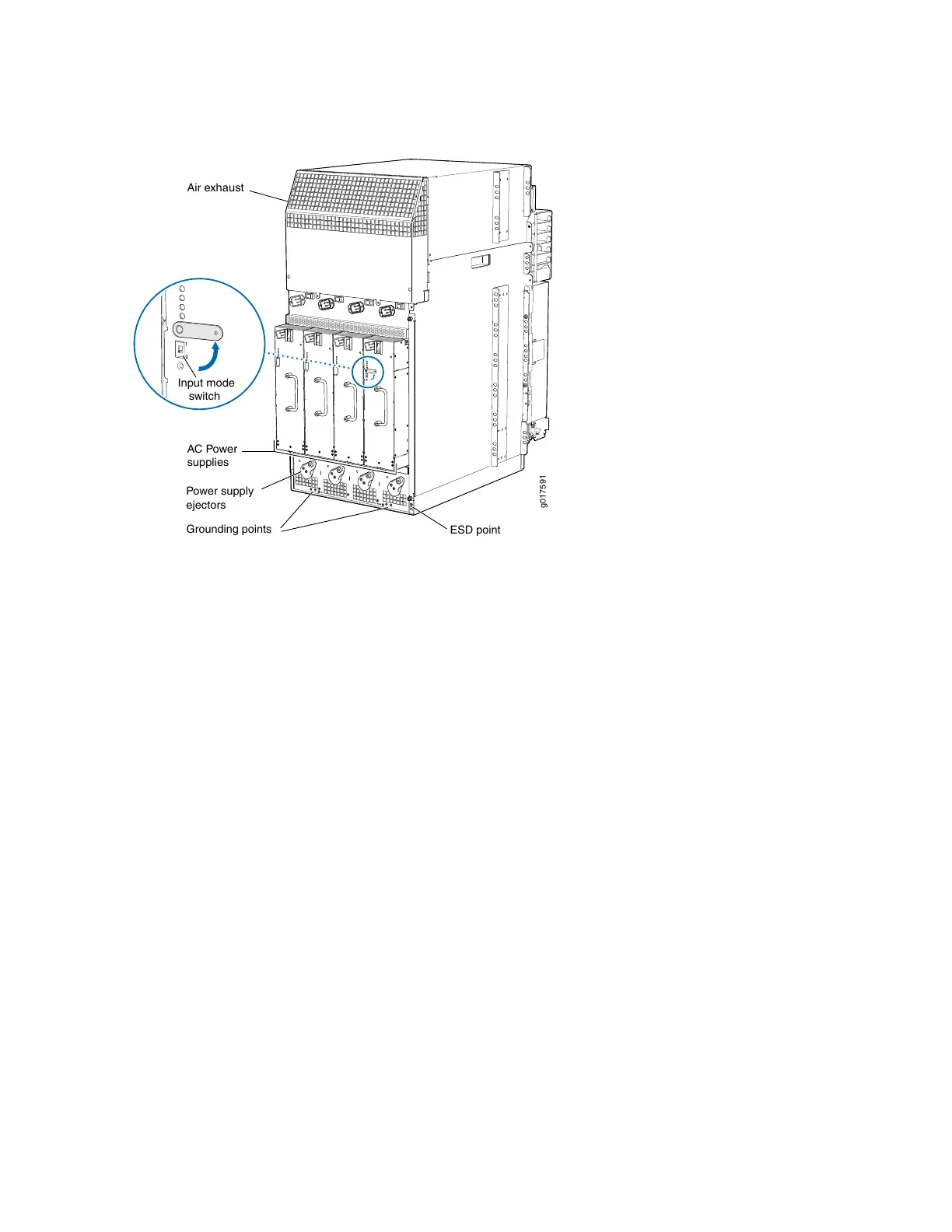

Figure 114: MX960 with High-Capacity AC Power Supplies Installed
g017591
Grounding points
ESD point
Power supply
ejectors
AC Power
supplies
Air exhaust
Input mode
switch
If necessary, pull the spring-loaded locking pin in the release lever away from the chassis and turn the
release lever counterclockwise until it stops. Let go of the locking pin in the release lever. Ensure that
the pin is seated inside the corresponding hole in the chassis.
3. On the power supply, rotate the metal cover away from the input mode switch to expose the switch.
4. Move the input mode switch to position 0 if you plan to connect one feed, or position 1 if you plan to
connect two feeds (see Figure 115 on page 339).
338
